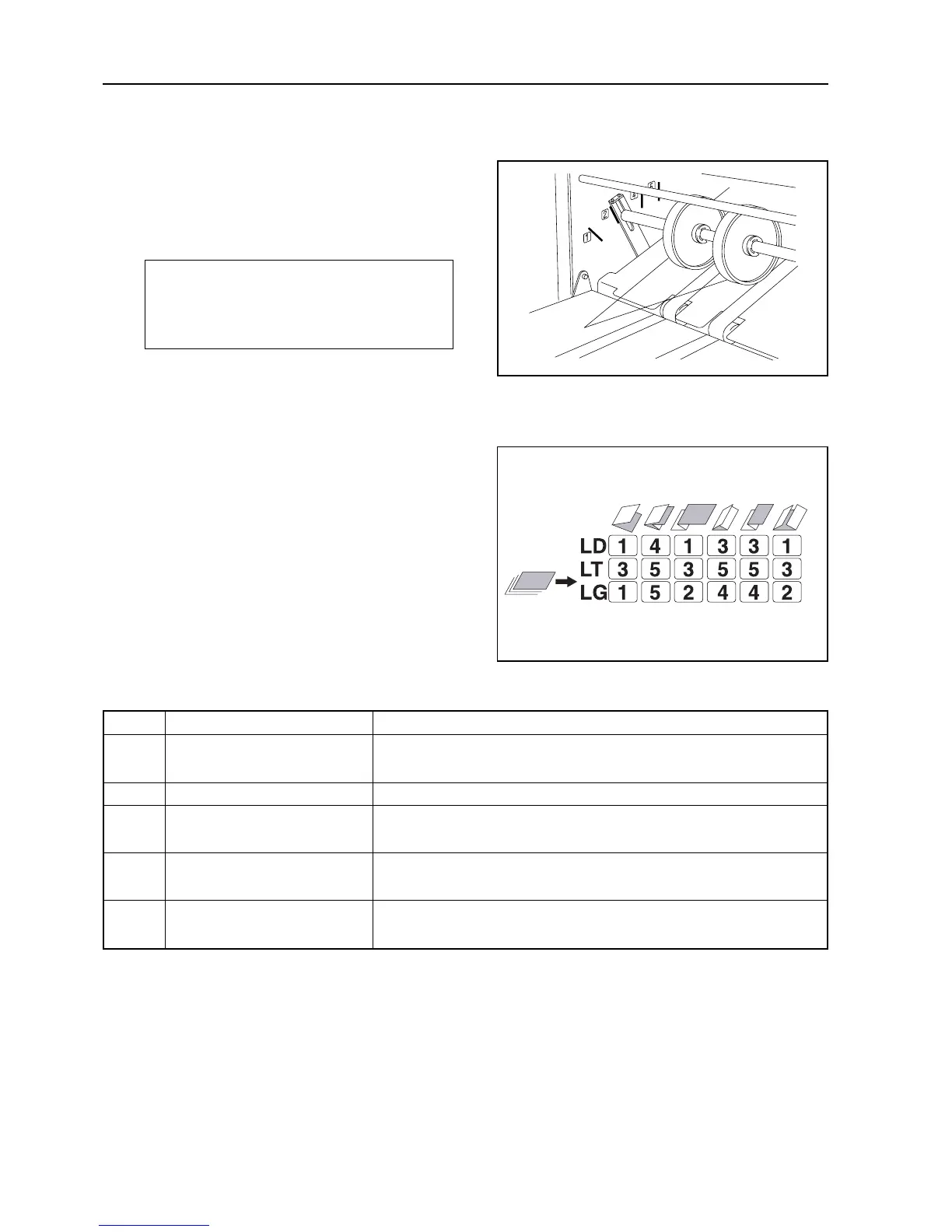

7 Set the position of the stacker rollers.
• Referring to the table of stacker roller positions,
position the stacker rollers.
As the figures in this table of stacker roller
positions are approximations, select the best
position taking into consideration the folding
speed and paper quality.
7. OPERATION PROCEDURES
Table of Stacker Rollers Positions
Length of Paper Fold
7 — 8-1/2 inch
6 — 7 inch
5 — 6 inch
4 — 5 inch
1-5/8 — 4 inch
Folding Mode
LD : Single Fold, Irregular Accordion Fold, Brochure Fold
Single fold of paper bigger than LD.
LG : Irregular Accordion Fold, Brochure Fold
LT : Single Fold, Irregular Accordion Fold, Brochure Fold
LD : Letter Fold, Accordion Fold
LG : Letter Fold, Accordion Fold
LD : Double Fold
LT : Double Fold, Letter Fold, Accordion Fold
LG : Double Fold
Number
1
2
3
4
5
Stacker rollers
