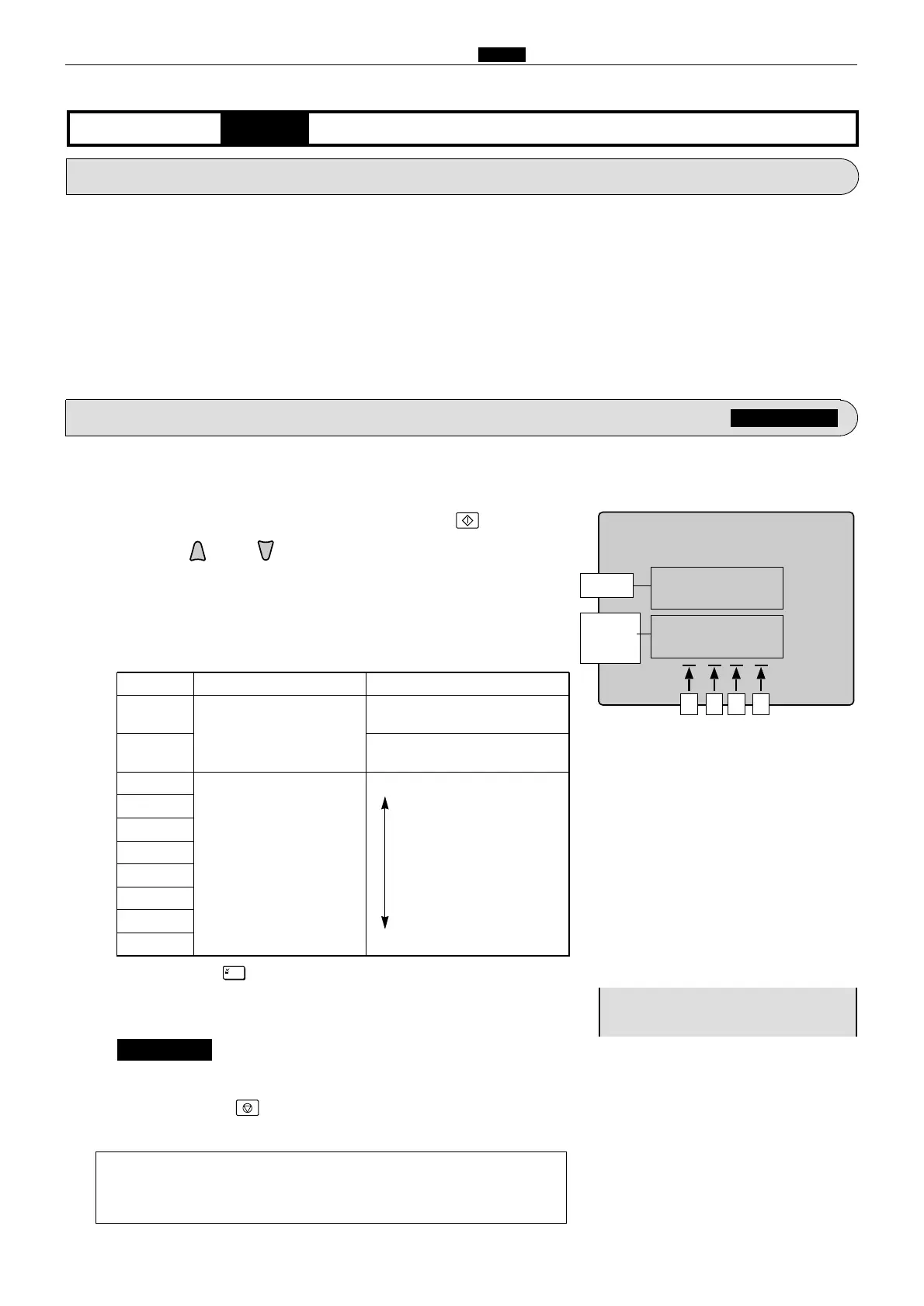

c HELP Mode Function and Operation Procedures
chap.7
ABCD Item Setting
0***
Sign flag
Moves toward you by the set
amount of the lower 3 digits.
1***
Moves backward by the set
amount of the lower 3 digits.
*000
Set amount
Standard (initial value)
Maximum
*001
*010
*011
*100
*101
***1
*111
rPress the [=] key.
The correction amount will be memorized in the battery PCB unit's
EEPROM. During memorization,"SAVE" will be displayed.
Do not turn off the power before the "SAVE" display has disappeared.
1. Functions
(1) Widthwise master-making start position (Online) setting
(Online) [ Parallel / Inter face kit
22
]
H-53
(1) Adjustment / specification settingHELP mode
¡During memorization:
IMPORTANT :
2. Operation procedure
Accessing HELP modes
a See page 213
qAccess HELP mode H-53, and press the PRINT key.
HELP-053
Adjustment
1111
1:
1111
2:
eUse the [0] and [1] numeric keys to enter a 4-place binary
value for the desired correction amount.
See the table below for 4-place binary values and the corresponding
correction amounts.
a To exit the HELP mode : Turn the power switch OFF.
a To access another HELP mode : Enter the desired mode number
using the numeric keys.
tPress the STOP key.
The HELP mode selection display will reappear.
- SAVE -
(1) Widthwise master-making start position (Online) setting
[ Parallel / Inter face kit
22
]
¡ Following items are indicated.
1. Widthwise master-making start position setting(Parallel)
2. Widthwise master-making start position setting(Inter face kit
22
)
wPress the and/or key to select item.
A B C D
Parallel
Inter face
kit
22
