Corner knives

104 Service Instructions 745-35-10 S/745-35-10 A - 02.0 - 04/2017

Correction of the corner incision at the seam end

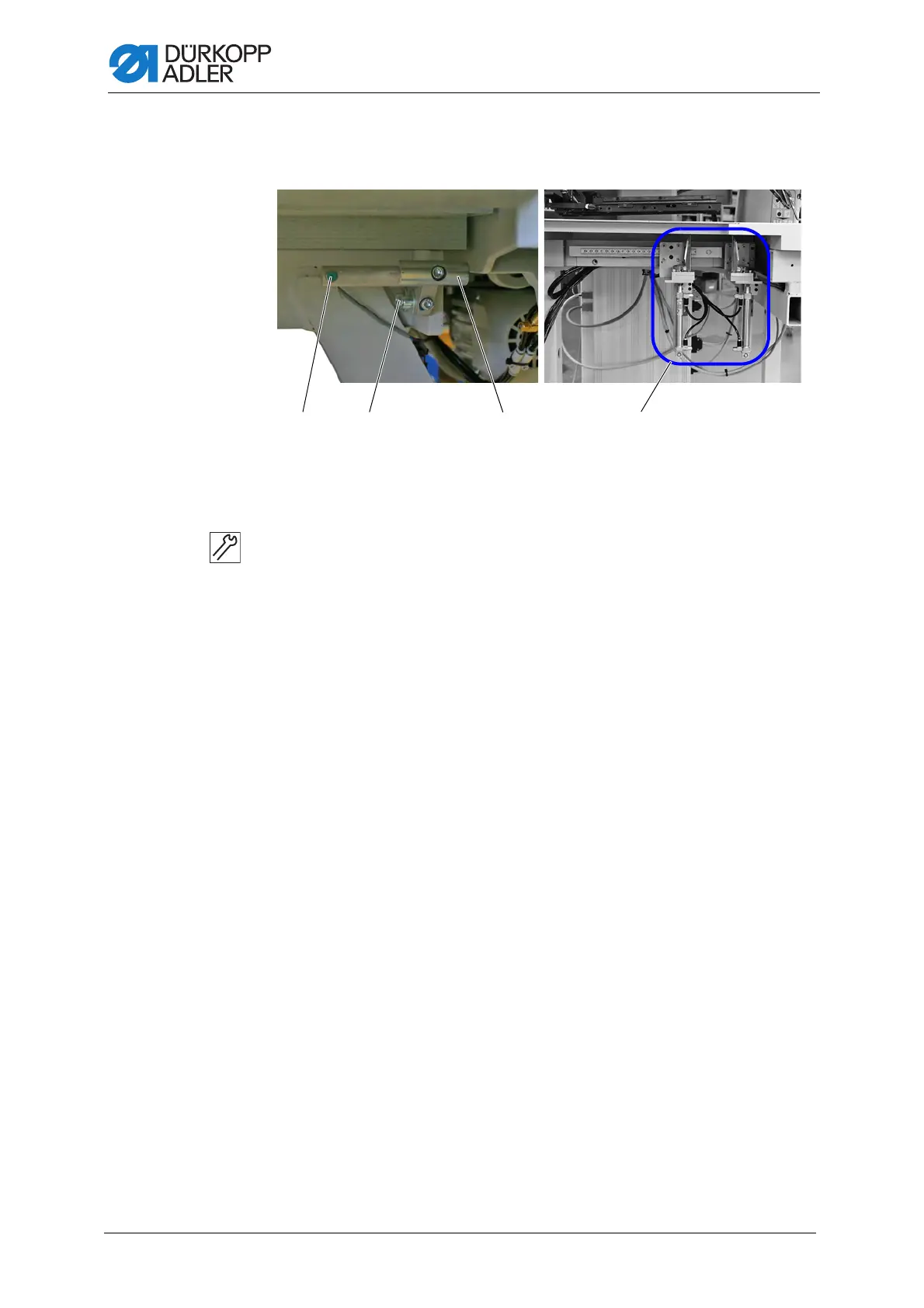

Fig. 87: Aligning the corner knife station with the seams (2)

To correct the corner incision at the seam end:

1. Swing the corner knife station (4) out completely.

2. Loosen the screws (1).

3. Shift the holder (3).

4. Tighten the screws (1).

5. Swivel the corner knife station back.

6. Correct the distance of the switch (2).

(1) - Switch

(2) - Screw

(3) - Holder

(4) - Corner knife station
