Corner knives

Service Instructions 745-35-10 S/745-35-10 A - 02.0 - 04/2017 105

Correction of the corner incision at the seam beginning

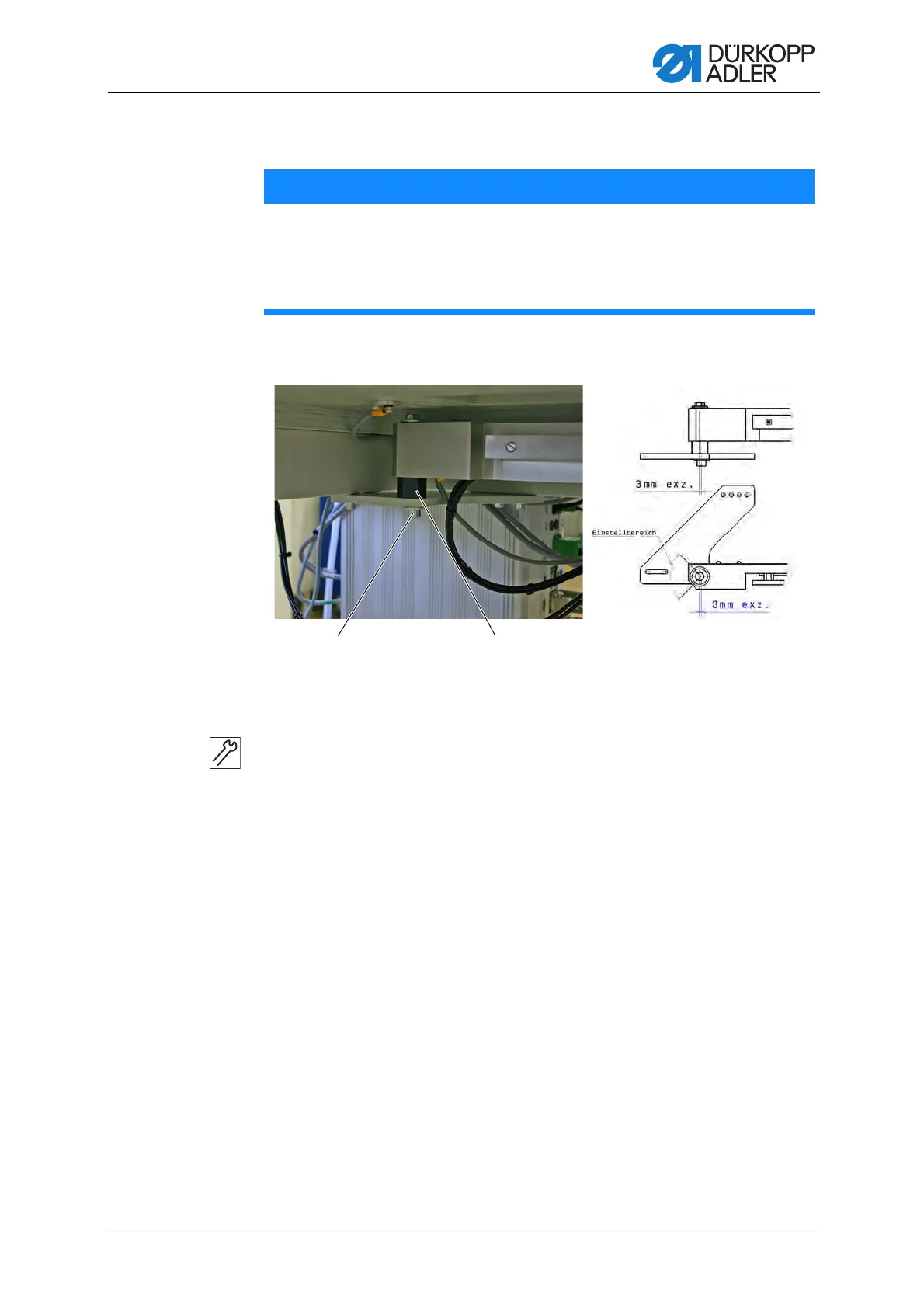

Fig. 88: Aligning the corner knife station with the seams (3)

To correct the corner incision at the seam beginning:

1. Loosen the screw (5).

2. Adjust the corner knife station with the eccentric (6).

3. Tighten the screw (5).

4. Sew a test seam.

5. Check seam and cutting pattern.

NOTICE

Property damage may occur!

The corner knives plunge into the fabric sliding plate and become

damaged.

Pay attention to the position of the eccentric.

(5) - Screw (6) - Eccentric

⑤⑥
