DURKOPP ADLER 827 User Manual

6.8 Connecting the sewing light transformer (optional equipment)
6.8.1 Attaching and connecting the sewing light transformer (optional equipment)
–
Remove the machine’s mains plug.
–

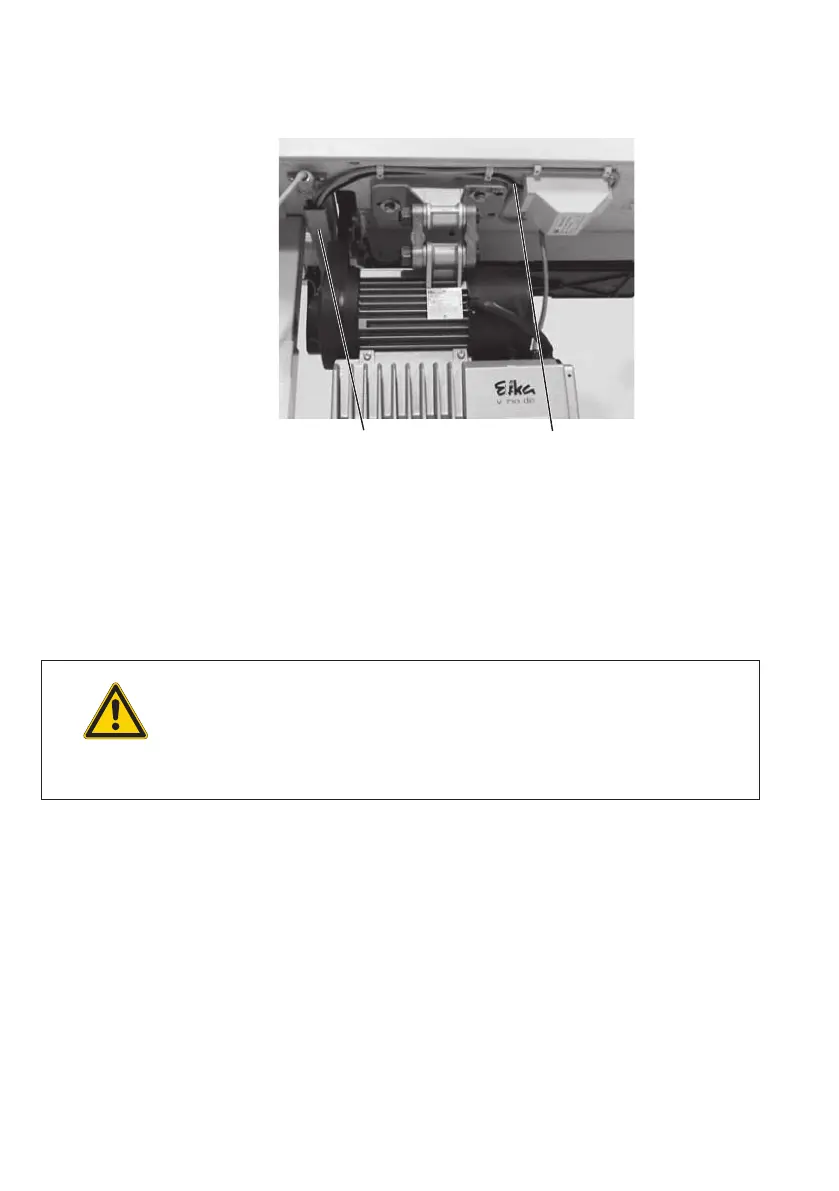

Pass the mains cable 1 of the sewing-lamp transformer through
the cable conduit 2 to the main switch.
–
It is connected to the mains-connection side of the main switch (or
motor-protection switch). See connection diagram 9800 169002 B,
9800 129002 B or 9800 139001 B.
–
Stick the adhesive label with the safety instruction on the front of
the main switch .
–
If the sewing-lamp transformer is connected to a 3 x 380 - 415V
three-phase supply it must have a neutral conductor.
Caution !
The sewing-light transformer is directly connected to the mains.
It is therefore live even when the main switch is switched off.
The mains plug must be removed before carrying out any work
on the sewing-light transformer, e.g. changing the fuse.
18
21
6.8 Connecting the sewing light transformer (optional equipment)
6.8.1 Attaching and connecting the sewing light transformer (optional equipment)
–
Remove the machine’s mains plug.
–
Pass the mains cable 1 of the sewing-lamp transformer through
the cable conduit 2 to the main switch.
–
It is connected to the mains-connection side of the main switch (or
motor-protection switch). See connection diagram 9800 169002 B,
9800 129002 B or 9800 139001 B.
–
Stick the adhesive label with the safety instruction on the front of
the main switch .
–
If the sewing-lamp transformer is connected to a 3 x 380 - 415V
three-phase supply it must have a neutral conductor.
Caution !
The sewing-light transformer is directly connected to the mains.
It is therefore live even when the main switch is switched off.
The mains plug must be removed before carrying out any work
on the sewing-light transformer, e.g. changing the fuse.
18
21
6.8 Connecting the sewing light transformer (optional equipment)
6.8.1 Attaching and connecting the sewing light transformer (optional equipment)
–
Remove the machine’s mains plug.
–
Pass the mains cable 1 of the sewing-lamp transformer through
the cable conduit 2 to the main switch.
–
It is connected to the mains-connection side of the main switch (or
motor-protection switch). See connection diagram 9800 169002 B,
9800 129002 B or 9800 139001 B.
–
Stick the adhesive label with the safety instruction on the front of
the main switch .
–
If the sewing-lamp transformer is connected to a 3 x 380 - 415V
three-phase supply it must have a neutral conductor.
Caution !
The sewing-light transformer is directly connected to the mains.
It is therefore live even when the main switch is switched off.
The mains plug must be removed before carrying out any work
on the sewing-light transformer, e.g. changing the fuse.
18
21
6.8 Connecting the sewing light transformer (optional equipment)
6.8.1 Attaching and connecting the sewing light transformer (optional equipment)
–
Remove the machine’s mains plug.
–
Pass the mains cable 1 of the sewing-lamp transformer through
the cable conduit 2 to the main switch.
–
It is connected to the mains-connection side of the main switch (or
motor-protection switch). See connection diagram 9800 169002 B,
9800 129002 B or 9800 139001 B.
–
Stick the adhesive label with the safety instruction on the front of
the main switch .
–
If the sewing-lamp transformer is connected to a 3 x 380 - 415V
three-phase supply it must have a neutral conductor.
Caution !
The sewing-light transformer is directly connected to the mains.
It is therefore live even when the main switch is switched off.
The mains plug must be removed before carrying out any work
on the sewing-light transformer, e.g. changing the fuse.
18
21

DURKOPP ADLER 827 Specifications

General

Brand	DURKOPP ADLER
Model	827
Category	Sewing Machine
Language	English
