6.9 Connecting the direct drive
6.9.1 Connecting the Hall-effect sensor (Optional Equipment)
Only with DC 1550 drive:
·
Motor mounted under the table
·
Gear reduction motor - machine 1,55:1
Attention !
Tur n off the main switch.
Connect the Hall-effect sensor with the sewing machine switched off.
–

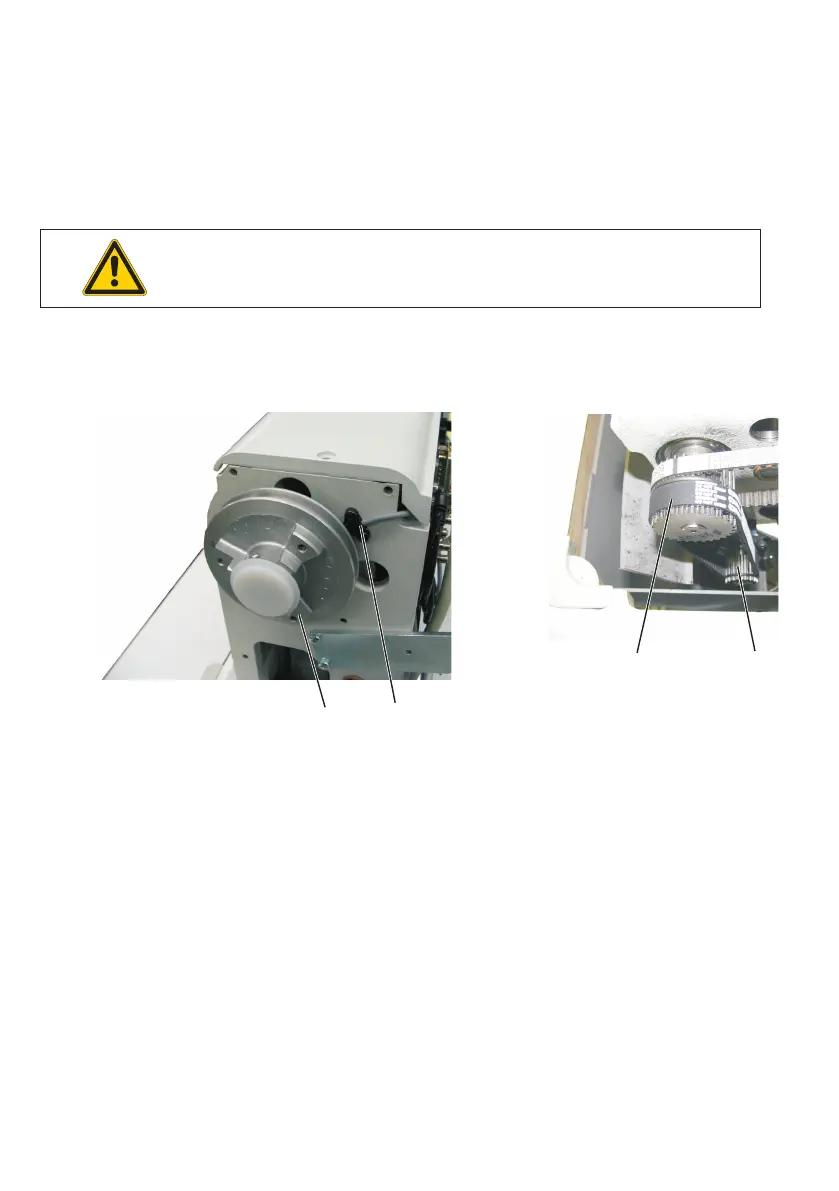

Fit the Hall-effect sensor 1 onto the machine head.
–
Check whether a magnet is fitted into the belt pulley 2 of the
machine. The magnet is positioned on the inner side of the belt
pulley towards the machine.
–
If no magnet is fitted into the belt pulley 2, it must be exchanged.
If the belt pulley is fitted correctly, the magnet must be positioned
above the Hall-effect sensor, when the tip of the needle penetrates
into the throat plate.
20
21
43
6.9 Connecting the direct drive
6.9.1 Connecting the Hall-effect sensor (Optional Equipment)
Only with DC 1550 drive:
·
Motor mounted under the table
·
Gear reduction motor - machine 1,55:1
Attention !
Tur n off the main switch.
Connect the Hall-effect sensor with the sewing machine switched off.
–
Fit the Hall-effect sensor 1 onto the machine head.
–
Check whether a magnet is fitted into the belt pulley 2 of the
machine. The magnet is positioned on the inner side of the belt
pulley towards the machine.
–
If no magnet is fitted into the belt pulley 2, it must be exchanged.
If the belt pulley is fitted correctly, the magnet must be positioned
above the Hall-effect sensor, when the tip of the needle penetrates
into the throat plate.
20
21
43
6.9 Connecting the direct drive
6.9.1 Connecting the Hall-effect sensor (Optional Equipment)
Only with DC 1550 drive:
·
Motor mounted under the table
·
Gear reduction motor - machine 1,55:1
Attention !
Tur n off the main switch.
Connect the Hall-effect sensor with the sewing machine switched off.
–
Fit the Hall-effect sensor 1 onto the machine head.
–
Check whether a magnet is fitted into the belt pulley 2 of the
machine. The magnet is positioned on the inner side of the belt
pulley towards the machine.
–
If no magnet is fitted into the belt pulley 2, it must be exchanged.
If the belt pulley is fitted correctly, the magnet must be positioned
above the Hall-effect sensor, when the tip of the needle penetrates
into the throat plate.
20
21
43
6.9 Connecting the direct drive
6.9.1 Connecting the Hall-effect sensor (Optional Equipment)
Only with DC 1550 drive:
·
Motor mounted under the table
·
Gear reduction motor - machine 1,55:1
Attention !
Tur n off the main switch.
Connect the Hall-effect sensor with the sewing machine switched off.
–
Fit the Hall-effect sensor 1 onto the machine head.
–
Check whether a magnet is fitted into the belt pulley 2 of the
machine. The magnet is positioned on the inner side of the belt
pulley towards the machine.
–
If no magnet is fitted into the belt pulley 2, it must be exchanged.
If the belt pulley is fitted correctly, the magnet must be positioned
above the Hall-effect sensor, when the tip of the needle penetrates
into the throat plate.
20
21
43
