6.4 Earthing
The earthing cable 1 is in the machine’s accessory pack.
The earthing cable 1 takes static charges from the machine head to
earth via the motor base.
–

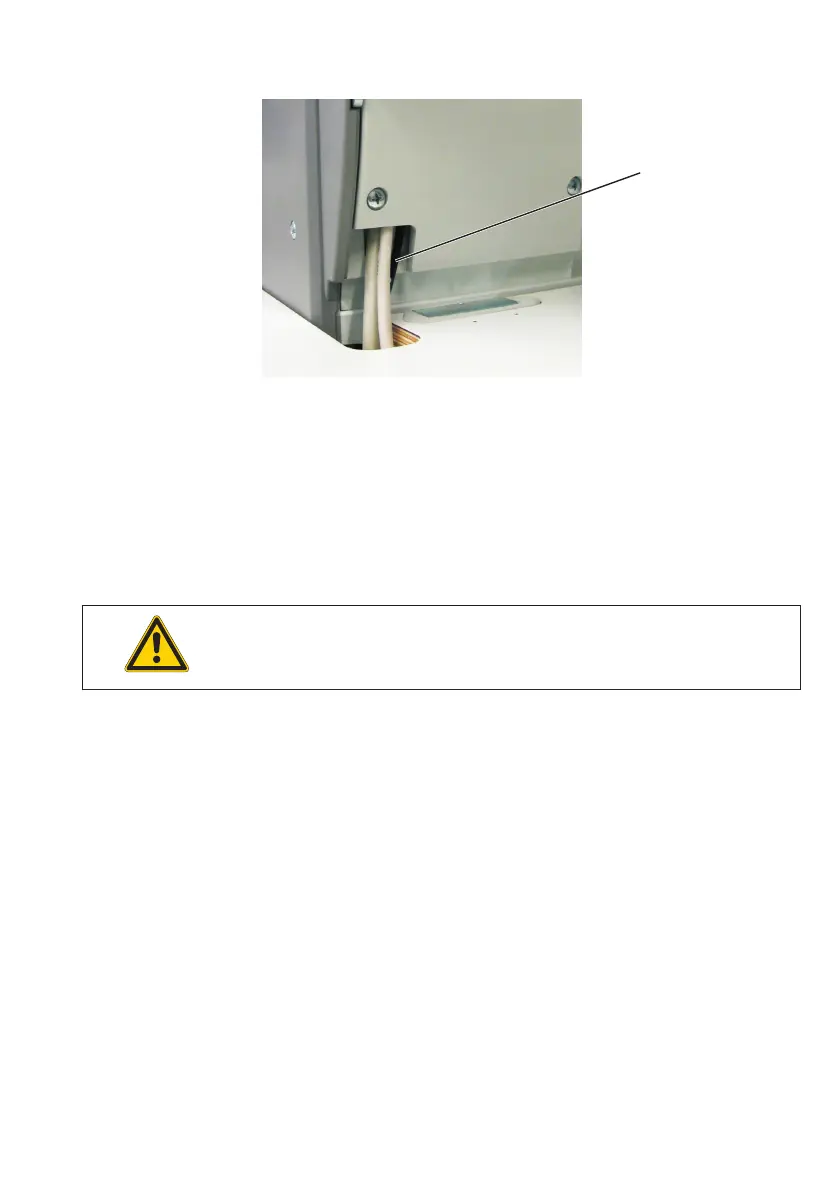

Connect the earthing cable 1 to the flat plug 2 (already screwed on
the machine head) and lay it through the cable duct to the motor
base.
–
Screw the earthing cable 1 onto the motor base at the point
provided.
–
Attach the earthing cable 1 under the table plate with the nail
clamps.
Caution!
Please make sure that the earthing cable 1 does not touch
the drive belt.
Hint
You do not need to care for the earthing with machines having the
sewing motor fit onto the machine head, since it is already established
through the fitted motor.
´ 15
1
