DURKOPP ADLER 827 User Manual

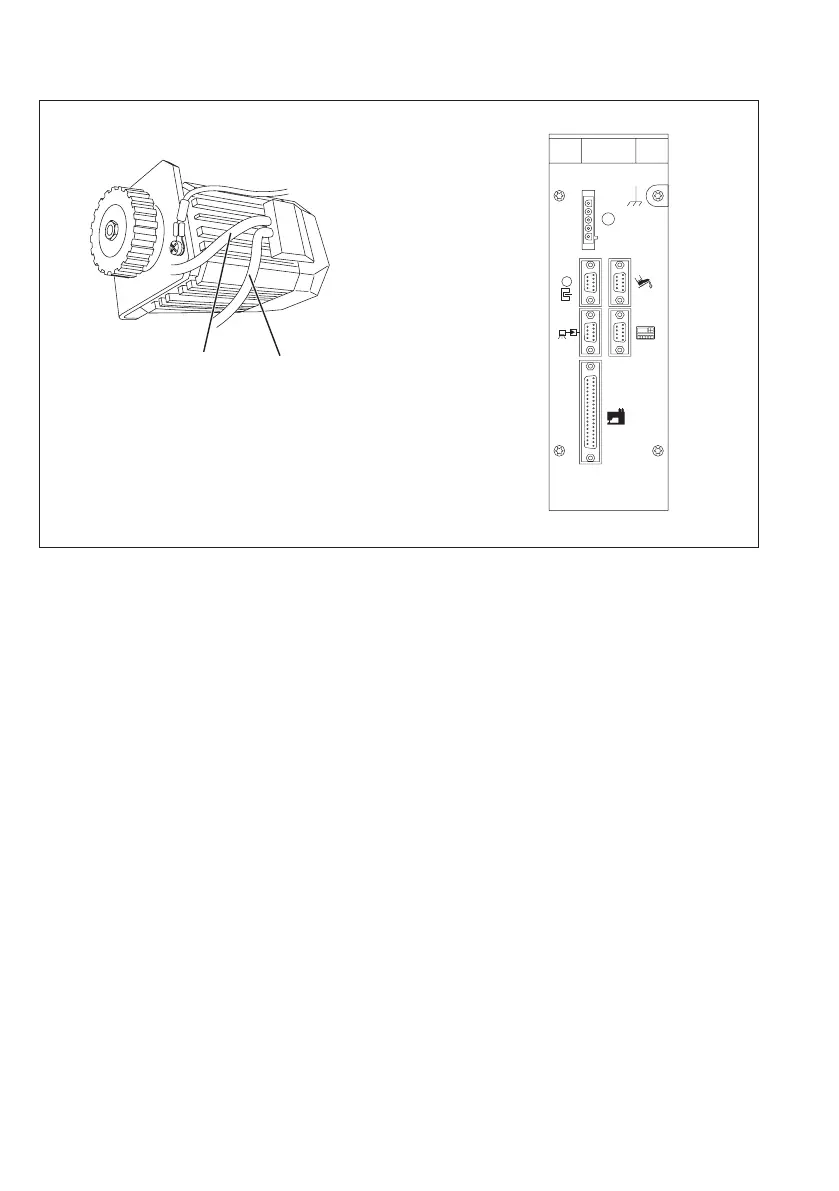

6.9.2 Connecting the DA321G control unit
–
Insert the lead from the controller (pedal) into socket B80 of the
controls.
–
Insert the lead from the motor sensor 1 into socket B2 of the
controls.
–
Insert the lead 2 from the motor into socket B41 of the controls.
–
Insert the lead to the sewing machine into socket A of the
controls.
–
Lay all leads through the cable duct.
–
Insert the lead from the control panel (if present) into socket B776.
6.9.3 Connecting the DAC Classic control unit
Check operating instructions DAC Classic.
22
B 7 7 6
V 8 . .
B 1 8
L S M . . .
B 2
M
B 8 0
E B . . .
B 4 1
M
A
21
6.9.2 Connecting the DA321G control unit
–
Insert the lead from the controller (pedal) into socket B80 of the
controls.
–
Insert the lead from the motor sensor 1 into socket B2 of the
controls.
–
Insert the lead 2 from the motor into socket B41 of the controls.
–
Insert the lead to the sewing machine into socket A of the
controls.
–
Lay all leads through the cable duct.
–
Insert the lead from the control panel (if present) into socket B776.
6.9.3 Connecting the DAC Classic control unit
Check operating instructions DAC Classic.
22
B 7 7 6
V 8 . .
B 1 8
L S M . . .
B 2
M
B 8 0
E B . . .
B 4 1
M
A
21
6.9.2 Connecting the DA321G control unit
–
Insert the lead from the controller (pedal) into socket B80 of the
controls.
–
Insert the lead from the motor sensor 1 into socket B2 of the
controls.
–
Insert the lead 2 from the motor into socket B41 of the controls.
–
Insert the lead to the sewing machine into socket A of the
controls.
–
Lay all leads through the cable duct.
–
Insert the lead from the control panel (if present) into socket B776.
6.9.3 Connecting the DAC Classic control unit
Check operating instructions DAC Classic.
22
B 7 7 6
V 8 . .
B 1 8
L S M . . .
B 2
M
B 8 0
E B . . .
B 4 1
M
A
21
6.9.2 Connecting the DA321G control unit
–
Insert the lead from the controller (pedal) into socket B80 of the
controls.
–
Insert the lead from the motor sensor 1 into socket B2 of the
controls.
–
Insert the lead 2 from the motor into socket B41 of the controls.
–
Insert the lead to the sewing machine into socket A of the
controls.
–
Lay all leads through the cable duct.
–
Insert the lead from the control panel (if present) into socket B776.
6.9.3 Connecting the DAC Classic control unit
Check operating instructions DAC Classic.
22
B 7 7 6
V 8 . .
B 1 8
L S M . . .
B 2
M
B 8 0
E B . . .
B 4 1
M
A
21
