4.2 Fitting and tensioning the V-belt
This paragraph applies only to the machines with the motor on the
table top.
–

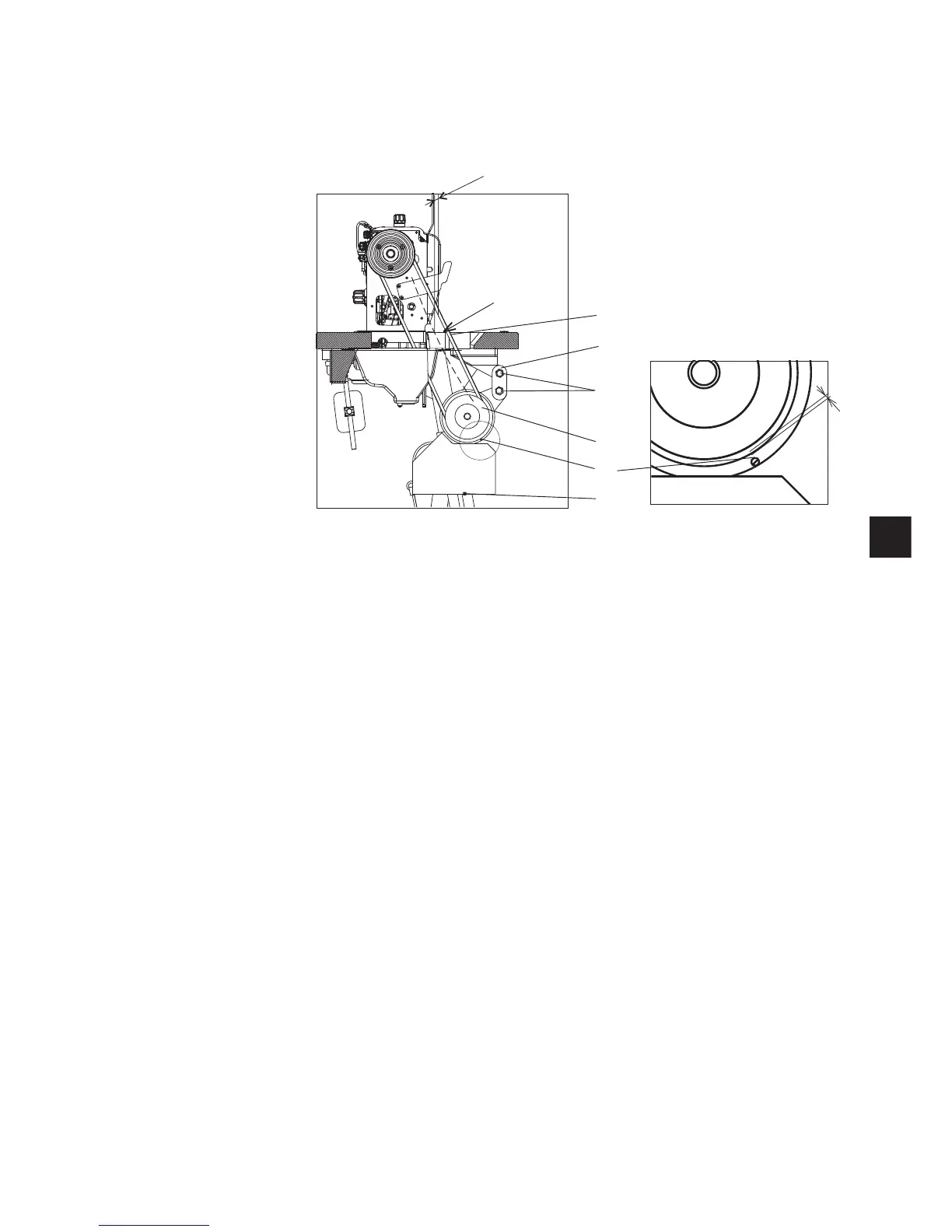

Mount the V-belt pulley (1) and the V-belt (2). Both items are
included in the set of parts.
–
Loosen the screws (3) and stretch the belt. The connecting rod (4)
should be vertical approximately. The s urface (5) horizontal
approximately.
–
Check the belt tension by force F = 10 N (~ 1 kg). The belt is
expected to bend by 20 mm approximately.
–
Adjust the stop (6) position protecting the belt against falling out at
tilting the machine.
9
GB
F=10N
20 mm
3
2
4
3
1
6
5
