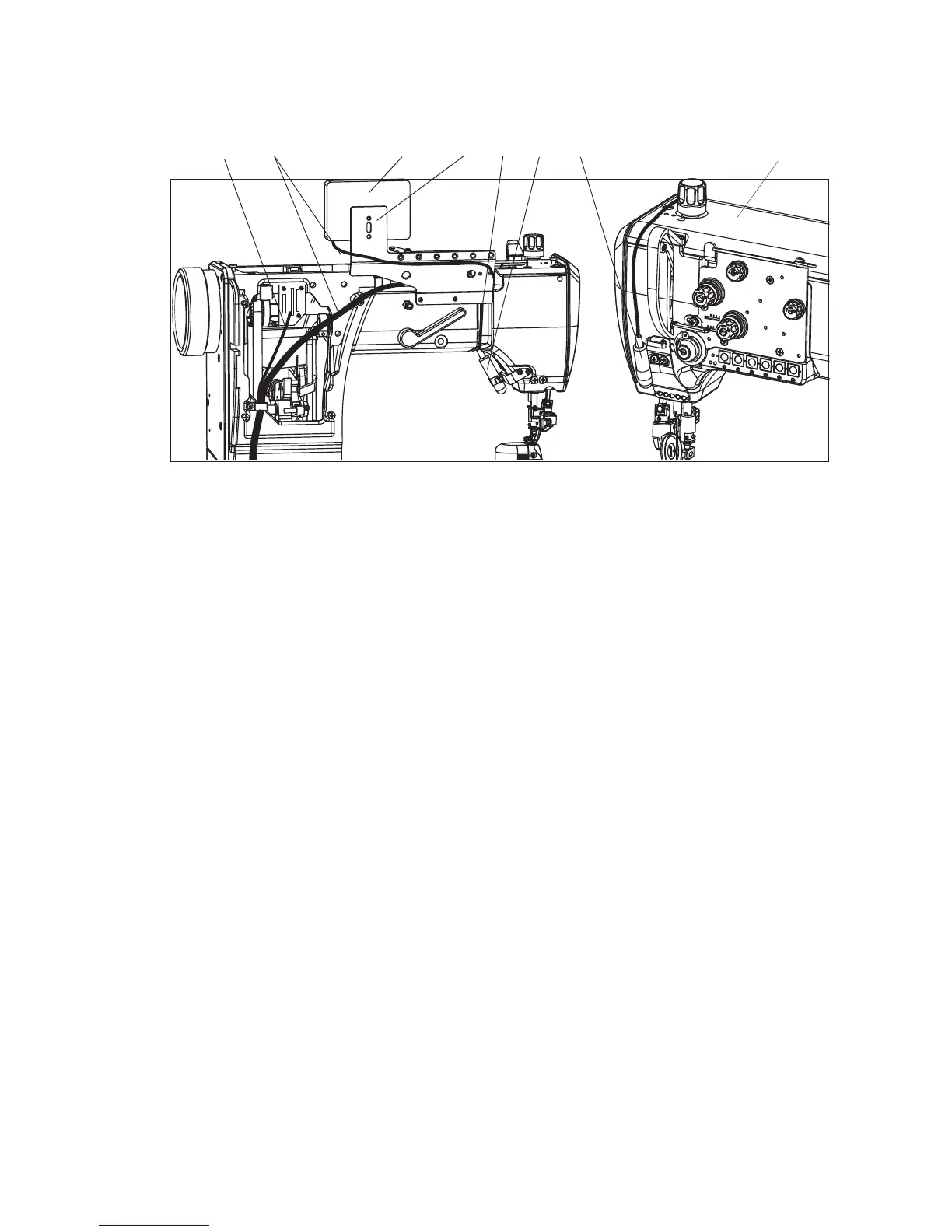

4.7 Installation of connecting cable, control panel and sewing diode lamp on the
machine head
–
The connecting cable (1) is supplied with every machine with the
positioning motor (drive).
–
The control panel (2) is an optional item. If it is ordered, however, a
bracket (3) is always supplied together with it. The sewing diode
lamp (5) is an optional item. Two types of brackets are supplied
together with it to enable the installation of the lighting body in two
positions. Position (5) is the basic one. Position (7) will be used if
there is asewn material guide on the machine.
–
Dismantle the upper cover and back cover of the machine head.
–
Install the connecting cable w ith the connector (1) according to the
picture.
–
Install the control panel (2) with the bracket (3) and install the
cable (4) according to the picture.
–
Mount the sewing lamp (5) and install the cable (6) according to the
picture.
14
5
3
7
24
1
6
8
