5.3 Connection of machine head electric equipment to drive
The electric equipment on the machine head is described in chapter
4.6 and 4.7. Its connection to the drive is different depending on the
selected drive type:
5.3.1 Connection of head to Efka VD552KV/6F82FA drive

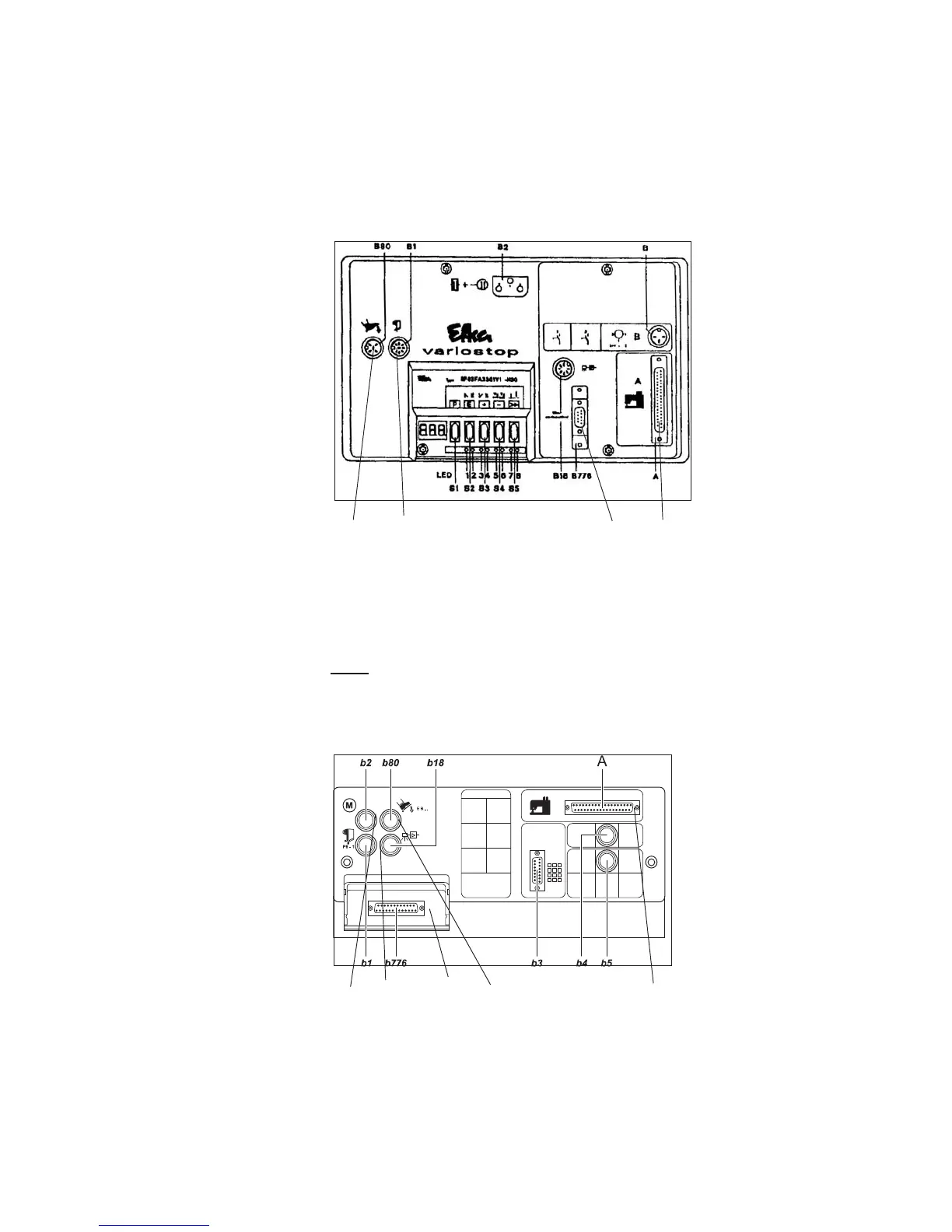

The front panel of the drive box is shown in the picture.
–
Connect the connecting cable to the connector (1).
–
Connect the control panel (if there is any) to the connector (2).
–
Connect the synchronizer to the connector (3).
Note:
The pedal position sensor attached to the drive box is connected
to the connector (4).
5.3.2 Connection of head to Efka DC1600/DA82GA drive
The front panel of the drive box is shown in the picture.
18
2
1
34
4
1
3
5
2
