Connect the connecting cable to the connector (1).
–
Connect the control panel to the connector (2).
–
Connect the synchronizer to the connector (3).
Note:
The pedal position sensor attached to the drive box is connected
to the connector (4). The motor cable of this drive is connected to the
connector (5).

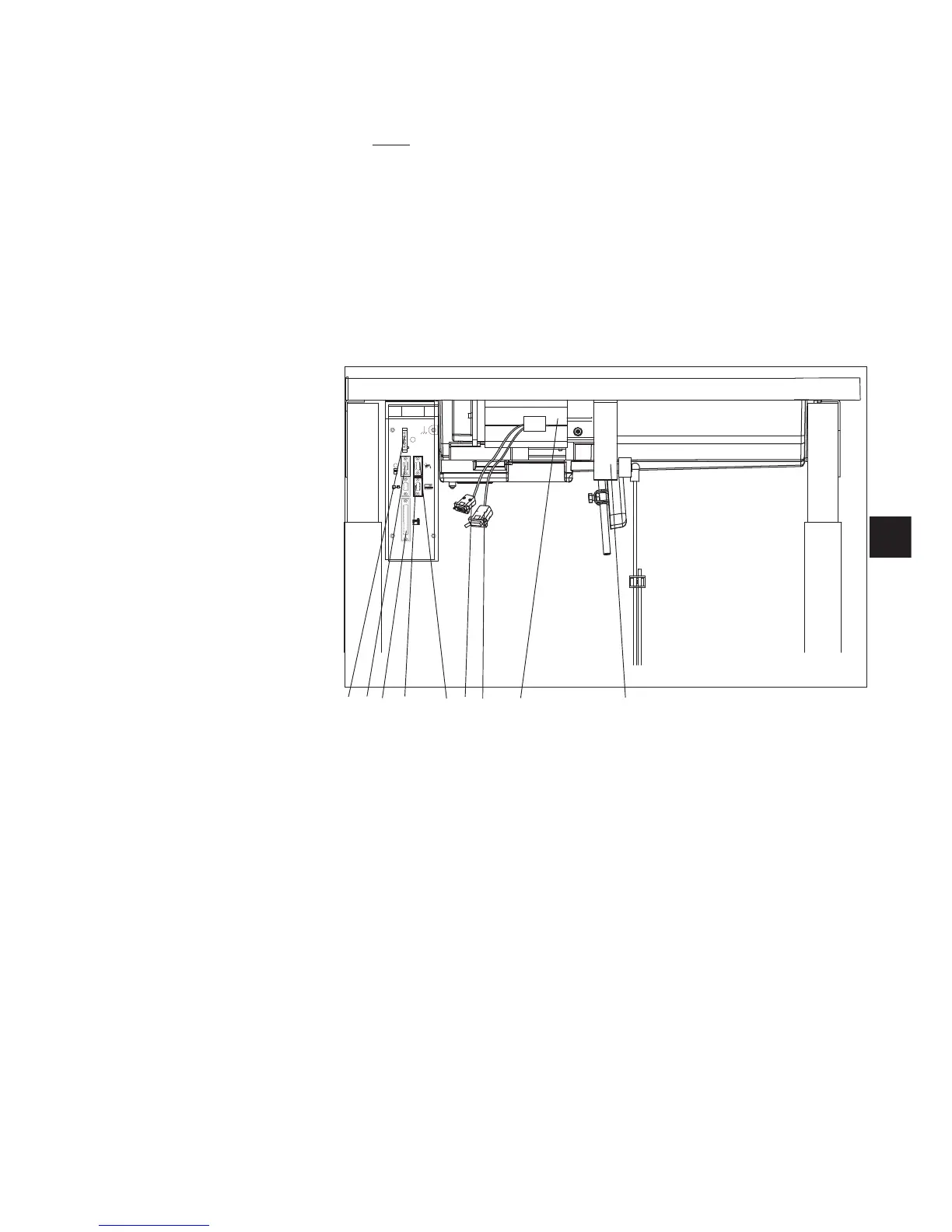

5.3.3 Connection of the head to Efka DC1550/DA321G drive
The direct drive Efka DC1550/DA321G with the motor on the machine
head is different from the above drives by the drive attachment on the
machine head directly. The synchronizer is integrated in the drive body
and not located on the hand wheel (this applies, however, only for the
motor : head gear rate 1:1).
–
Connect the machine head connecting cable to the connector (1).
–
Connect the control panel to the connector (2).
–
Connect the synchronizer connector (3) to the c onnector (4).
–
Connect the connector (5) of the motor (6) to the connector (7).
–
Connect the pedal position sensor (8) to the connector (9).
19
GB
7412 935 6 8
