5.2 Earthing

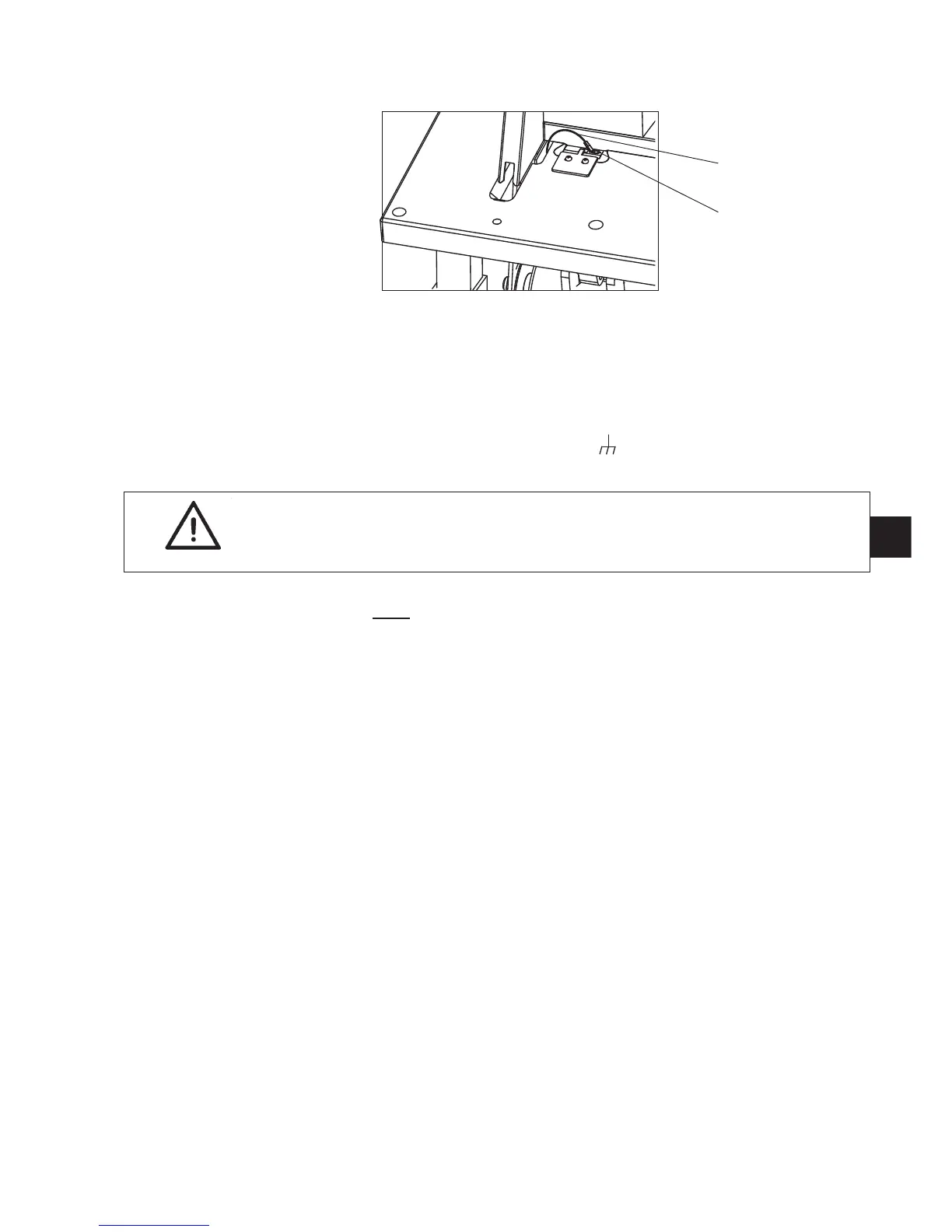

The earthing cable (1) is included in the accessory package of the
machine head.
–
Connect the earthing cable (1) to the plug (2) (already screwed on
the head hinge) and pull its opposite end under the table top.
–
Screw the opposite end of the grounding conductor to the relevant
grounding point of the drive ( ).
–
Attachthecablewithacliponthebottomsideofthetabletop.
Caution!
Make sure that the earthing cable (1) does not touch the
driving V-belt (if there is any).
Note:
You do not need to care for the earthing with machines having the
sewing motor fit onto the machine head, since it is already established
through the fitted motor.
