SV-MAP-270 Navigation Mapping Software
SkyView Classic Pilot’s User Guide – Revision Z 7-64
waypoints. In contrast to the option, ACTIVATE LEG does not use your aircraft’s current
position to generate a Direct-To course. It instead displays course guidance according to the
selected leg.
The following figure shows an active Flight Plan where the first leg is active and the aircraft is
partway between the first two waypoints of the Flight Plan and is on course. The route is
depicted on the Moving Map display and the course is displayed on the HSI. Since the aircraft is
on course, there is no deviation on the CDI needle on the HSI.

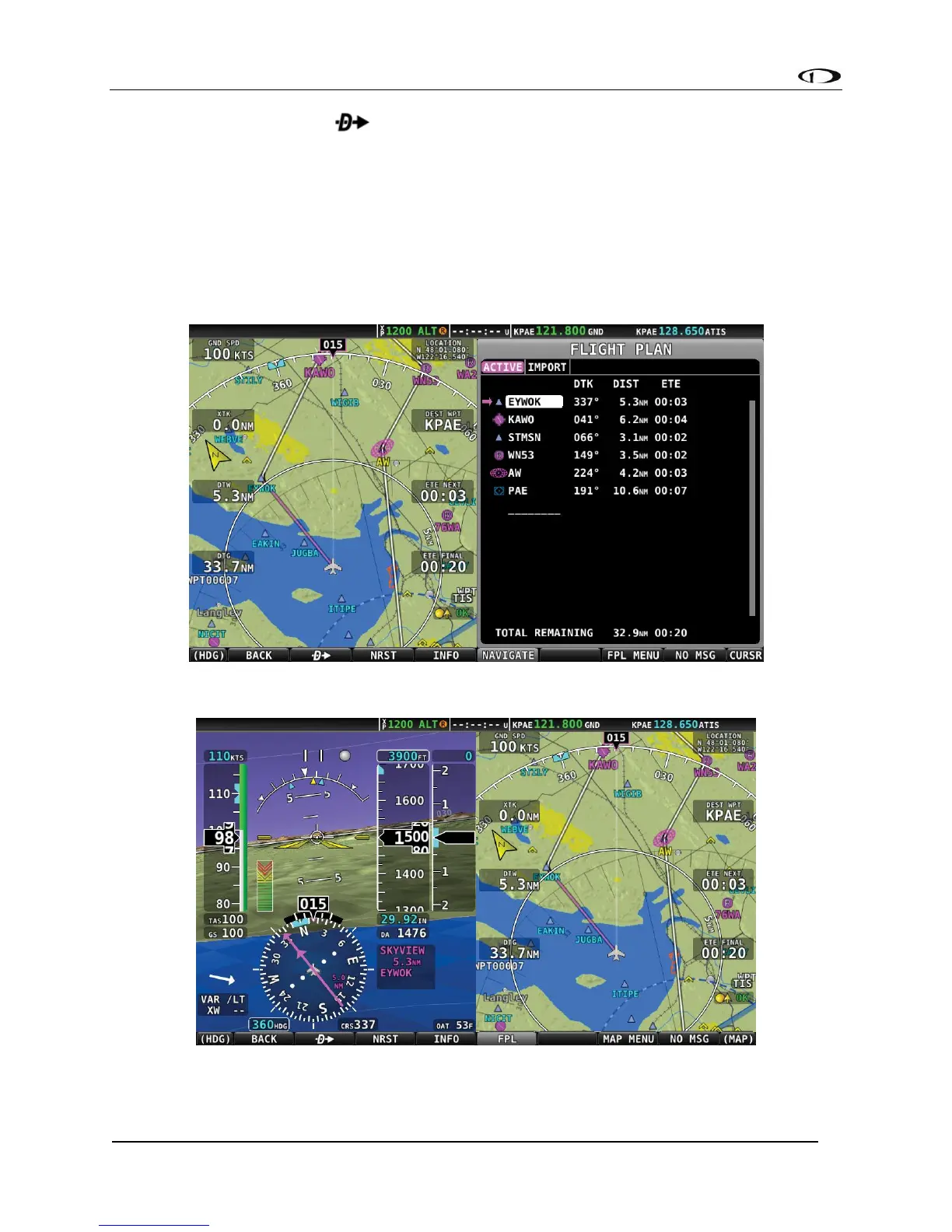

Figure 146 - Active Flight Plan: Map and Flight Plan View
Figure 147 - Active Flight Plan: HSI and MAP Depictions
