Easy xLogic User Manual

121
121
121
121
Parameters
Parameters
Parameters
Parameters V1
V1
V1
V1 …
…
…
… V4
V4
V4
V4
The values for V1 … V4 can be provided by the value of another already-programmed function:
Analog comparator: Ax – Ay
Analog trigger: Ax
Analog amplifier: Ax
Analog multiplexer: AQ
Analog ramp: AQ
Analog math: AQ
PI controller:AQ
Data latching relay: AQ
Up/Down counter: Cnt

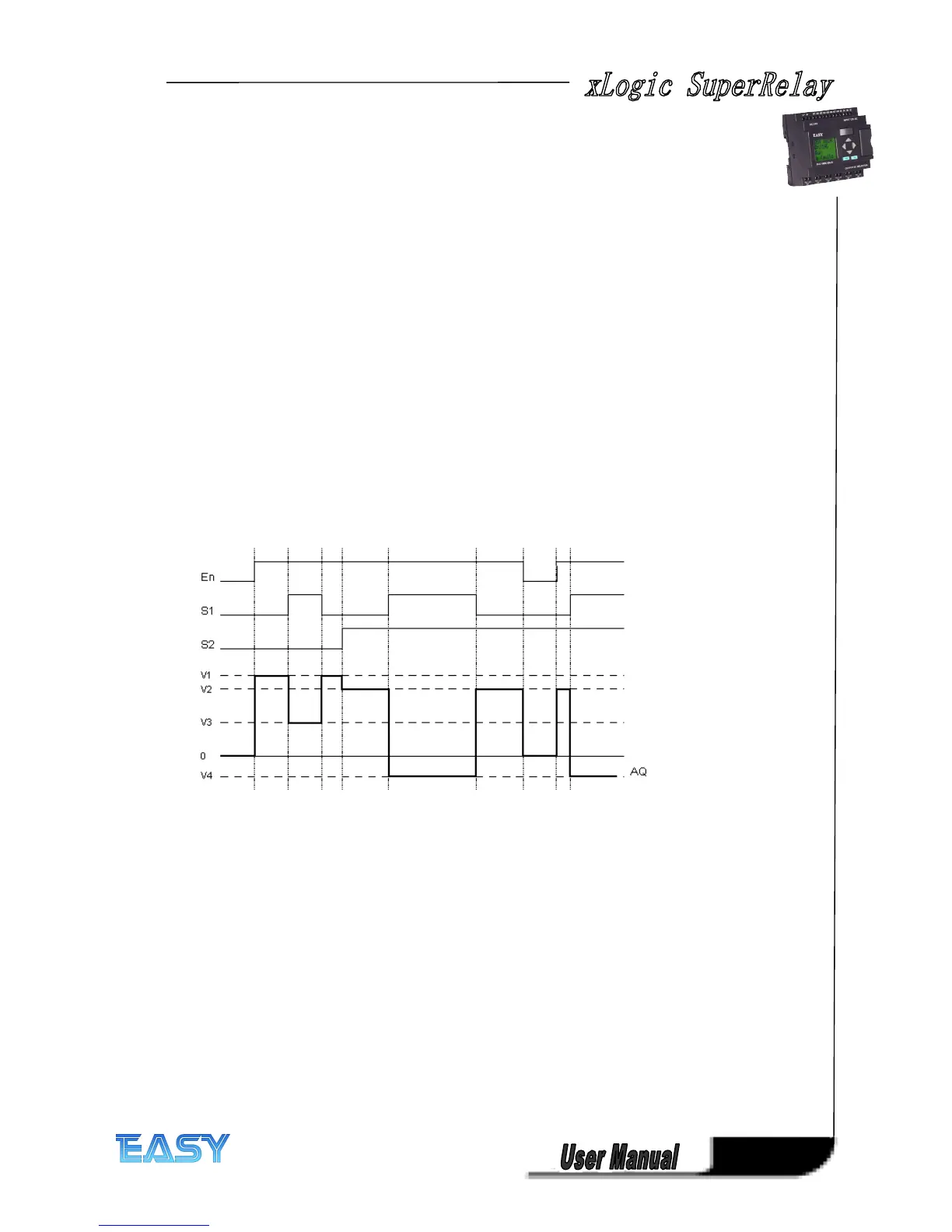

Timing
Timing
Timing
Timing Diagram
Diagram
Diagram
Diagram
Description
Description
Description
Description of
of
of
of Function
Function
Function
Function
If input En is set, then the function issues one of 4 possible analog values V1 to V4 at the output
AQ, depending on the parameters S1 and S2.
If the input En is not set, then the function issues the analog value 0 at output AQ.
Analog
Analog
Analog
Analog output
output
output
output
If you interconnect this special function with a real analog output, note that the analog output
can only process values between 0 and 1000. To do this, you may need to connect an
additional amplifier between the analog output of the special function and the real analog
output. Using this amplifier, you standardize the output range of the special function to a
value range of 0 to 1000.
Setting
Setting
Setting
Setting the
the
the
the Par
Par
Par
Par parameter
parameter
parameter
parameter
View in programming mode (example):
