When you put Modbus read ” or “ Modbus Write ” function block in your program and make some
configurations, the function that xLogic SuperRelay serves as master will be realized.
The
The
The
The Property
Property
Property
Property in
in
in
in dialog
dialog
dialog
dialog box
box
box
box of
of
of
of “
“
“
“ Modbus
Modbus
Modbus
Modbus Read
Read
Read
Read ”
”
”

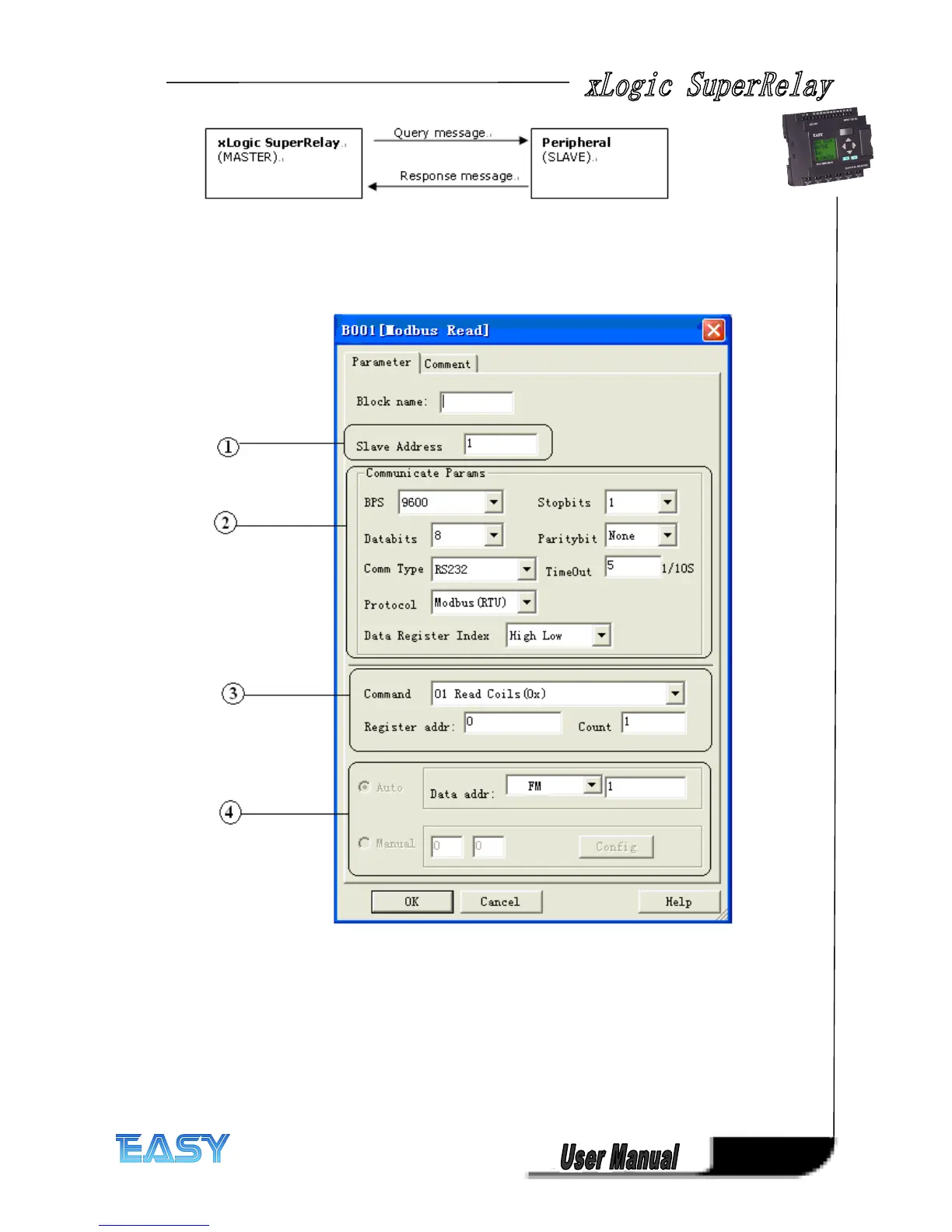

” shows
shows
shows
shows as
as
as
as below
below
below
below figure:
figure:
figure:
figure:
1. Slave Address :1 is default
2. Communication parameters ： BPS is baud rate 、 Stopbits 、 Databits 、 Communication type:
RS232 、 RS485 . Actually RS232 or RS485 are just interface of xLogic.
Notes: RS485 interface is only applied to ELC-18 SERIES.
3. Command , register address and register count
New feature for ELC-12 CPU :
