136

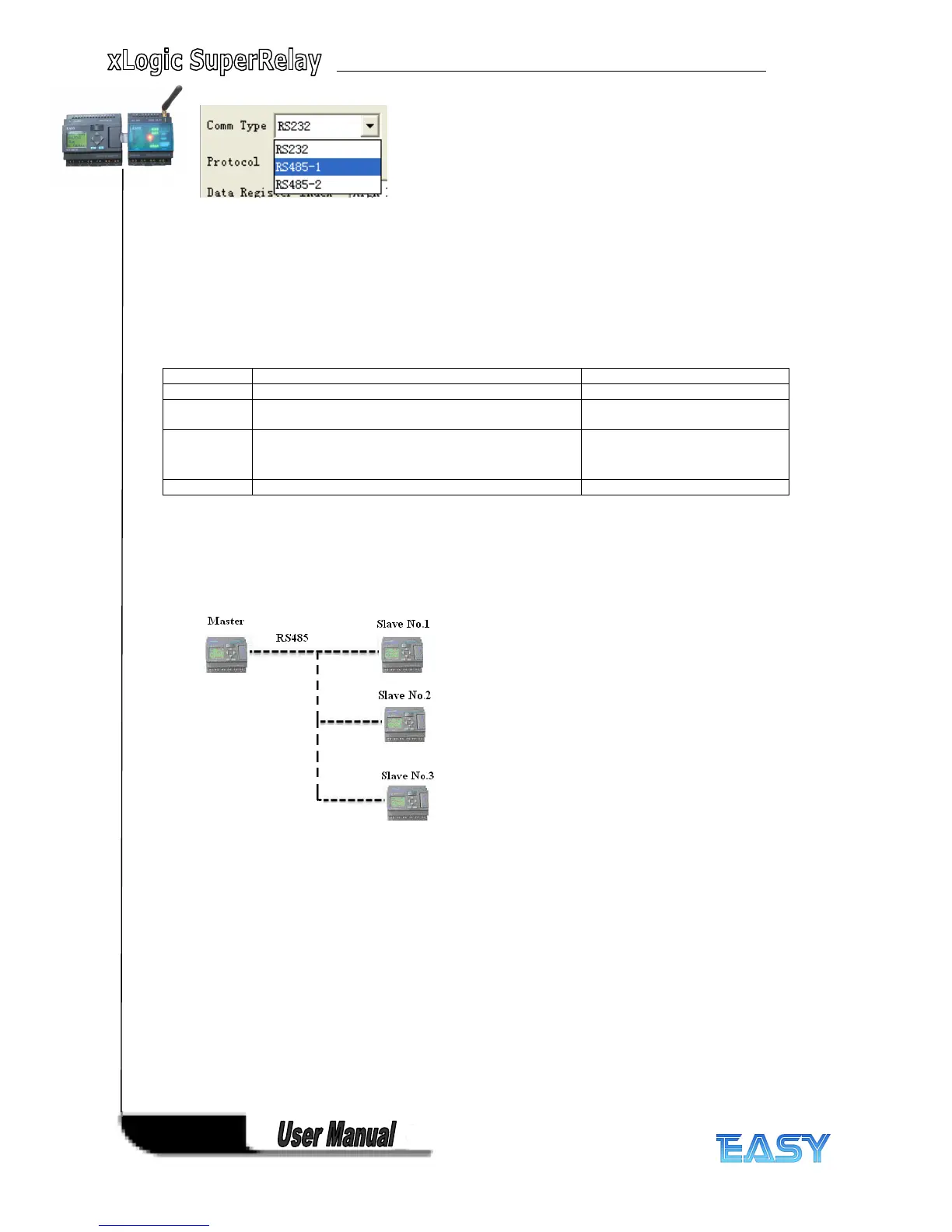

RS485-1 is the extension port of ELC-12 CPU(new version) named COM2 ,it usually servers as

extension port , but it also can be used as common RS485 port if no any extensions need use

in your application and at the same time two RS485 ports need be used. The standard RS485

module cannot bring out the terminals of COM2 built-in ELC-12 series CP U, so one customize

RS485 module should be used for this case.

RS485-2 is the common RS485 port built-in ELC-12 series CP U ,ELC12-E-RS485 module is

used to bring out the terminals from this port named COM3. Additionally ,ELC12-E-ETHERNET

module is also using this port to connect with ETHERNET.

Command

Command Function

Function

Function description

description

description remark

remark

01 Read one group coil status （ 00000 ～ 0XXXX ） Read Coil Status （ output ）

02 Fetch one group data of the status of switch input

（ 10000 ～ 1XXXX ）

Read input Status (input relay)

03 Read data of multi-holding register （ 40000 ～ 4XXXX ） Read Holding Registers

(Output register)

04 Read data of input registers (3000 ～ 3XXXX) Read Input Registers

Note: Please use “ 03 ” command to read AI/AO of xLogic

4.where to save the data read from Slave.

Example: The following we'll take a example that one xLogic (Master) communicate with other

xLoigc (Slave) via RS485.

Example

Example 1:

1: Get Q1 status of SLAVE1(xLogic) and then save the bit status to FM1.

Easy xLogic User Manual
