Easy xLogic User Manual

13
13
13
13
Naming
Naming
Naming
Naming Rules
Rules
Rules
Rules of
of
of
of ELC
ELC
ELC
ELC Series
Series
Series
Series

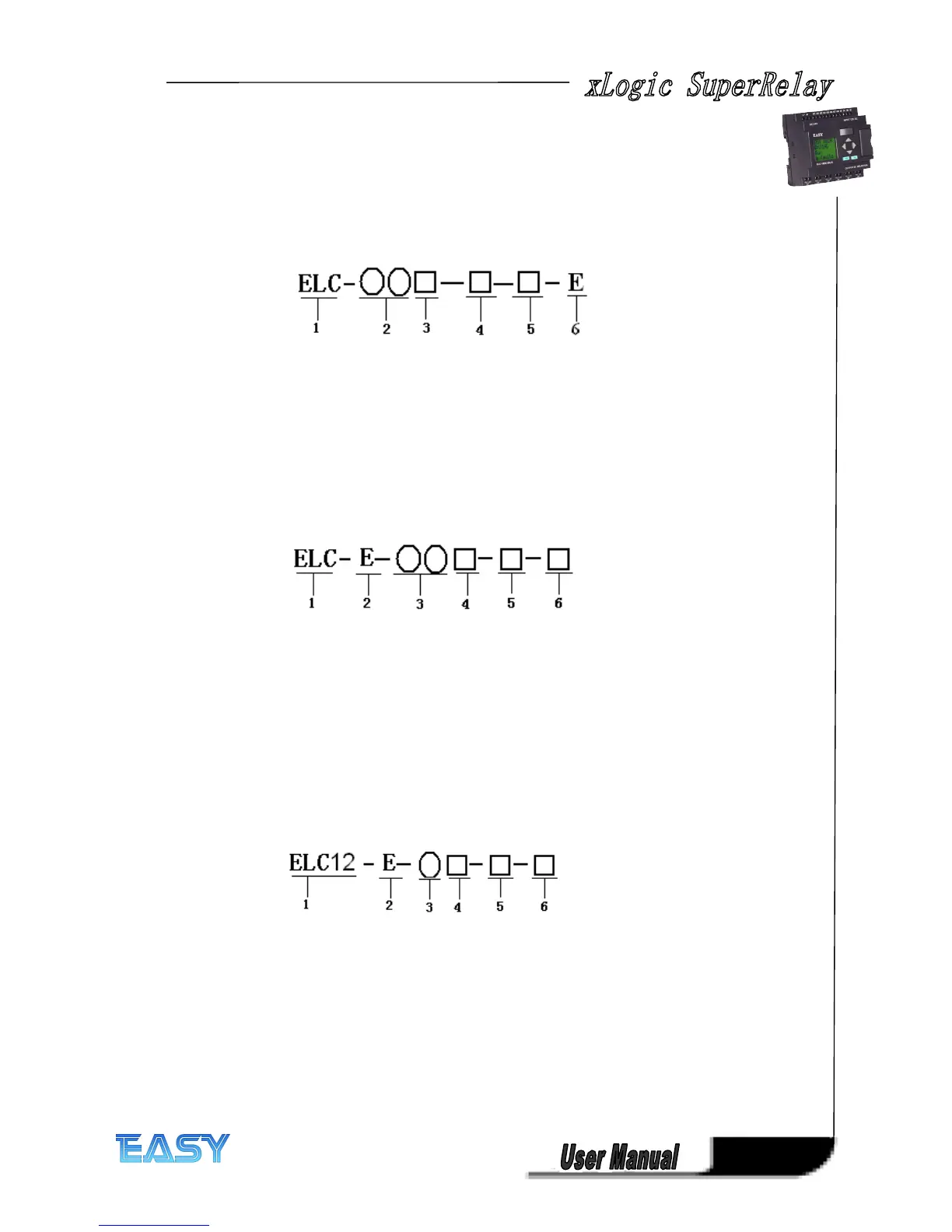

Model name （ main module ） :
1. Series name
2. Points of input and output
3. Supply power AC or DC
4. Digital/Analog D: digital DA: digital/analog L: with photoelectricity isolation
5. Output type R: relay T: transistor
TN = “ PN P ” transistor; TP= “ NP N ” transistor
6. E: economic mode
Model name (expansion module ,plus with ELC-18 CPU together to use ):
1. Series name
2. E: expansion module
3. Points of input and output
4. Supply power AC or DC
5. Digital/Analog D: digital DA: digital/analog
6. Output type R: relay TP: “ NP N ” transistor ； TN : “ PN P ” transistor
Model name (expansion module ,plus with ELC-12 CPU together to use ):
1. Series name
2. E: expansion module
3. Points of input and output
4. Supply power AC or DC
5. Digital/Analog DA: digital/analog
6. Output type R: relay TP: “ NP N ” transistor ； TN : “ PN P ” transistor

Easy xLogic Specifications

General

Brand	Easy
Model	xLogic
Category	Control Unit
Language	English
