Easy xLogic User Manual

173
173
173
173

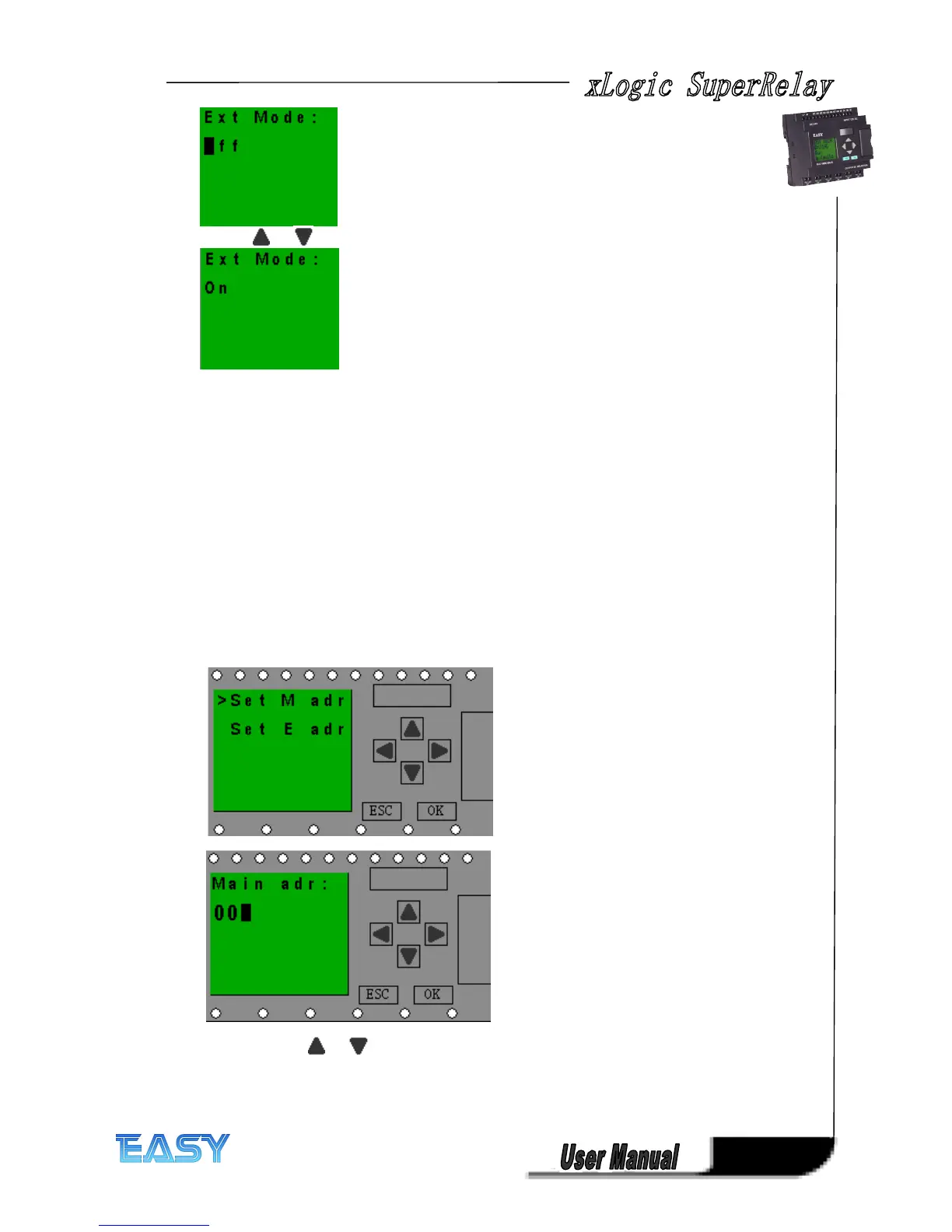

5. Press or key to select “ on ”
Notes
Notes
Notes
Notes : 1. The address setup of the extension module must be before powering
on. Modification after powering off will be ineffective.
2. Freely connection , need not care the power type between CPU and extensions ,that
means the AC type module also can be connected with the DC type module.
3.Power on the CPU and the extensions on the same time ,in the other words the power
on time of extension module do not later than the CPU ’ s ,otherwise ,the
communication between CPU and extension may not be established.
4. If the communication is establised between CPU and extensions , the indicator on the
top of the extensions ’ house will turn to RUN(green colour).
3. If more than one expansion module connect to CPU at the same time ,the address of
expansion module must be different each other , otherwise the
system(CPU+expasnions) would run abnormal.
5
5
5
5 .2.5
.2.5
.2.5
.2.5 Set
Set
Set
Set CPU
CPU
CPU
CPU address
address
address
address
If more than one CPU in a network and the address of CPU would be set differently each other.
Besides you can change the address of CPU via xLogicsoft, it can be set via panel key also. The
address range is from 1 to 247
Click “ ESC ” to cancel and click “ OK ” to confirm
Set with pressing or key.
