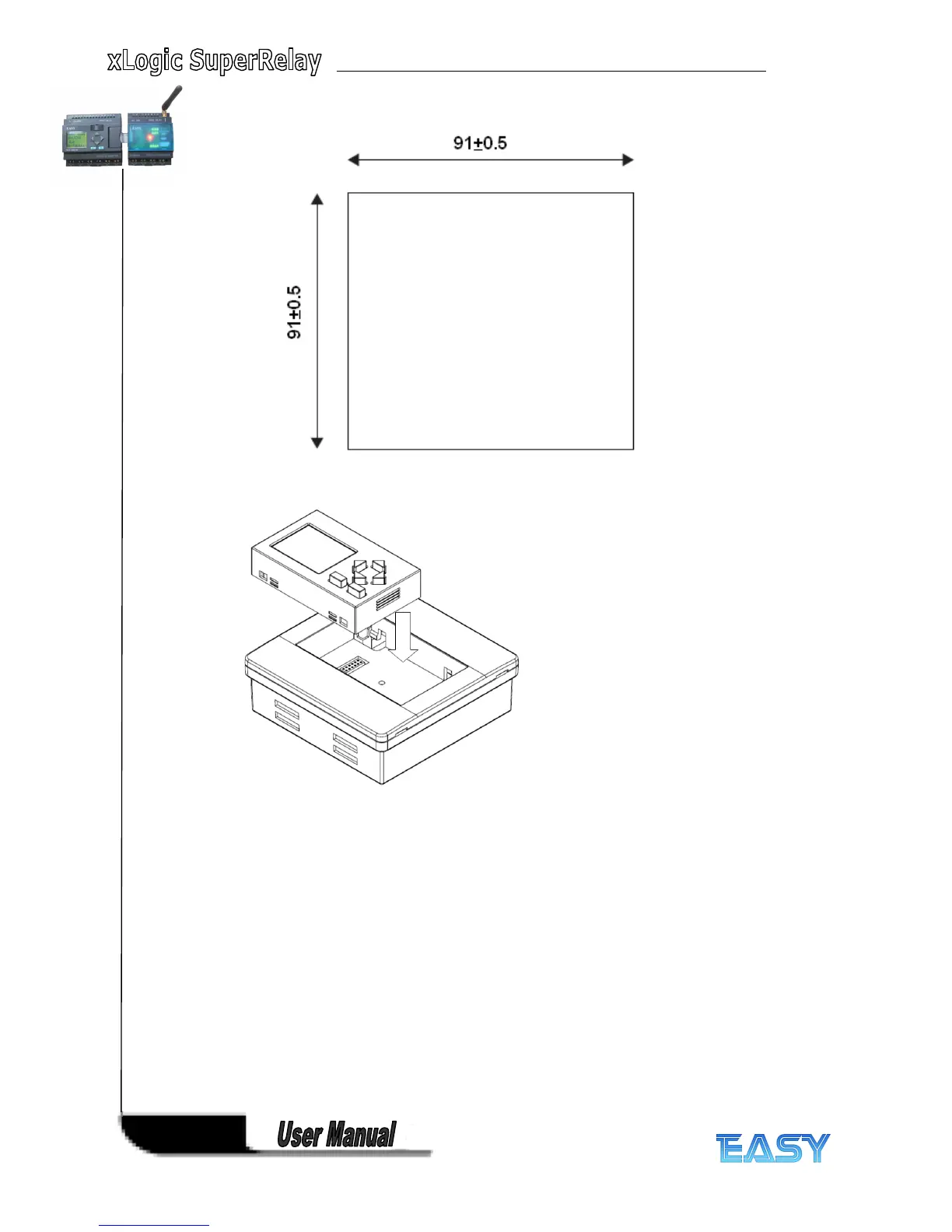

1. Cut a 91 mm x 91 mm (tolerance: +0.5 mm) hole in the mounting surface.
2. Put the ELC-HMI into ELC-HMI-FP module.
3. Fit the ELC-HMI-FP
ELC-HMI-FP
ELC-HMI-FP
ELC-HMI-FP (as the above figure ,not include the lock part) into the cutout you
made in the mounting surface.
4. Attach the mounting brackets (included) to the ELC-HMI-FP
ELC-HMI-FP
ELC-HMI-FP
ELC-HMI-FP .
