Easy xLogic User Manual

29
29
29
29
Notes
Notes
Notes
Notes (PN
(PN
(PN
(PN P
P
P
P ):
):
):
):

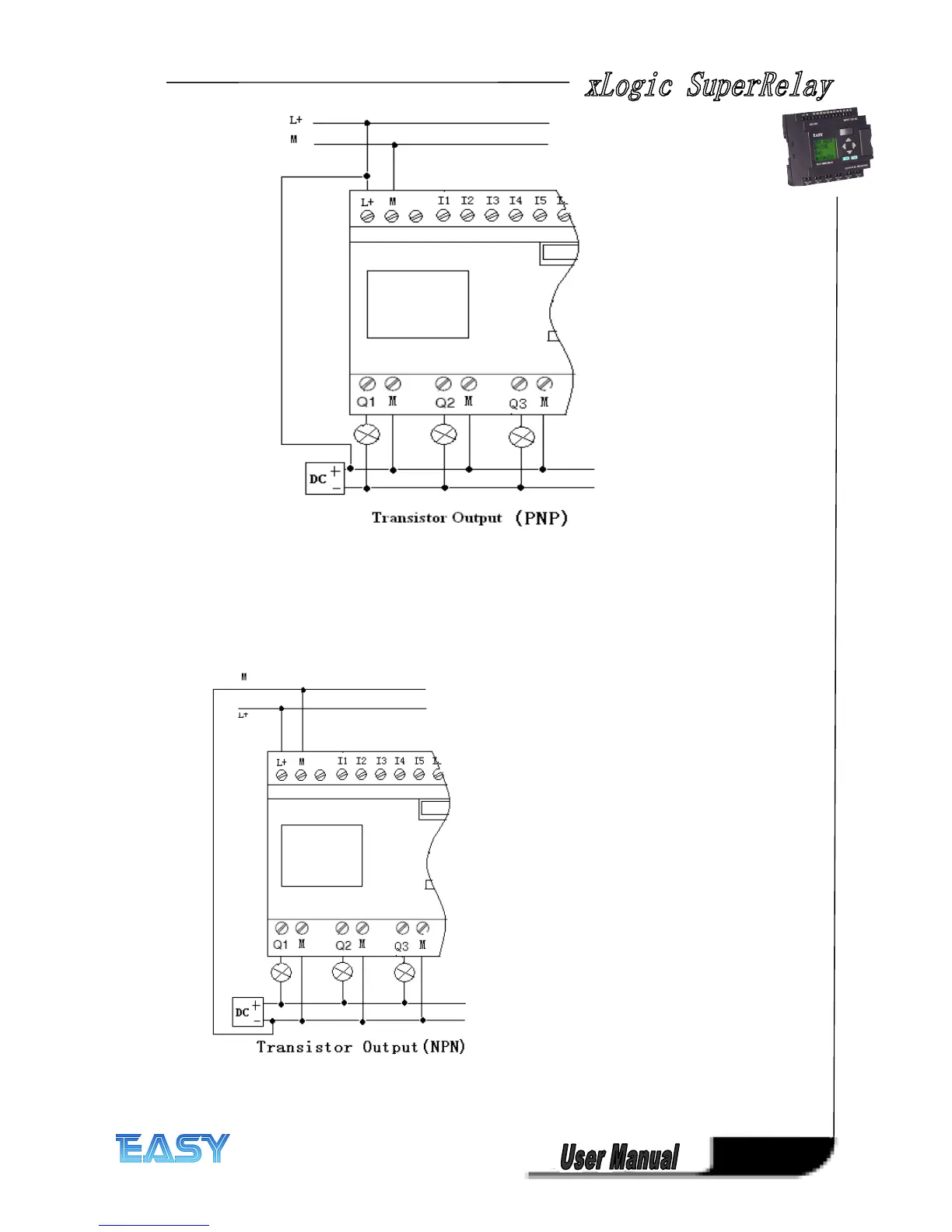

* The load connecting voltage must be ≤ 80VDC and it must be DC.
* The “ + ” terminal of the output wiring must be connected with the DC
positive voltage, and it must be connected with the “ L+ ” terminal of the
xLogic power ， a load must be connected with the “ - ” terminal of the DC
negative voltage.
Notes
Notes
Notes
Notes (NPN):
(NPN):
(NPN):
(NPN):
* The load connecting voltage must be ≤ 80VDC and it must be DC.

Easy xLogic Specifications

General

Brand	Easy
Model	xLogic
Category	Control Unit
Language	English
