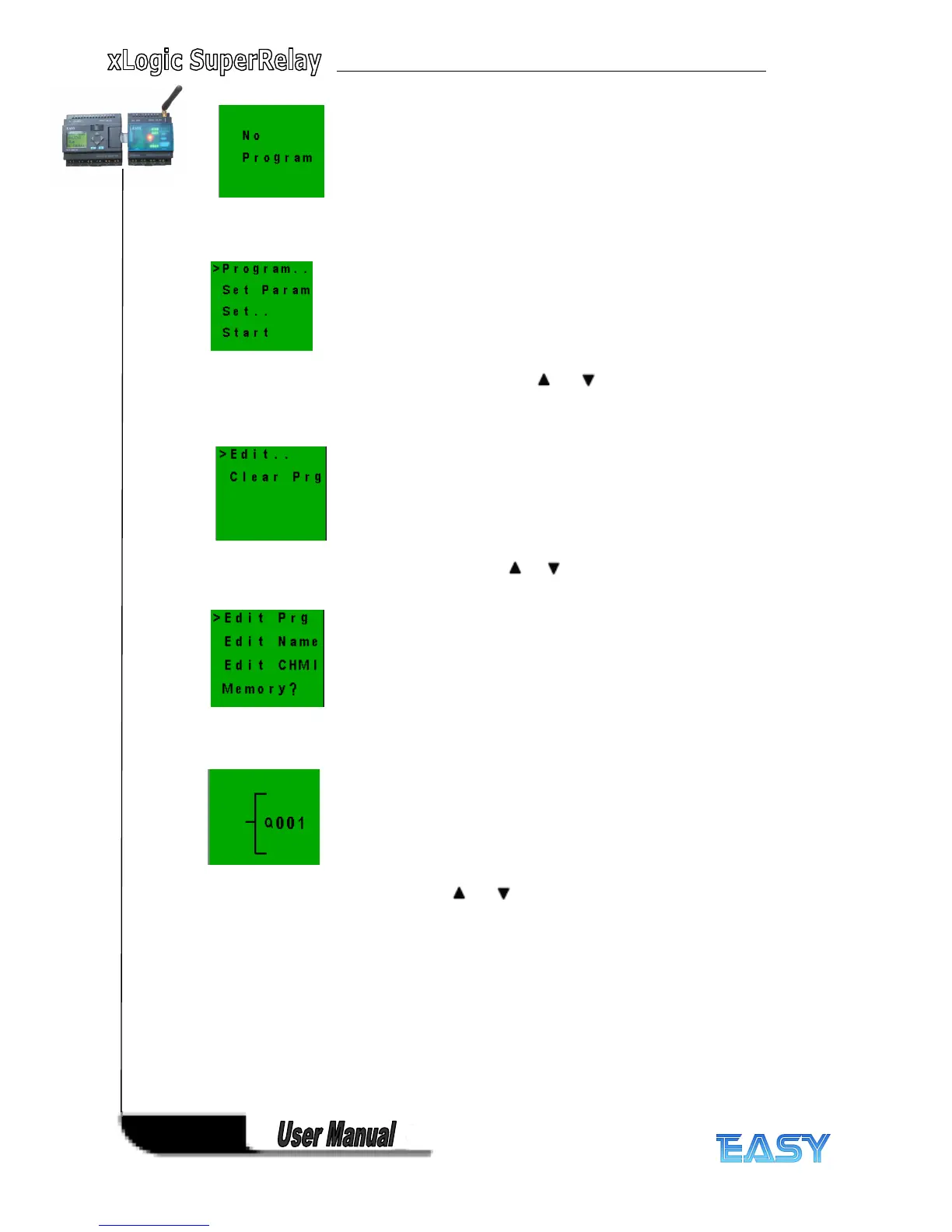

Switch xLogic to programming mode by pressing ESC. This will take you to the main menu of

xLogic :

The first character in the first line is the ">" cursor. Press and to move the ">" cursor up

and down. Move it to " Program..

Program..

Program.. " and confirm with OK. xLogic opens the programming menu.

xLogic

’

s programming menu

Here you can also move the ">" cursor by pressing and . Move the ">" cursor to " Edit..

Edit..

Edit.. "

and confirm with OK.

The Edit menu of xLogic

Move the ">" cursor to "Edit Prg" (for editing the circuit program) and confirm with OK. xLogic

now shows you the first output:

The first output of xLogic

You are now in programming mode. Press and to select the other outputs. Now start to

edit your circuit program.

Note

Because we have not yet saved a password for the circuit program in xLogic , you can directly

enter editing mode. When you select "Edit" after you have saved a passwordprotected circuit

prgram, you are prompted to enter a password and to confirm it with OK.

You can only edit the program after you have entered the correct password .
