The internal real-time clock of xLogic is buffered against power failure. The buffering time is
influenced by the ambient temperature, and is typically 10 hours (ELC-18) or 100
hours(ELC-12) at an ambient temperature of 25 ° C.
Special
Special
Special
Special characteristics
characteristics
characteristics
characteristics to
to
to
to note
note
note
note when
when
when
when configuring
configuring
configuring
configuring
A click on the dialog box enables direct keyboard input of the month and day values. The values
entered may not exceed the logical maximum of the relevant input boxes; otherwise xLogicsoft
returns an error message.
The calendar
calendar
calendar
calendar icon offers you an easy way of setting the date. It opens a window where you can
set the days and months by clicking the relevant buttons.
Sample
Sample
Sample
Sample configuration
configuration
configuration
configuration
The output of a n xLogic is to be set annually on March 1, reset on April 4, set again on July 7,
and reset again on November 19. You need to configure two yearly timers with corresponding
on-times. Then logically link the outputs by means of an OR block.

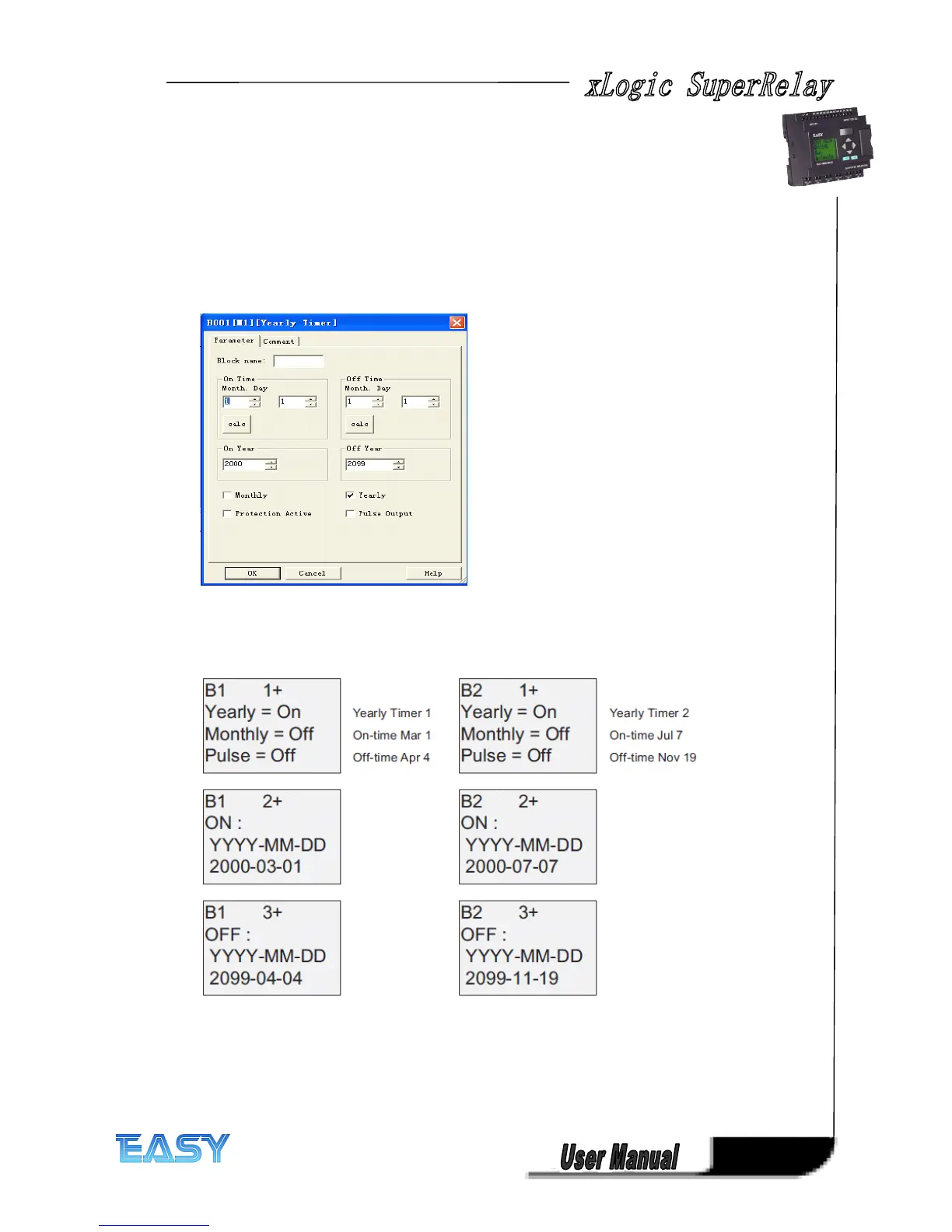

Result
Result
Result
Result
