Eaton 9130 - Page 82

L5-30P
Input Cord
RS-232
Port
USB
Port
Communication
Bay
REPO
Port
Relay
Port
(4) 5-20T
Output Receptables
(1) L5-20R
Output
Receptable
EBM
Connection
(2) 20A
AC Breakers
Specifications
Eaton 9130 700/3000 VA UPS User’s Guide 164201718—Rev 7 www.eaton.com/powerquality 76

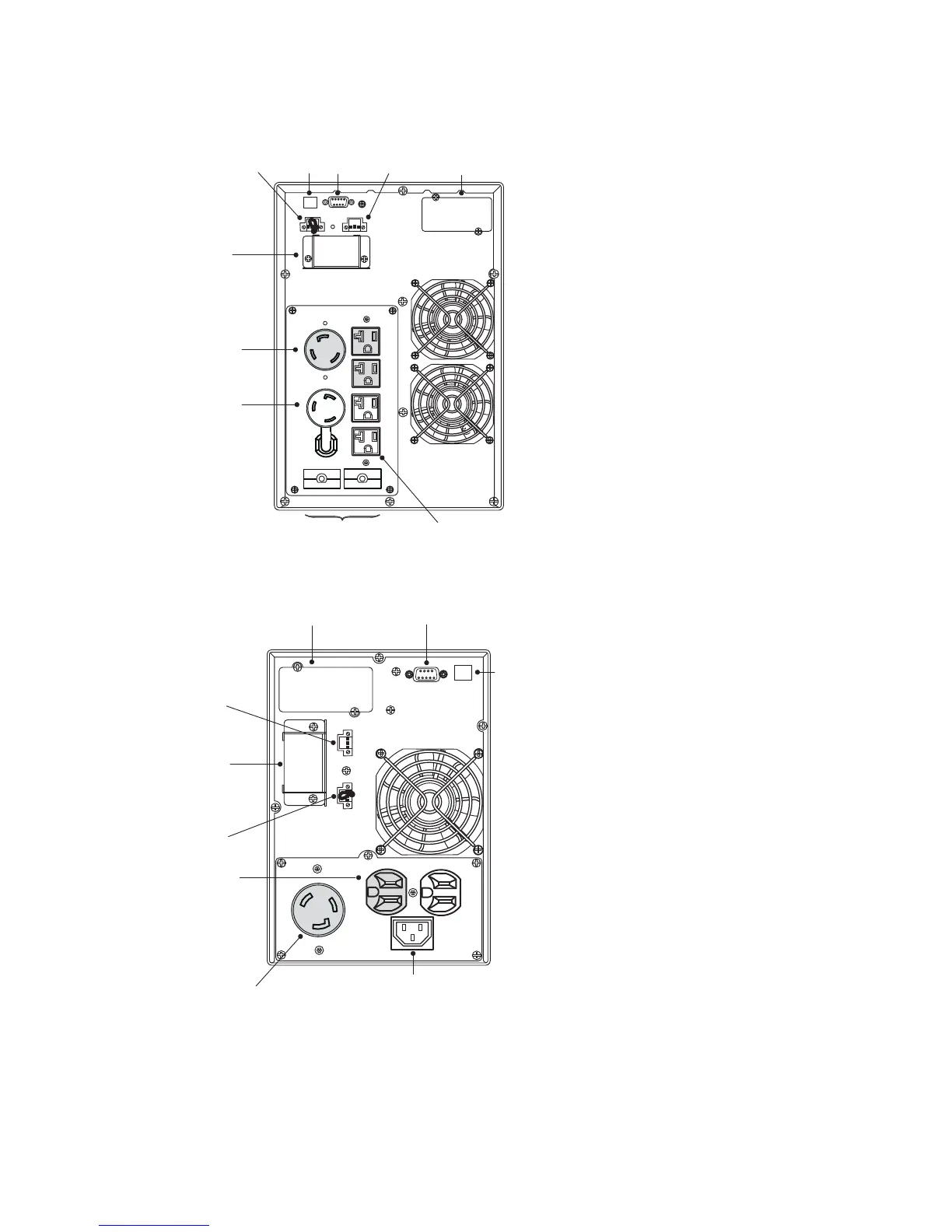

Figure 47. Model PW9130L3000T-XL
RS-232
Port
USB
Port
Communication
Bay
REPO
Port
Relay
Port
IEC C14-10A
Input Connector
(1) L5-20R
Output Receptable
(2) 6-20R
Output
Receptables
EBM
Connection
Figure 48. Model PW9130G1000T-XL
