Eaton 9130 - Page 83

RS-232
Port
USB
Port
Communication
Bay
REPO
Port
Relay
Port
IEC C14-10A
Input Connector
(4) 6-20R
Output
Receptables
(1) L6-20
Output
Receptable
EBM
Connection
Specifications
Eaton 9130 700/3000 VA UPS User’s Guide 164201718—Rev 7 www.eaton.com/powerquality 77

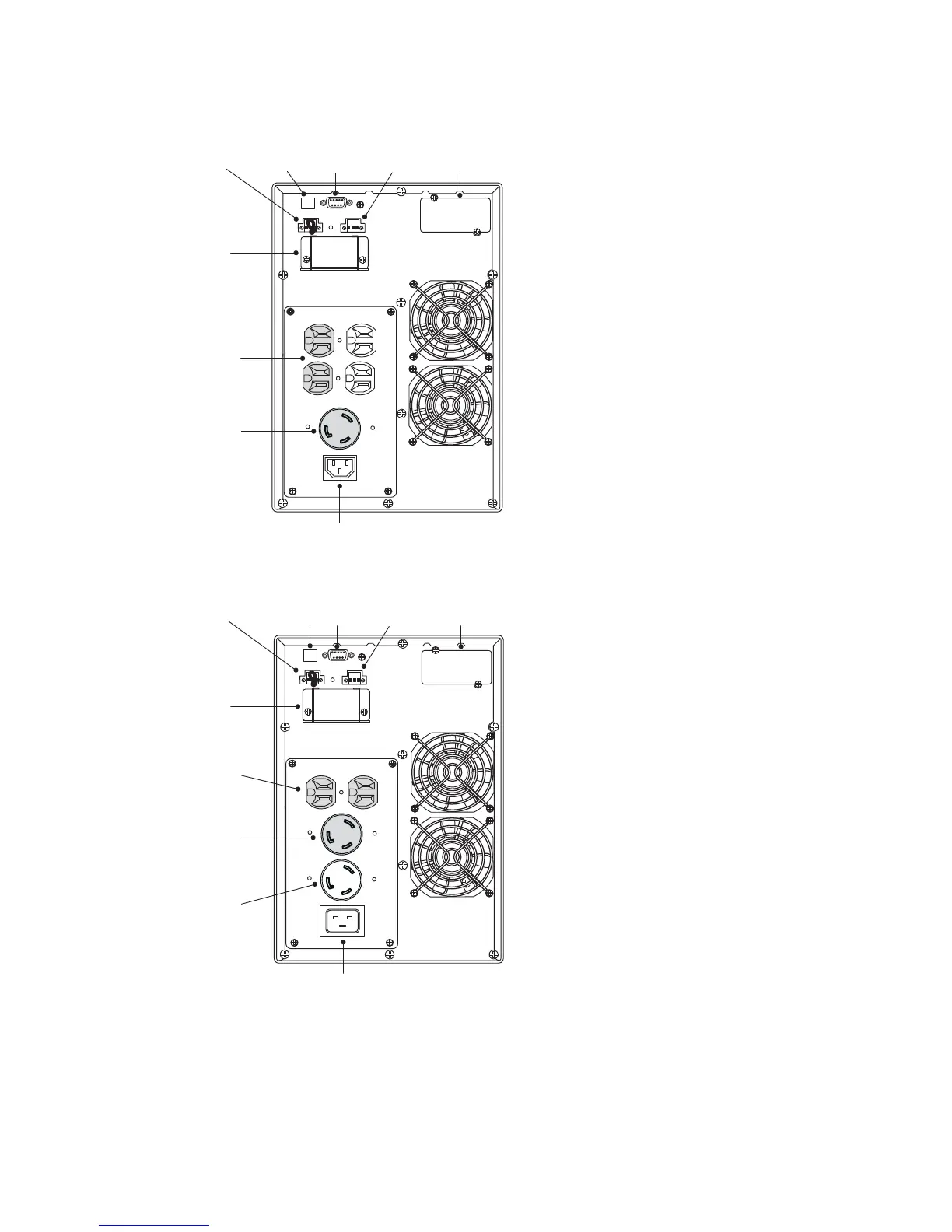

Figure 49. Model PW9130G2000T-XL
RS-232
Port
USB
Port
Communication
Bay
REPO
Port
Relay
Port
IEC C20-16A
Input Connector
(1) L6-20
Output
Receptable
(1) L6-30
Output
Receptable
(2) 6-20R
Output
Receptables
EBM
Connection
Figure 50. Model PW9130G3000T-XL
