Eaton MMX11 Series User Manual

Parameters
04/10 MN04020001Z-EN
104
Fixed frequency setpoint value (P10)
Fixed frequencies have a higher priority than frequency reference
values. They can be called individually, binary coded, or via the
digital inputs DI1 to DI6 or via the sequencing control program.
Fixed frequency
You can set eight different fixed frequency setpoints (FF0 to FF7)
in the parameter group P10.
The fixed frequencies FF1 = 10 Hz, FF2 = 15 Hz and FF3 = 20 Hz
can be called via digital inputs DI3 (control signal terminal 10) and
DI4 (control signal terminal 14) in the factory setting.
The change between the individual fixed frequency values is
completed with the acceleration and deceleration times set at P6.5
and P6.6. When the FWD or REV enables are switched off, the
output frequency is immediately blocked (uncontrolled coasting).
P6.8 = 1 causes the drive to perform a controlled deceleration a.
h
The maximum permitted set value for a fixed frequency is
limited by parameter P6.4 (maximum frequency).
A fixed frequency value can go below a minimum limit
frequency set at parameter P6.3.
h
The fixed frequency values can be changed during
operation (RUN).

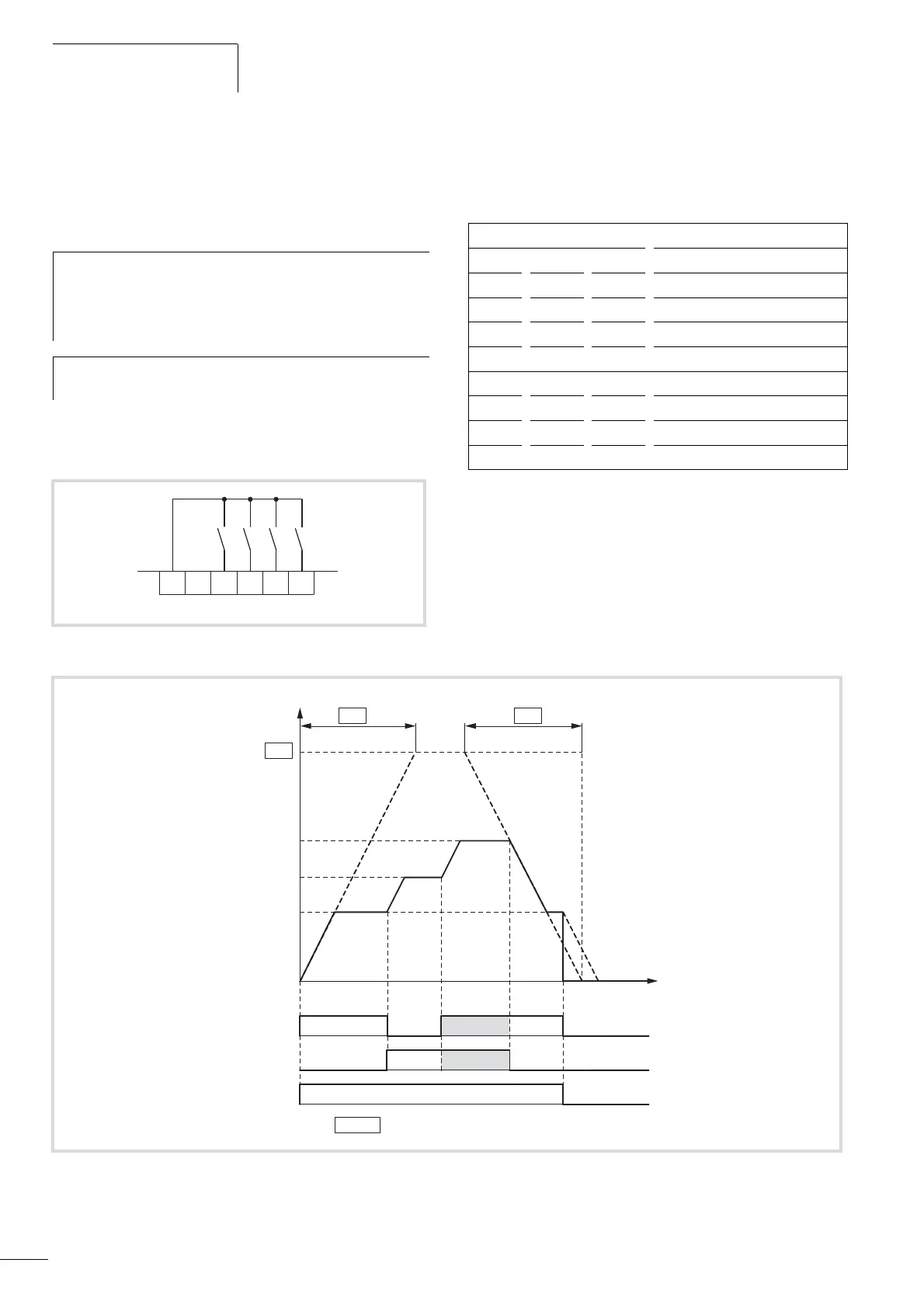

Figure 92: Fixed frequencies FF1, FF2 and FF3 (= FF1 + FF2)
76
910148
FWD REV FF1 FF2
DI1
+24 V
DI2 DI3 DI4
Input (binary) Fixed frequency
B0 B1 B2 (Factory setting)
FF0, P10.1 = 5 Hz, only if P6.2 = 0
X FF1, P10.2 = 10 Hz
X FF2, P10.3 = 15 Hz
X X FF3, P10.4 = 20 Hz
X FF4, P10.5 = 25 Hz
X X FF5, P10.6 = 30 Hz
X X FF6, P10.7 = 40 Hz
X X X FF7, P10.8 = 50 Hz
Figure 93: Example: Activation of the fixed frequencies in the factory setting with acceleration and deceleration ramps
f
[Hz]
DI3
DI4
DI1
f
max
(50 Hz)
20 Hz
15 Hz
10 Hz
0 Hz
P6.4
P6.6P6.5
FF1 FF1FF3
FF3FF2
FWD
b
a
a
t [s]
P6.8 = 1
