Eaton MMX11 Series - Dimensions and Sizes of the MMX-LZ

Appendix
04/10 MN04020001Z-EN
164
Dimensions and sizes of the MMX-LZ... interference
suppression filters
MMX-LZ1-009 MMX-LZ1-015 MMX-LZ1-017
MMX-LZ3-006 MMX-LZ3-009 MMX-LZ3-022

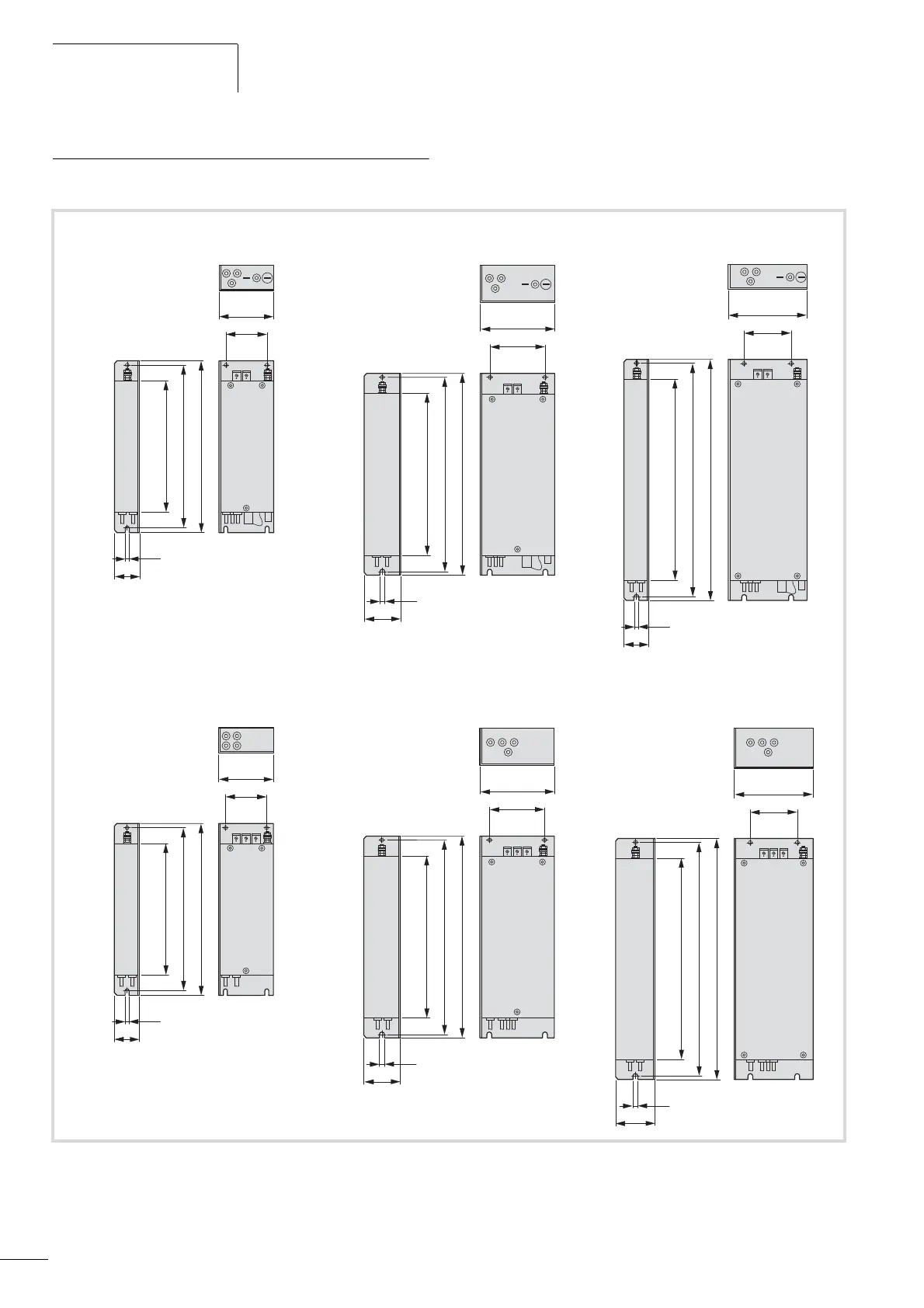

Figure 120: MMX-LZ... external interference suppression filters
157 197 207
4.5
30
50
66
70
90
245 235 195
4.5
45
60
100
303 293 253
5.5
45
157 197 207
4.5
30
50
66
70
90
245 235 195
5.5
45
60
100
303 293 253
5.5
45
