Motor (P7)
For optimal operation, you should enter the enter the ratings plate
information for the motor here. This information makes up the
base values for the motor controller (electrical reproduction, see
Section “U/f-characteristic curve (P11)”, page 111).
Switching type for stator windings of the motor
When selecting the rating data, take the dependency of the type
of switching on the strength of the feeding mains voltage into
account:
• 230 V (P7.5)
A delta circuit A A P7.1 = 4 A,
• 400 V (P7.5)
A star connection A P7.1 = 2.3 A.
Example
Single-phase connection of the MMX12AA4D8… frequency
inverter to a mains voltage of 230 V. The stator winding of the
motor is connected in a delta circuit (motor rated current 4 A as
per nameplate in figure 84). See
1)
in the factory setting.
Required changes for the electrical reproduction for the motor:
P7.1 = 4.0, P7.3 = 1410, P7.4 = 0.67.

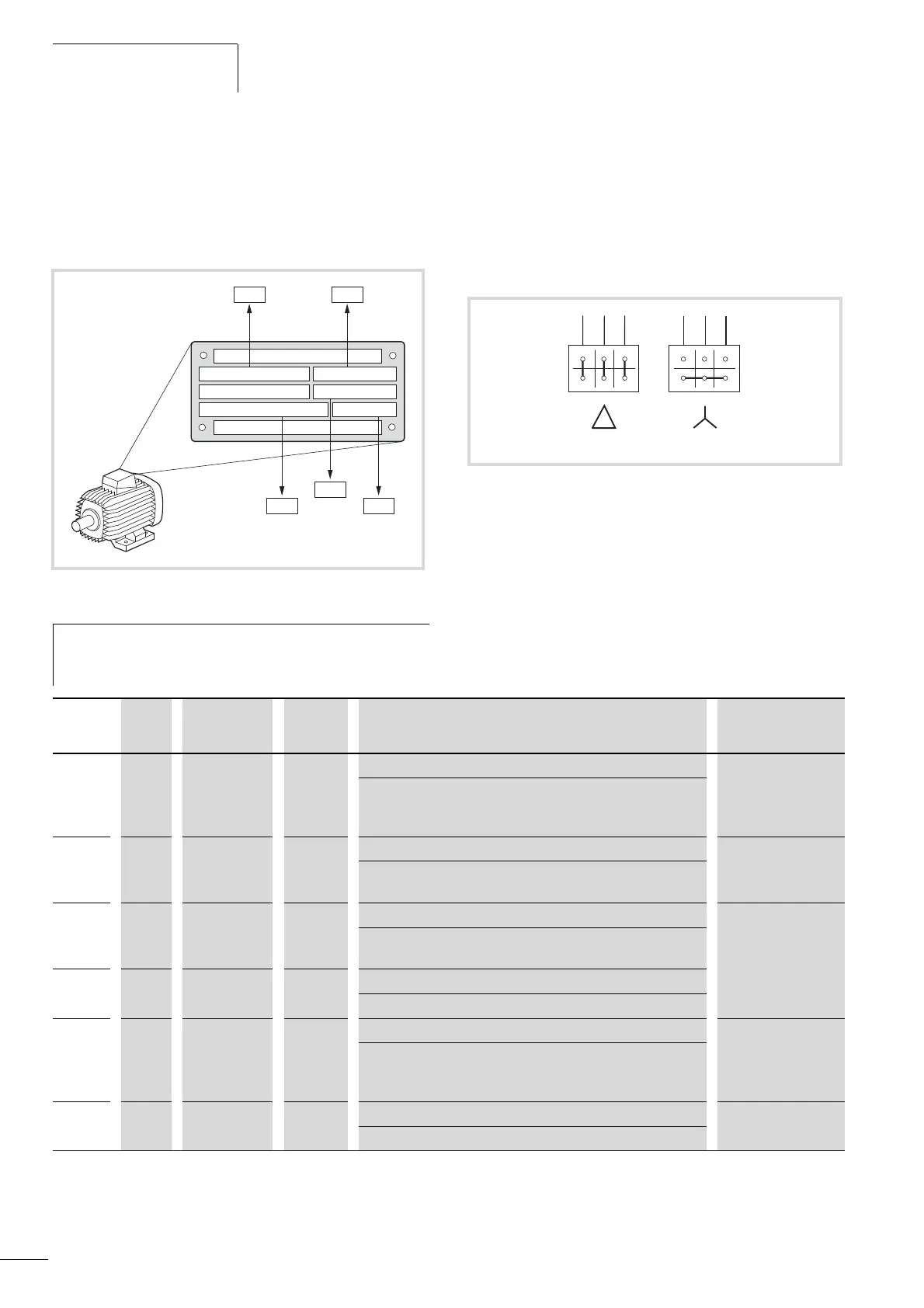

Figure 84: Motor parameters from ratings plate
h
The motor data is set to the rated operation data for the
frequency inverter and depends on the performance
variables in factory settings (see
1)
).
1410 min
230/400 V 4.0/2.3 A
50 Hz
-1
0,75 KW
cos v 0.67
P7.5
P7.1
P7.3
P7.6
P7.4
Figure 85: Circuits (delta, star)
U1 V1 W1
W2 U2 V2
U
LN
= 230 V
U1 V1 W1
W2 U2 V2
U
LN
= 400 V
PNU ID Access right
RUN
Value Description Factory setting
(P1.3)
P7.1 113 - Motor, rated operational current 4.8
1)
Setting range: 0.2 x I
e
-2xI
e
[A]
I
e
= Frequency inverter’s rated operational current
(
h motor rating label).
P7.2 107 - Current limitation 7.2
1)
Setting range: 0.2 x I
e
-2x I
e
[A]
Factory setting: 1.5 x I
e
P7.3 112 - Motor, rated speed 1440
1720
Setting range: 300 – 20000 rpm (min
-1
)
(h Motor ratings plate).
P7.4 120 - Motor, power factor (cos v) 0.85
1)
Setting range: 0.30 – 1.00 (h Motor ratings plate)
P7.5 110 - Motor, rated operating voltage 230
1)
Setting range: 180 – 500 V (h Motor ratings plate).
Pay attention to the supply voltage and the type of circuit in the
stator winding!
P7.6 111 - Motor, rated frequency 50.00
60.00
Setting range: 30 – 320 Hz (h Motor ratings plate).
1) Example:
Values of the MMX12AA4D8…factory setting in coordination with the nameplate of the figure 84.
Single-phase connection of the (MMX12A…) frequency inverter to a 230 V mains voltage. The stator winding of the motor is connected in a delta
circuit (rated motor current 4 A).
Required changes of parameters for the electrical image of the motor: P7.1 = 4.0, P7.3 = 1410, P7.4 = 0.67.
