XMX-NET-CO-A
155
XMX-NET-CO-A
CANopen interface card
XMX-NET-CO-A enables the connection (slave) of frequency
inverters of the M-Max™ series to the standard CANopen
fieldbus.
The fieldbus connection is then implemented via pluggable 5-pole
screw terminals.
Technical data:
• Communication protocol: CiA DS-301, CiA-DSP-402.
• Data transfer: CAN (ISO 11898).
• Transfer rate (adjustable): 10 Kbit/s to 1 Mbit/s.
• Maximum cable length depending on the transfer rate
(without booster): 30 m to 2.5 km.
• Addressing (adjustable): 1 - 127.
• Status indication via LEDs

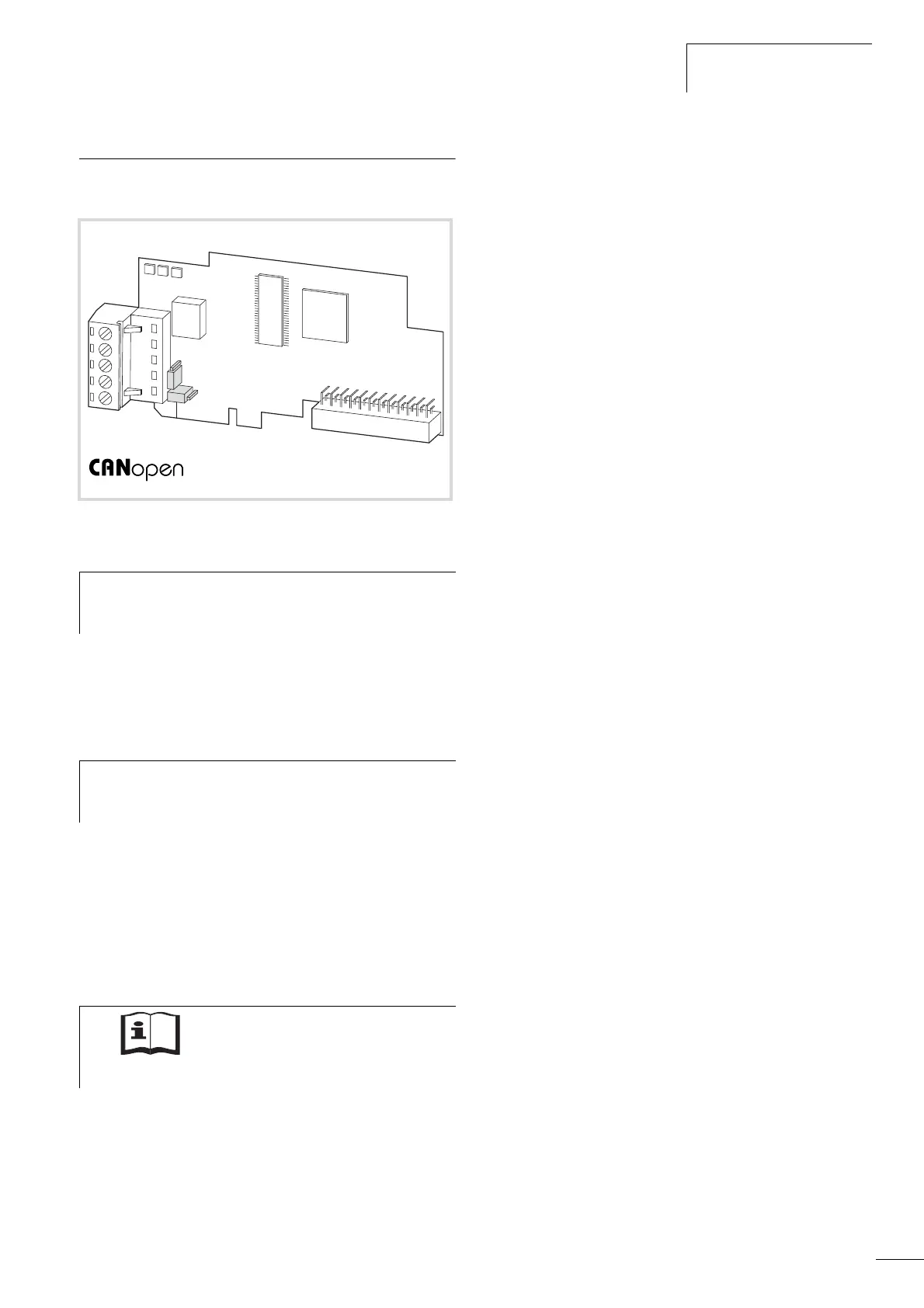

Figure 114: CANopen fieldbus interface card
XMX-NET-CO-A
h
The CANopen fieldbus interface card
XMX-NET-CO-A is not supplied with the M-Max™
frequency inverter.
h
The optional MMX-NET-XA mounting frame is required
for mounting and connecting the MMX frequency
inverter.
Further information on hardware and
engineering the XMX-NET-CO-A
interface card is provided in the manual
AWB8240-1632 manual.
