Eaton MMX11 Series User Manual

Parameters
04/10 MN04020001Z-EN
112

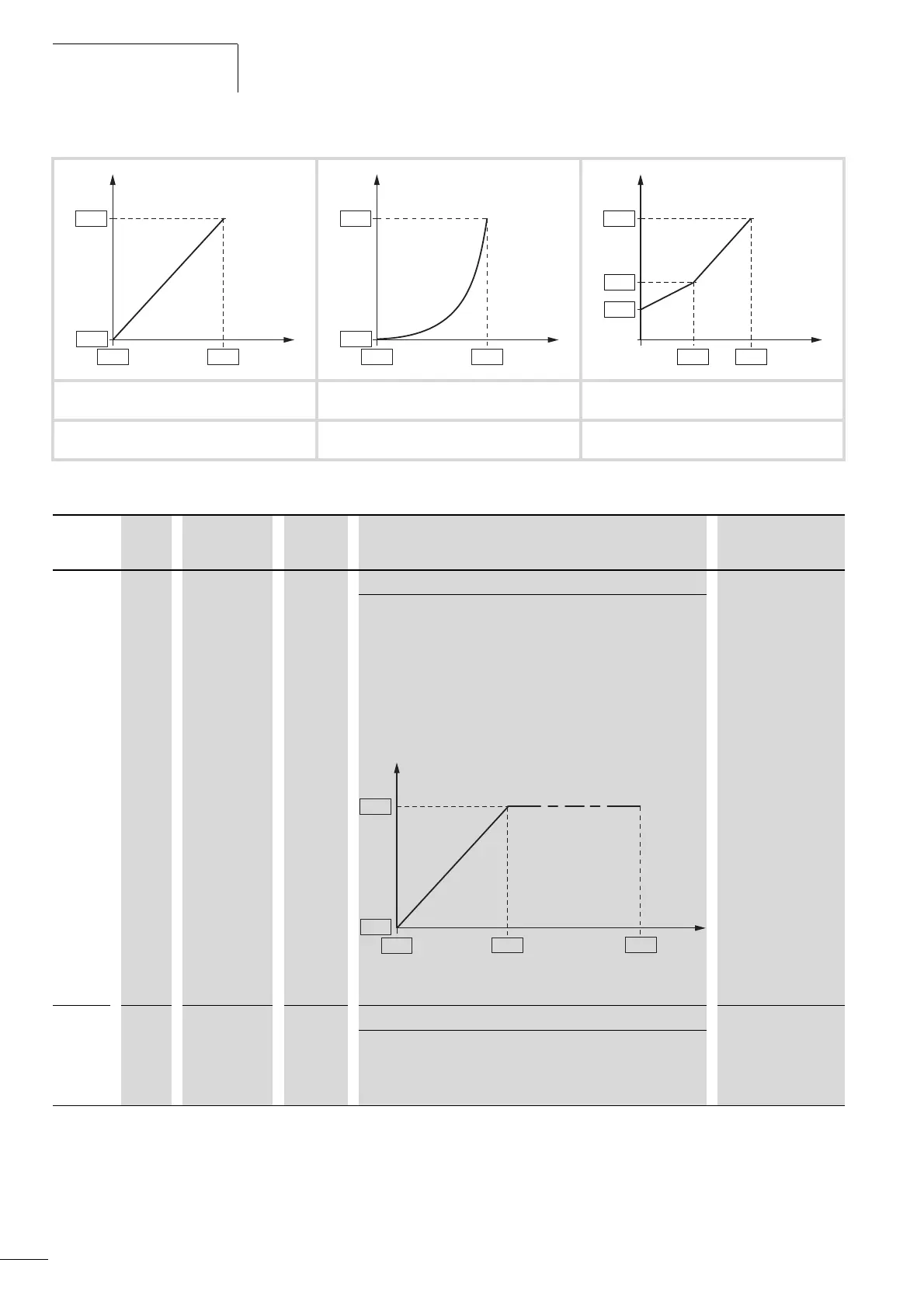

Characteristic curve:U/f (P11.1) linear quadratic parameterizable
P11.1 = P11.1 = 1 P11.1 = 2
Figure 97: U/f-characteristic curve (P11.1)
PNU
ID Access right
RUN
Value Description Factory setting
(P1.3)
P11.2 602 - Cut-off frequency 50.00
60.00
30.00 – 320.00 Hz
The output voltage reaches its maximum rated value P11.3 with
the cut-off frequency. For example: 400 V at 50 Hz.
If the maximum output frequency (P6.4) is set to higher values, the
output voltage remains constant as of the cut-off frequency
defined here.
As of this cut-off frequency, the voltage/frequency ratio is no
longer constant. The magnetization of the connected motor is
reduced with increasing frequency (field weakening range).
Example: linear U/f characteristic curve with cut-off frequency and
field weakening range.
P11.3
603 - Output voltage 100.00
10.00 – 200.00 % of mains voltage
In the standard application, the value set here is equal to 100 %
of the mains voltage supply and corresponding with the nominal
motor voltage set under P7.5 (
h ratings plate motor).
[%]
U
f
[Hz]
P11.6
P11.3
P6.3
P11.2
[%]
U
f
[Hz]
P11.6
P11.3
P6.3
P11.2
[%]
U
f
[Hz]
P11.6
P11.5
P11.3
P11.2
P11.4
[%]
U
f
[Hz]
P11.6
P11.3
P6.3
P11.2
P6.4
