The following table shows the preset application parameters of
parameter P1.2. in the factory setting.
With P1.1 = 1 you are guided through the drive parameters in
steps (Quickstart Wizard) after the power supply is switched on
and after the factory settings are activated.

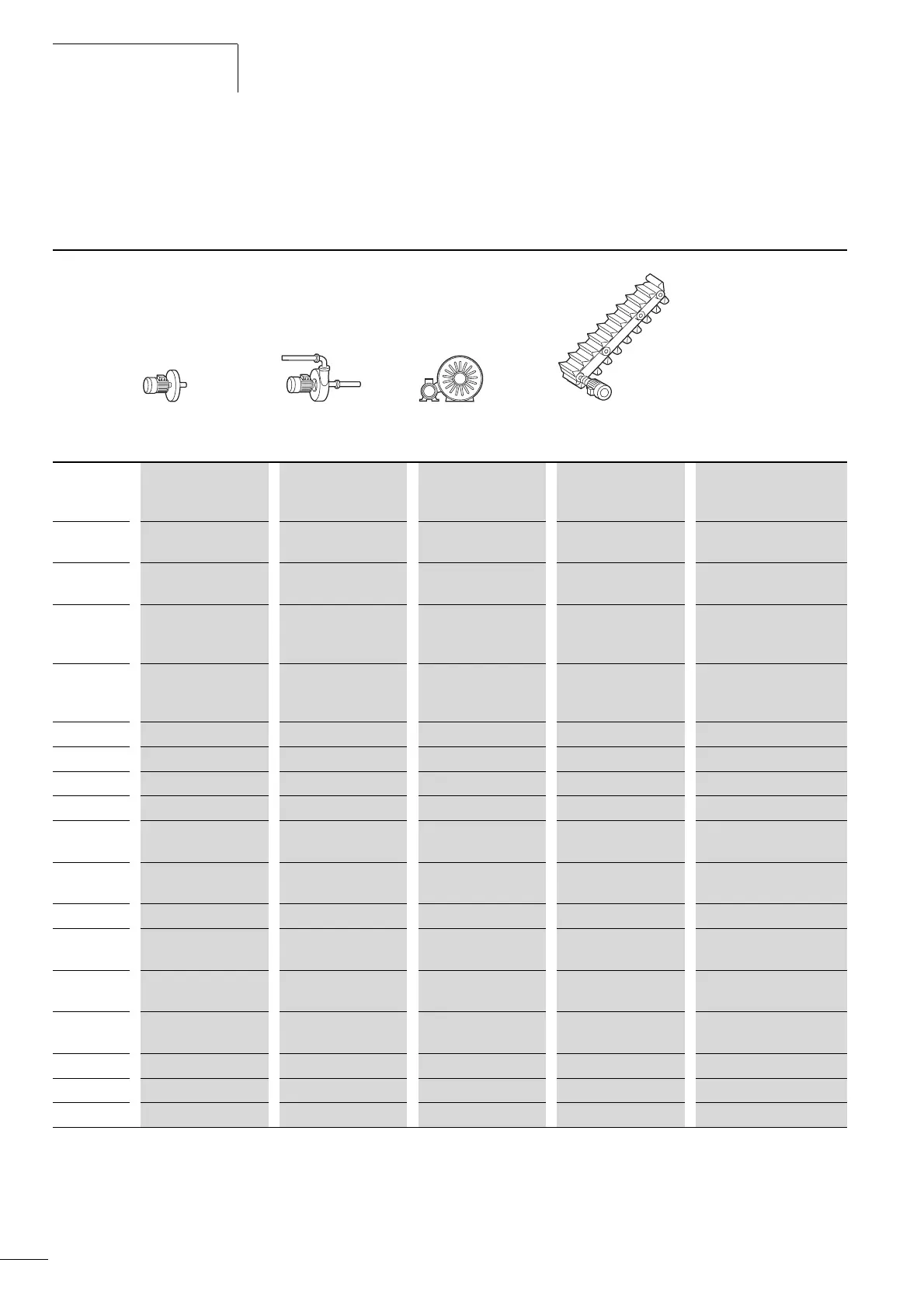

Table 8: Predefined application parameters from parameter P1.2
Parameter
(PNU)
Basic
(Standard drive)
Pump drive Fan drive Feed unit
(high load)
Designation
P1.1
1 = Only quick
configuration
parameters
1 = Only quick
configuration
parameters
1 = Only quick
configuration
parameters
1 = Only quick
configuration
parameters
Parameter conceal
P1.2
0 = Basic 1 = Pump drive 2 = Fan drive 3 = Hoisting device
(high load)
Drive Setup
P1.3 0=EU 0=EU 0=EU 0=EU Country specific default
settings
P6.1 1 = Control signal
terminals (I/O)
(I/O)
1 = Control signal
terminals (I/O)
(I/O)
1 = Control signal
terminals (I/O)
(I/O)
1 = Control signal
terminals (I/O)
(I/O)
Control place 1
P6.2
3 = AI1 (analog
setpoint 1)
3 = AI1 (analog
setpoint 1)
3 = AI1 (analog
setpoint 1)
3 = AI1 (analog
setpoint 1)
Setpoint definition
(0 –10V) of control signal
terminal 2
P6.3 0.00 Hz 20.00 Hz 20.00 Hz 0.00 Hz Minimum frequency
P6.4 50.00 Hz 50.00 Hz 50.00 Hz 50.00 Hz Maximum frequency
P6.5 3.0 s 5.0 s 20.0 s 1.0 s Acceleration time (acc1)
P6.6
3.0 s 5.0 s 20.0 s 1.0 s Deceleration time (dec1)
P6.7 0 = Ramp
(acceleration)
0 = Ramp
(acceleration)
0 = Ramp
(acceleration)
0 = Ramp
(acceleration)
Start function
P6.8
0 = Fee coasting 1 = Deceleration time
(ramp)
0 = Fee coasting 0 = Fee coasting Stop function
P7.1 I
e
I
e
I
e
I
e
Motor, Rated current
2)
P7.3 1440 rpm 1440 rpm 1440 rpm 1440 rpm Motor, nominal speed
(rpm)
P7.4
0.85 0.85 0.85 0.85 Motor, power factor
(cos v)
2)
P7.5 230/400 V
1)
230/400 V
1)
230/400 V
1)
230/400 V
1)
Motor, rated operating
voltage
P7.6
50.00 Hz 50.00 Hz 50.00 Hz 50.00 Hz Motor, rated frequency
P11.7
0 = Deactivated 0 = Deactivated 0 = Deactivated 1 = Enabled Torque increase
M1.1 0.00 Hz 0.00 Hz 0.00 Hz 0.00 Hz Output frequency
1) 230 V = MMX11…, MMX12…, MMX32…
400 V = MMX34…
2) Depends on performance variables.
