Renewal Parts
Effective: February 2009 Page 19
Current Cutler-Hammer
Panelboards
Panelboard Trim Locks

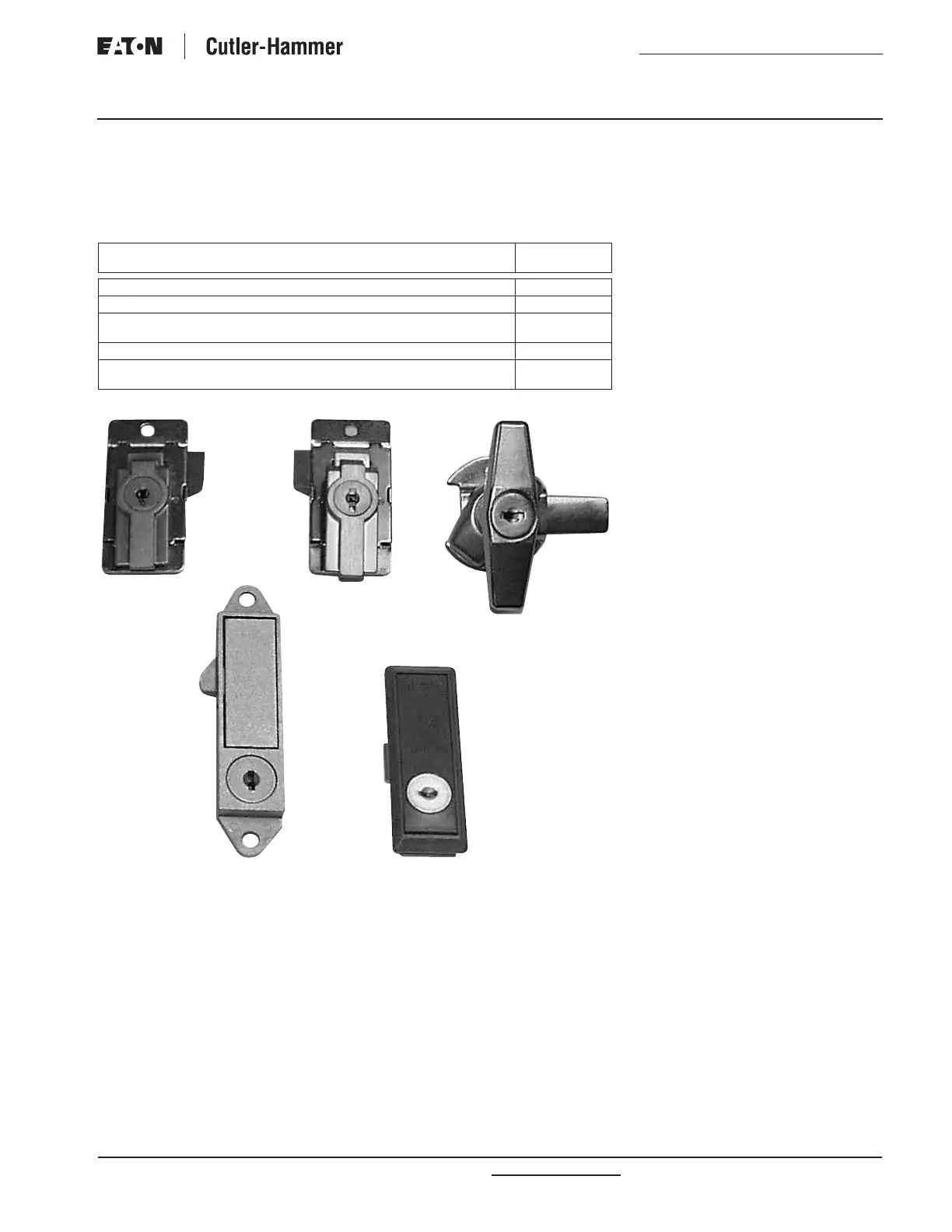

Panelboard trims use different trim locks, see pictures below for styles and part
numbers. Contact your nearest Satellite for availability on the styles listed below.
See Page 4 for Satellite listings.
Table 20. Panelboard Trim Locks
Description Catalog
Number
For use on left-handed door. (Hinged on left side.) K80522
For use on right-handed door. (Hinged on right side.) K80133
T–Handle lock, at one time used on all trims over 48.00 inches (1219.2 mm)
in height. Also used on outdoor NEMA 12/3R trims.
K80429
Used on PRL4 lighting and power panels as standard. 1A32258H03
Used on PRL1, 2, 3 and PRL1a, 2a, 3a lighting panels as standard.
WEM 2 key.
5155C81G01
K80522
K80133
K80429
1A32258H03
5155C81G01
