Installation
10 S811+ Soft Starter MN03900001E—November 2012

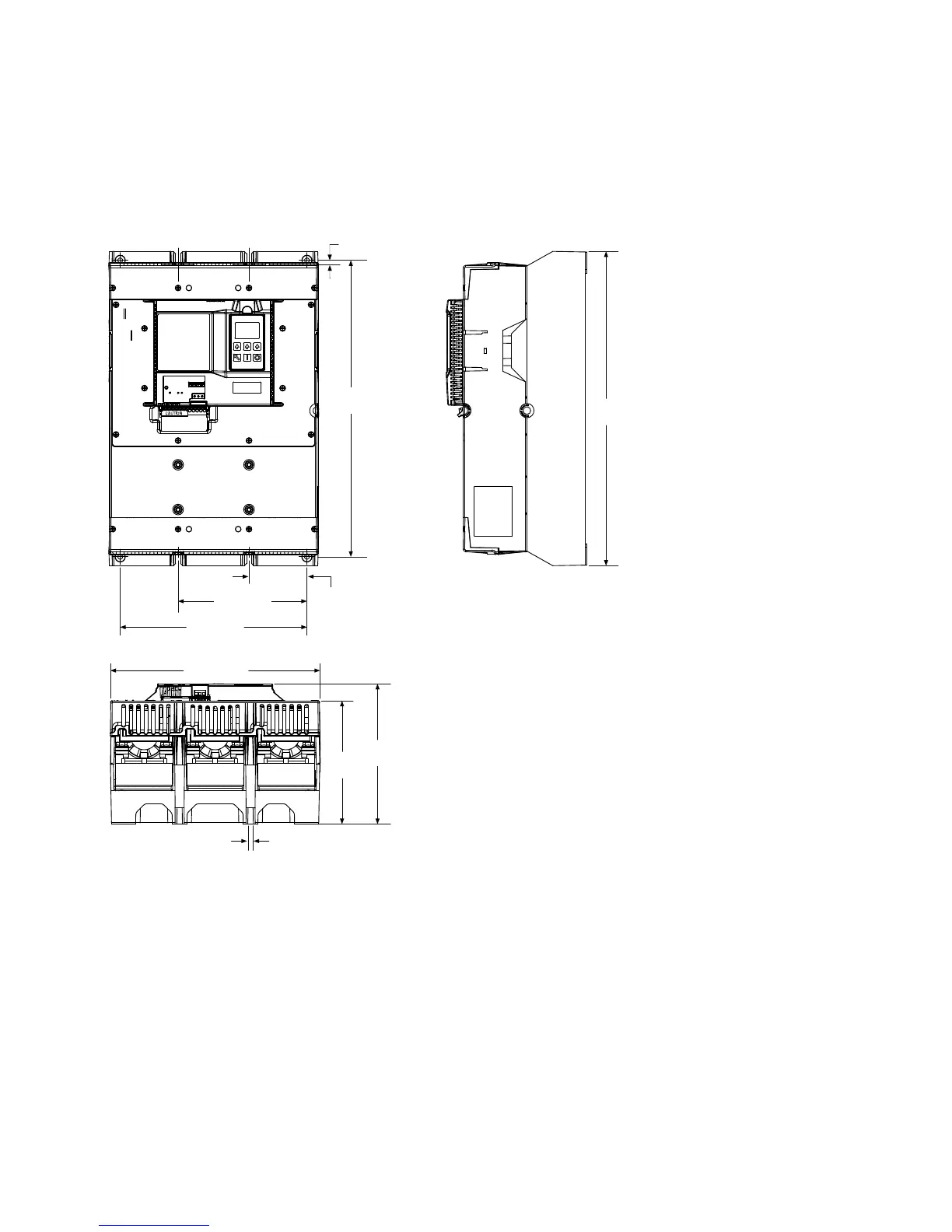

Approximate Dimensions in inches (mm)
S811+V…
6.79 (172.5)
0.236
(6.00)
3.05
(77.5)
9.84 (250.0)
15.63
(397.0)
4X Ø
0.2650
(6.731)
6.50
(165.1)
7.39
(187.8)
11.05 (280.6)
16.57
(420.8)
