S811+ Operating Configuration
30 S811+ Soft Starter MN03900001E—November 2012
S811+ Operating Configuration
Introduction
The S811+ has a wide range of operation and protection
parameters to enable coordinated motor and load protection.
Commonly used parameters are directly accessible through
the Digital Interface Module (DIM).
The unit is supplied with default settings that accommodate
general induction motor applications that provide very basic
motor protection. The user should adjust the parameters to
their specific application.
User Interface
A Digital Interface Module (DIM) is used to configure all
models of the S811+ Soft Starter.

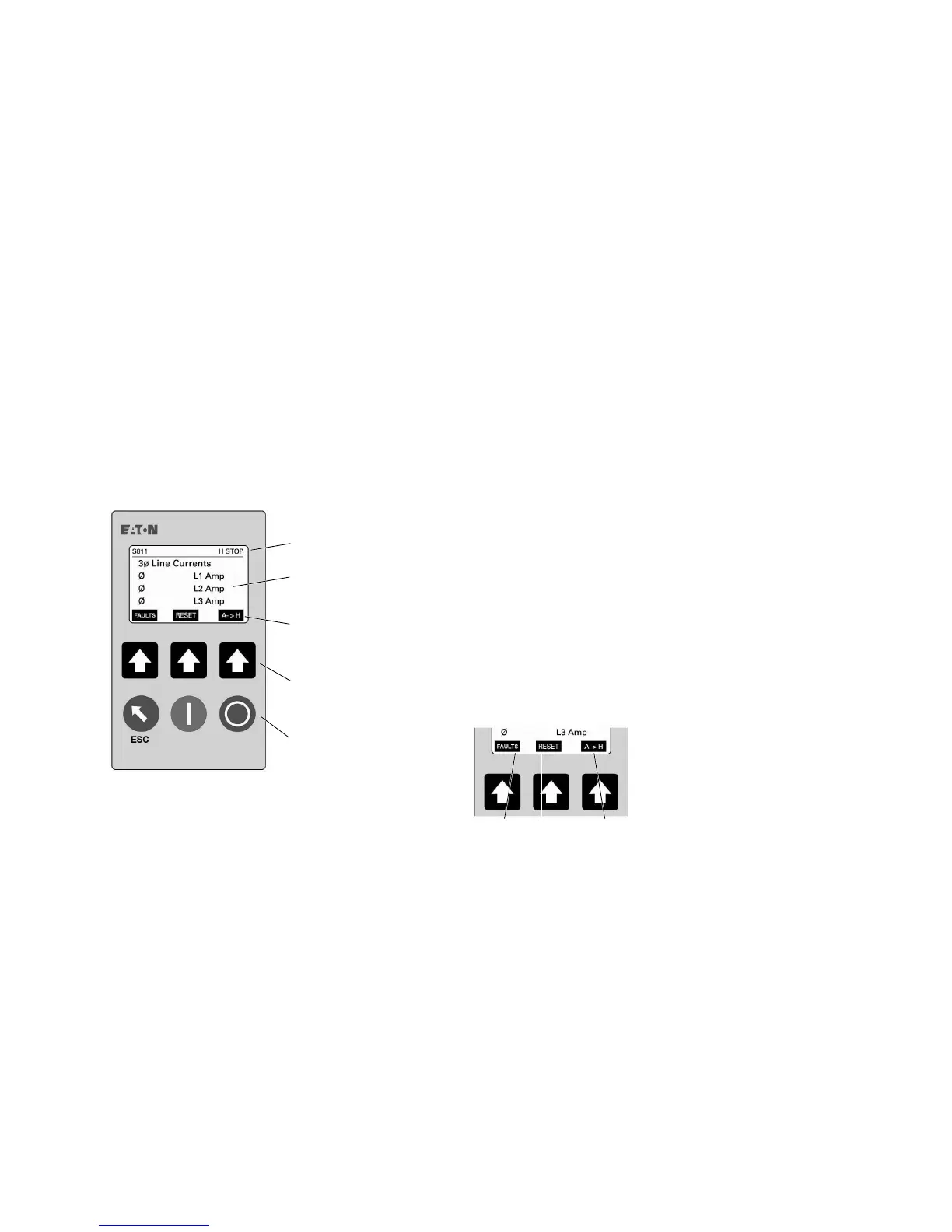

Digital Interface Module (DIM)
The Status Bar at the top of the display indicates the
operating and communicating status of the S811+ and DIM.
●
Motor control status may be;
●
Stop—Motor stopped.
●
Run1—Run (Start command) during ramp.
●
Run2—Jog
●
Ref—Motor at synchronous speed, internal bypass
contactors closed.
●
Flt.—Faulted
●
Warn—Warning
●
The center of the display shows the value of the selected
S811+ parameter. The default display at power-up is “3 ø
Line Currents”.
●
The Alpha Numeric Data Display Area displays system and
parameter values.
●
Three Soft Key Functions at the bottom of the display
indicate the functions of the Soft Keys (pushbuttons)
directly below them. The Soft Key Functions will change as
you navigate through the different menus of the DIM.
●
Soft Keys are used to perform several functions and
navigate through parameter menus. Functionality of the
soft keys change with menu selection.
Soft Keys
Note: The FAULTS key (left-hand UP arrow key) shown in the
Default Display at power up may be set to JOG
function with the Local JOG button enable parameter
found in the LCD DIM Setup menu.
Status Bar—Connection, ISD Wiring
Config., Hand/Auto and Motor Control
Status
Alphanumeric Display—Menu, Data,
Parameter Edit Data
Soft Key Functions—Functionality
of Soft Keys
Soft Keys—Menu Navigation
Predefined Keys—Escape,
Start, Stop Keys
FAULTS RESET A>H = Default Display at power up.
PREV NEXT <ENTER> = Menu Navigation selections
PREV NEXT = Uneditable Parameter Navigation
PREV NEXT <EDIT> = Editable Parameter Navigation
DEC INC <SAVE> = Adjust or Save Parameter value
PREV NEXT <MORE> = Fault/Warning Navigation
GROUP MEMBER <SEND> = Network Navigation
