Installation
S811+ Soft Starter MN03900001E—November 2012 21

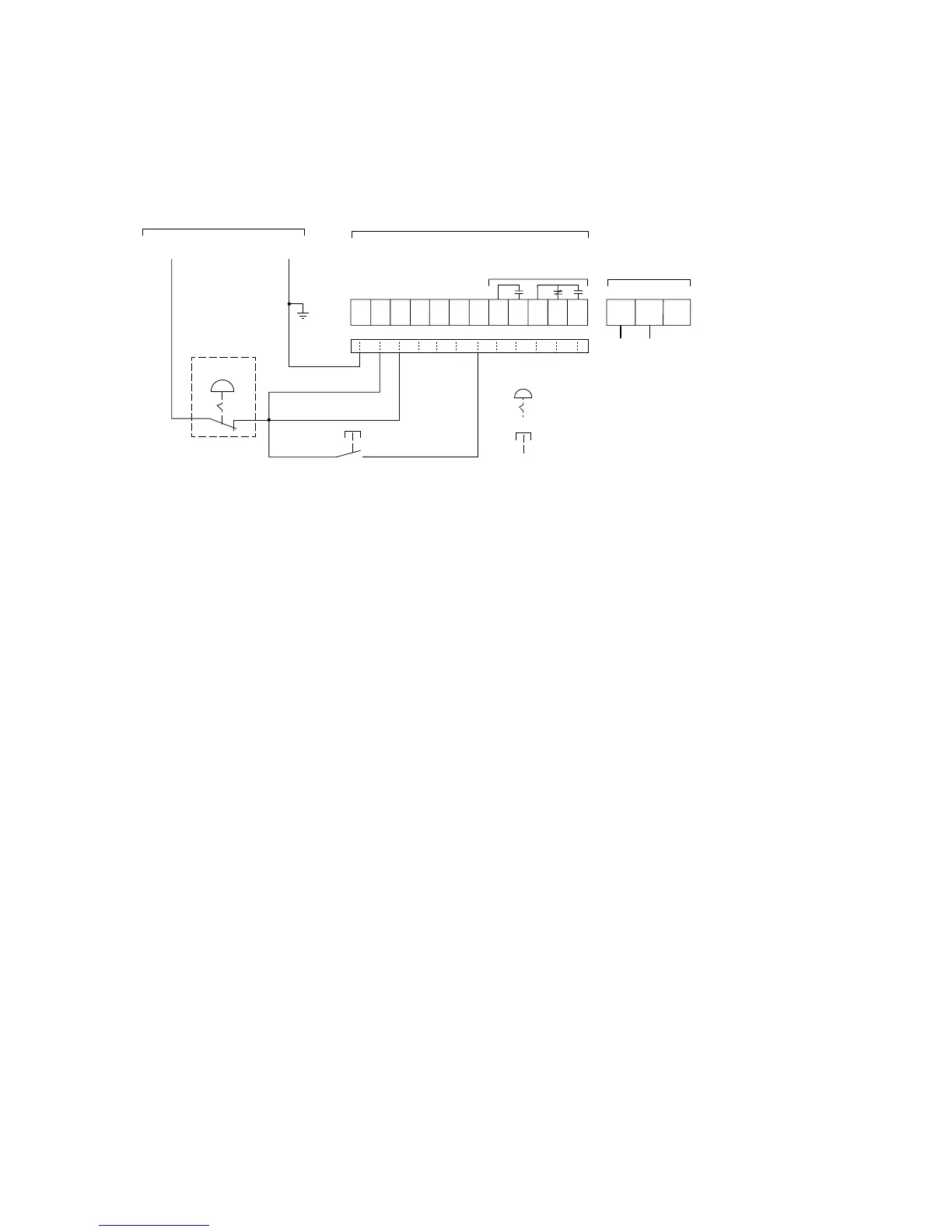

Basic Connection Diagram for Network Control
Notes
1. A minimum wire of 14 AWG (2.5 mm
2
) should be used
between the control power supply and the control
terminal block.
2. See Using an Auxiliary Relay section below if it is desired
to use a relay instead of an indicating lamp for terminals
13, 14, 95, 96 and 98.
3. 120 Vac may be applied to terminals 13, 14, 95, 96,
and 98.
4. Add ferrite, Fair-Rite #0446176451 to D/C Power Leads
and Control I/O Leads (all through one ferrite) at S811+.
5. Functionality of terminals 1, 2, 3, and 4 are shown in the
default configuration. These terminals are programmable
for other functions.
6. Auxiliary relays: 3 amps at 120 Vac or 24 Vdc, 10 amps
max. (resistive) switching.
7. The Local Control must be disabled to allow Network
Control.
