SVX9000 Adjustable Frequency Drives
Open Drives
SVX9000 Open Drives
SVX9000 Open Drives

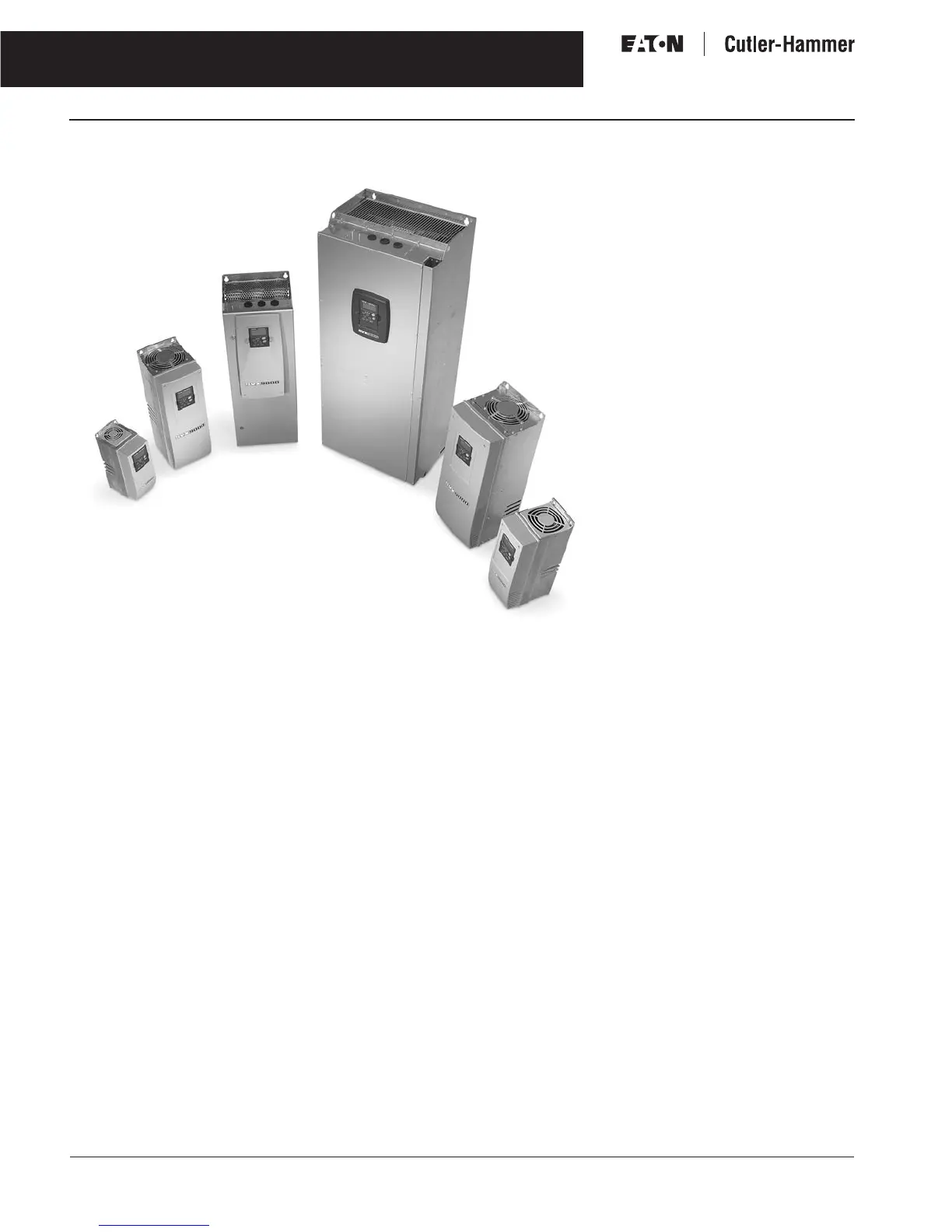

Product Description
Cutler-Hammer
®
SVX9000 Series
Adjustable Frequency Drives from
Eaton’s electrical business are the
next generation of drives specifically
engineered for today’s commercial
and industrial applications. The power
unit makes use of the most sophisti-
cated semiconductor technology and a
highly modular construction that can
be flexibly adapted to the customer’s
needs.
The input and output configuration
(I/O) is designed with modularity in
mind. The I/O is compromised of
option cards, each with its own input
and output configuration. The control
module is designed to accept a total of
five of these cards. The cards contain
not only normal analog and digital
inputs but also fieldbus cards.
These drives continue the tradition of
robust performance, and raise the bar
on features and functionality, ensuring
the best solution at the right price.
Features
■
Robust design — proven 500,000
hours MTBF
■
Integrated 3% line reactors standard
on drives from FR4 through FR9
■
EMI/RFI Filters H standard up to
200 hp I
H
480V, 100 hp I
H
230V
■
Simplified operating menu allows
for typical programming changes,
while programming mode provides
control of everything
■
Quick Start Wizard built into the pro-
gramming of the drive ensures a
smooth start-up
■
Keypad can display up to three moni-
tored parameters simultaneously
■
LOCAL/REMOTE operation from
keypad
■
Copy/Paste function allows transfer
of parameter settings from one
drive to the next
■
Standard NEMA Type 12 keypad on
all drives
■
The SVX can be flexibly adapted to
a variety of needs using our pre-
installed “Seven in One” Precision
application programs consisting of:
❑
Basic
❑
Standard
❑
Local/Remote
❑
Multi Step Speed Control
❑
PID Control
❑
Multi-Purpose Control
❑
Pump and Fan Control with Auto
Change
■
Additional I/O and communication
cards provide plug and play
functionality
■
I/O connections with simple quick
connection terminals
■
UL Listed
■
Hand-Held Auxiliary 240 Power Sup-
ply allows programming/monitoring
of control module without applying
full power to the drive
■
Control logic can be powered from
an external auxiliary control panel,
internal drive functions and fieldbus
if necessary
■
Brake Chopper standard from:
1 – 30 hp/380 – 500V
3/4 – 15 hp/208 – 230V
■
NEMA Type 1 and NEMA Type 12
enclosures available, Frame Sizes
FR4 – FR9
■
Open Chassis FR10 and greater
■
NEMA Type 1 and NEMA Type 12
available in FR10 Freestanding
design; NEMA Type 1 available in
FR11 Freestanding design
■
Standard option board configura-
tion includes an A9 I/O board and an
A2 relay output board installed in
slots A and B

Eaton SVX9000 Series Specifications

General

Communication Protocols	Modbus RTU, CANopen
Protection Features	Overcurrent, Overvoltage, Short Circuit, Over Temperature
Cooling Method	Forced Air Cooling
Operating Temperature	-10°C to +50°C
Humidity	5% to 95% non-condensing
