SVX9000 Adjustable Frequency Drives
Enclosed Drives
Enclosure Size 1
Table 86. Approximate Dimensions and Shipping Weight — Enclosed Products
Table 86. Approximate Dimensions and Shipping Weight — Enclosed Products (Continued)
Table 86. Approximate Dimensions and Shipping Weight — Enclosed Products (Continued)

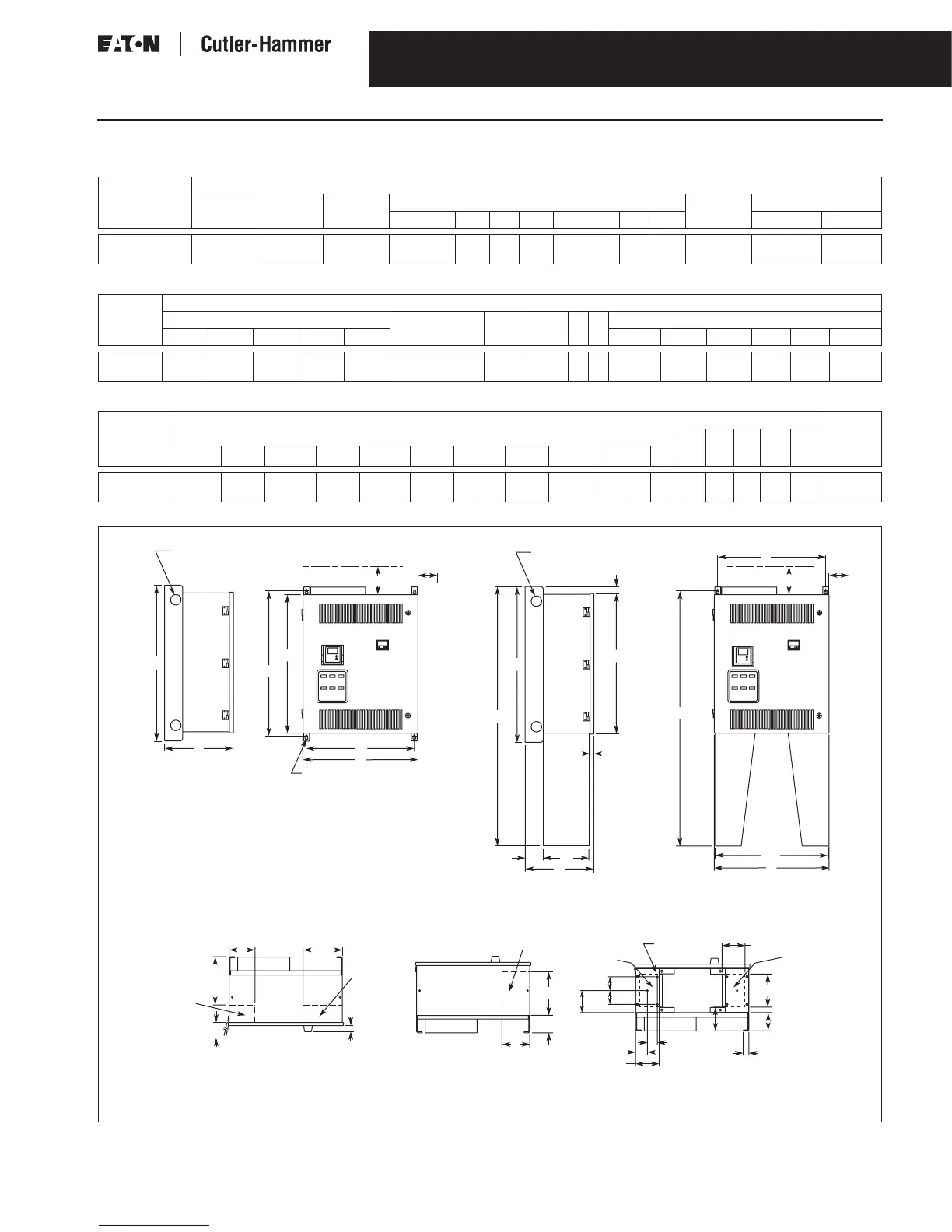

Figure 23. Approximate Dimensions
Enclosure
Size
Dimensions in Inches (mm)
Wide
A
High
B
Deep
C
Mounting H Min. Air Space
D D1 E E1 F G G1 J K
1 26.4
(669)
36
(914)
16.3
(414)
24.8
(630)
— — — 34.0
(864)
— — 32.4
(822)
4.0
(102)
3.0
(76)
Enclosure
Size
Dimensions in Inches (mm)
Cable Entry Door Clearance
S
T U V W Floor Stand
L M N P R X Y Z AA BB CC
1 11.0
(279)
6.0
(152)
9.0
(229)
10.0
(254)
6.5
(165)
26.4
(669)
1.5
(38)
4.3
(108)
— — 56.0
(1422)
4.3
(108)
11.1
(281)
1.8
(46)
0.8
(19)
55.2
(1402)
Enclosure
Size
Dimensions in Inches (mm) Max.
Approx.
Ship. Wt.
lbs. (kg)
Floor Stand RR SS TT UU VV
DD EE FF GG HH JJ KK LL MM NN PP
1 26.0
(660)
3.5
(90)
5.5
(141)
3.0
(76)
6.0
(152)
2.0
(51)
5.4
(136)
1.1
(28)
8.8
(224)
5.4
(137)
— — — — — — 230 (104)
Bottom View
C
2.50 (63.5)
Lifting Holes
4 Places
.44 (11.2)
Mounting Holes
4 Places
D
A
.44 (11.2)
Mounting Holes
6 Places
H
F
K K
J
M N
S
L
T
U
P
R
Top View
NEMA Type 1, NEMA Type 12
with Floor Stand
NEMA Type 1, NEMA Type 12
NEMA Type 12 Includes Cover Plates Over Louvers
B
C
2.50 (63.5)
Lifting Holes
4 Places
B
X
H
AA
DD
A
CC
J
U
MM
KK
EE
EE
FF
JJ
GG
HH
LL
NN
ZY
BB
D
Bottom View
NEMA Type 1, NEMA Type 12
with Floor Stand
For Reference Only,
Dimensions Subject
to Change.
For Cable
Entry
For Cable
Entry
For Cable
Entry
For Cable
Entry
For Cable
Entry
