STARTER SYSTEM
CS-2510TES
250Ts, 250TCs
8

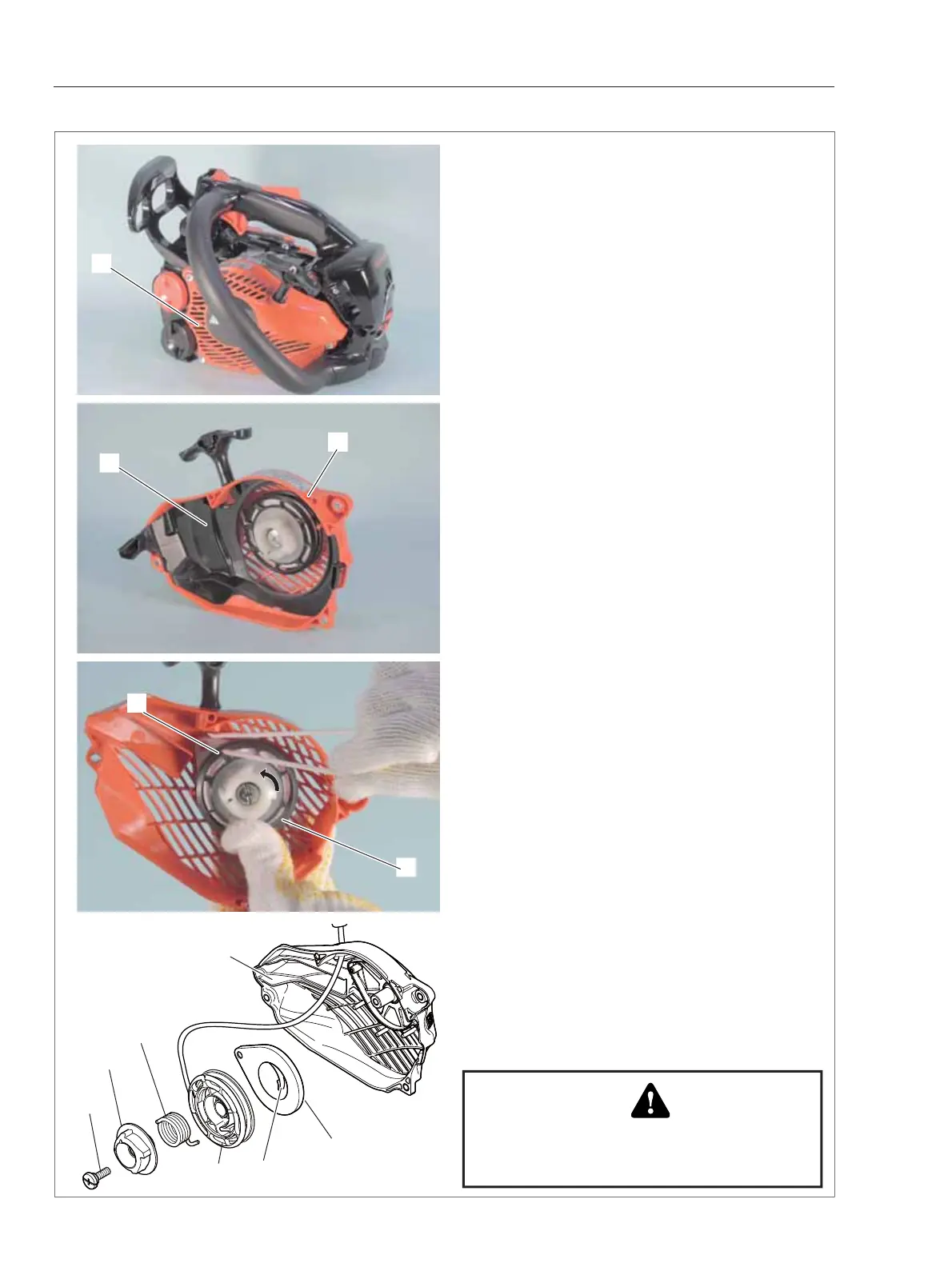

2-1 Disassembling starter assembly
1. Remove three bolts and remove starter assem-
bly (A) from unit.
2. Remove fan cover (B) from starter assembly (A).
3. Pull out starter rope about 30cm (12in) and hold
rope reel (C) by hand. Loop excess rope in rope
reel notch (c) as shown.
4. Rotate rope reel (C) counterclockwise to release
tension of rewind spring.
5. Remove screw (D).
6. Remove pawl catcher (E) and power spring (F).
7. Remove rope reel (C) from starter case (G)
slowly to prevent rewind spring (H) from unwind-
ing.
8. Remove rewind spring case assembly (J) from
starter case (G).
WARNING DANGER
Wear eye protection and take care when
removing rope reel. Rewind spring may un-
wind suddenly and cause personal injury.
A
C
D
E
H
J
G
c
F
C
B
A
