IGNITION SYSTEM
CS-2510TES
250Ts, 250TCs
23

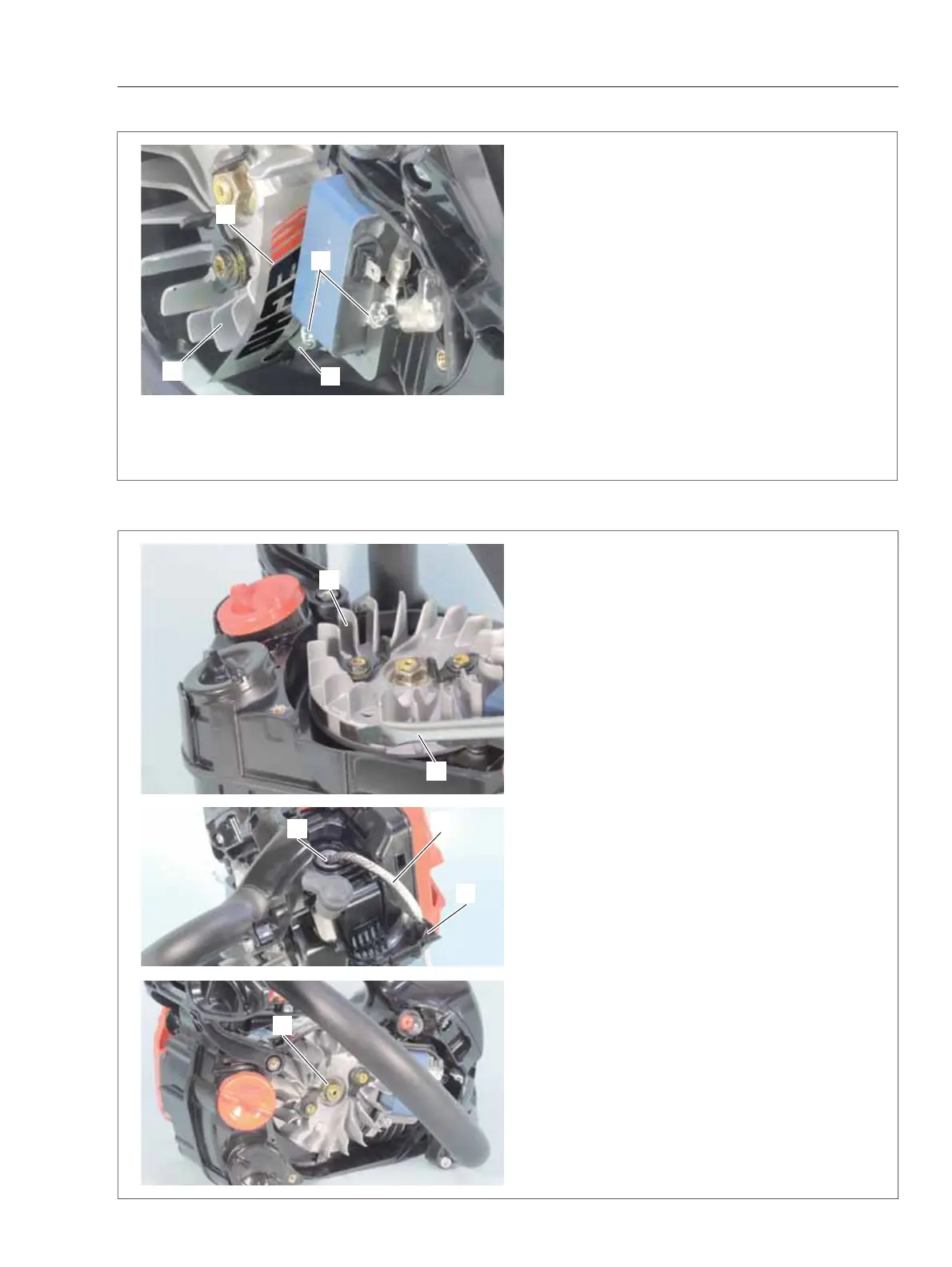

3-8 Setting pole shoe air gaps
1. Loosen two bolts (A) and insert Module air gap
gauge: 91004 (B) or 0.3 - 0.4 mm (0.012 - 0.016
in) thick feeler gauge between fl ywheel (C) and ig-
nition coil shoes (D).
2. Rotate fl ywheel (C) until magnetic poles of fl y-
wheel face ignition coil shoes (D).
3. Hold ignition coil against fl ywheel (C) and tight-
en the bolts (A) (Refer to “3-7 Replacing ignition
coil”). After tightening bolts, remove Module air gap
gauge: 91004 (B) or feeler gauge.
NOTE:
When air gap is too narrow, contact with
fl ywheel may result. When the air gap is too wide,
spark is weak.
4. Reassemble all removed parts.
D
C
A
3-9 Inspecting fl yweel and key
1. Inspect magnetic force of fl ywheel (A) using fl ux
meter, or screwdriver (B) as shown.
2. If magnetic force is weak, replace fl ywheel (A)
as follows.
3. Open cap cover (C). Disconnect spark plug cap
and remove spark plug.
4. Install clean rope (D) in spark plug hole (E) to
stop crankshaft rotation.
NOTE:
Do not use piston stopper to avoid piston
damage.
5. Remove nut (F) by rotating counterclockwise.
NOTE:
Do not use power tool to remove nut (F).
Otherwise, piston damage may occur.
B
A
D
C
F
B
E
To Next Page
