STARTER SYSTEM
CS-2510TES
250Ts, 250TCs
12

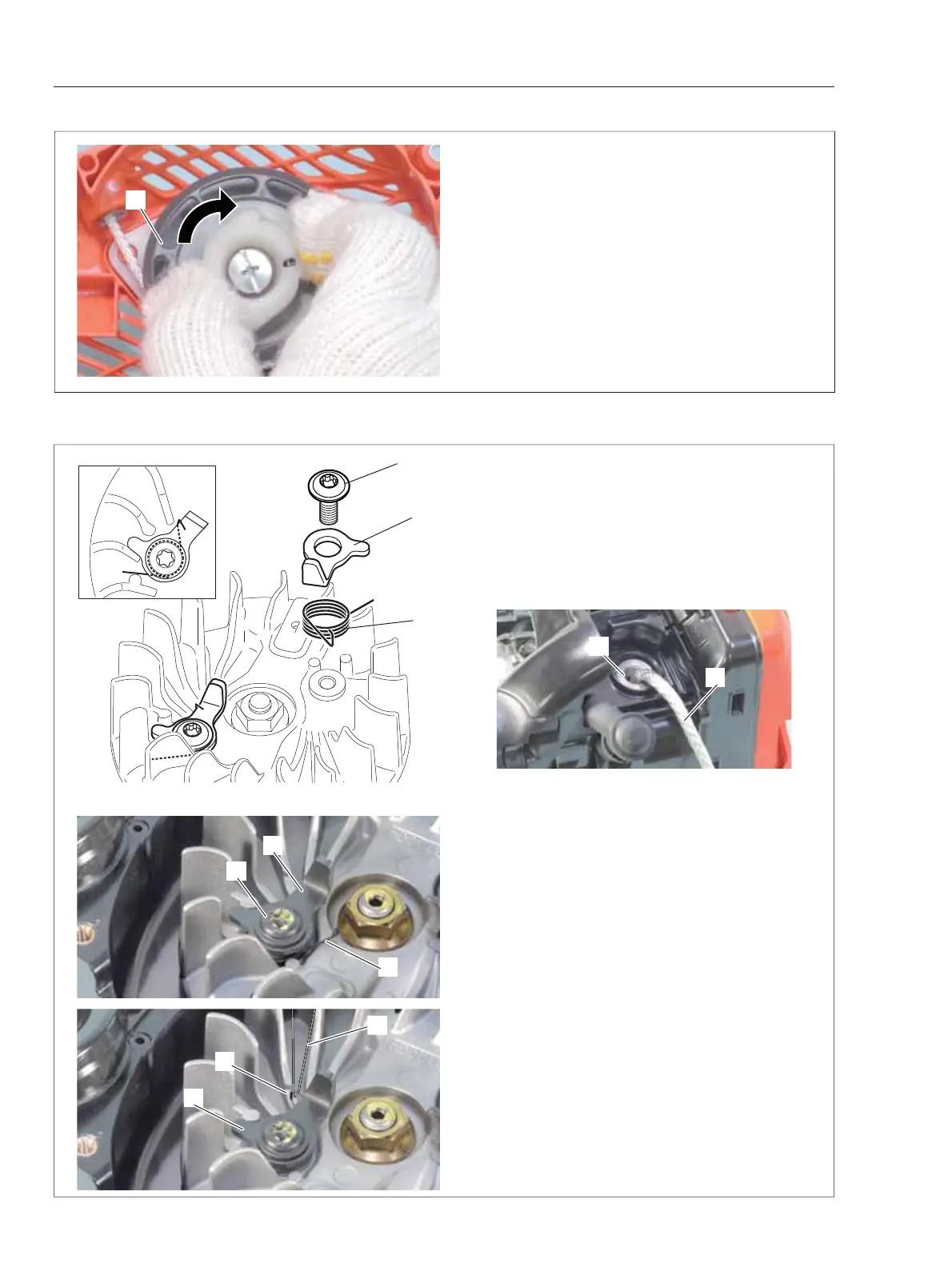

13. Pull out starter rope all the way, and check that
rope reel (F) can be rotated an additional half or
more turn clockwise as shown, to prevent rewind
spring from breaking.
14. If rope reel (F) can not be turned clockwise,
reduce tension by rotating rope reel (F) counter-
clockwise one turn with starter rope hooked at
notch (f5).
15. Reinstall fan cover to starter case.
16. Reassemble starter assembly to unit.
2-3 Assembling starter (continued)
c
1. Remove starter assembly from unit.
2. Loosen bolt (A) and remove pawl (B) and torsion
spring (C). Replace damaged or worn parts.
NOTE:
When it is hard to loosen bolt, install clean
rope (D) in spark plug hole (E) to stop crankshaft
rotation and remove bolt easily.
3. Install torsion spring (C), pawl (B), and bolt (A).
To avoid pinching of torsion spring (C), install these
parts without setting the end (c) of torsion spring (C)
on starter pawl.
4. Using fi ne wire (F) or appropriate tool, place the
end (c) of torsion spring (C) on pawl (B), by hook-
ing and passing under pawl as shown.
5. Make sure pawl (B) can move smoothly. If it
does not move smoothly, check parts for correct
installation.
2-4 Replacing starter pawl
F
C
B
A
E
D
B
A
F
c
B
To Next Page
