IGNITION SYSTEM
CS-2510TES
250Ts, 250TCs
17
3-5 Inspecting ignition switch

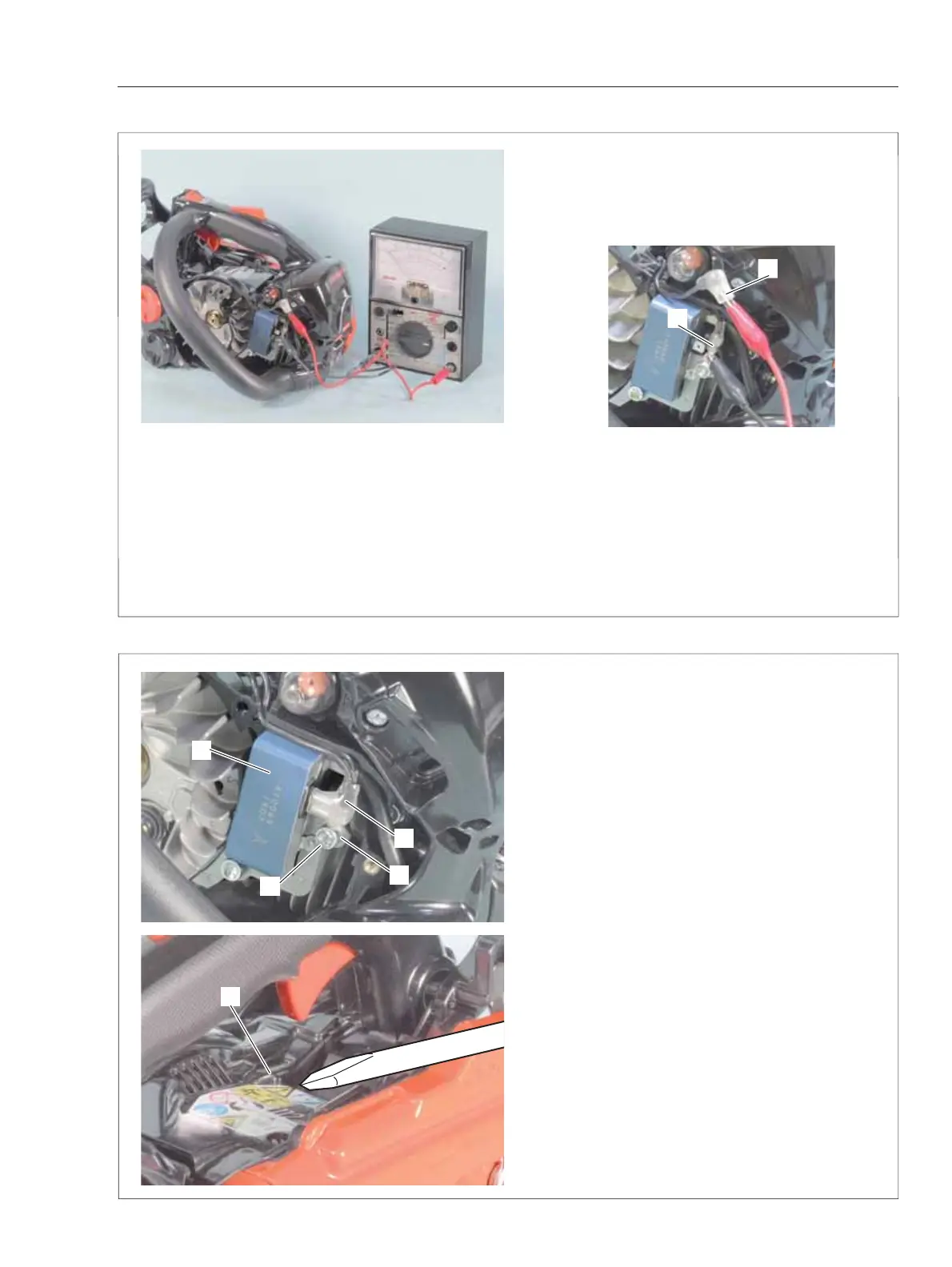

1. Remove starter assembly from unit.
2. Connect one probe of Ohm-meter or multi-meter
to ignition switch terminal (A). Connect the other
probe to another ignition switch terminal (B).
3. When ignition switch is “RUN” position, tester
should indicate infi nite resistance.
4. When ignition switch is in “STOP” position, tes-
ter should show that the circuit is in conducting
state (closed circuit).
5. If ignition switch is defective, replace with a new
one.
B
A
E
C
D
B
3-6 Replacing ignition switch
{Removing}
1. Remove starter assembly from unit.
2. Remove bolt (A), ignition switch terminal (B) and
(C) from ignition coil (D).
3. Insert screwdriver or equivalent between dust
cover (E) and engine cover, and pry dust cover (E)
away from engine cover.
A
