Echo CS-2510TES Service Manual

FUEL SYSTEM
CS-2510TES
250Ts, 250TCs
25

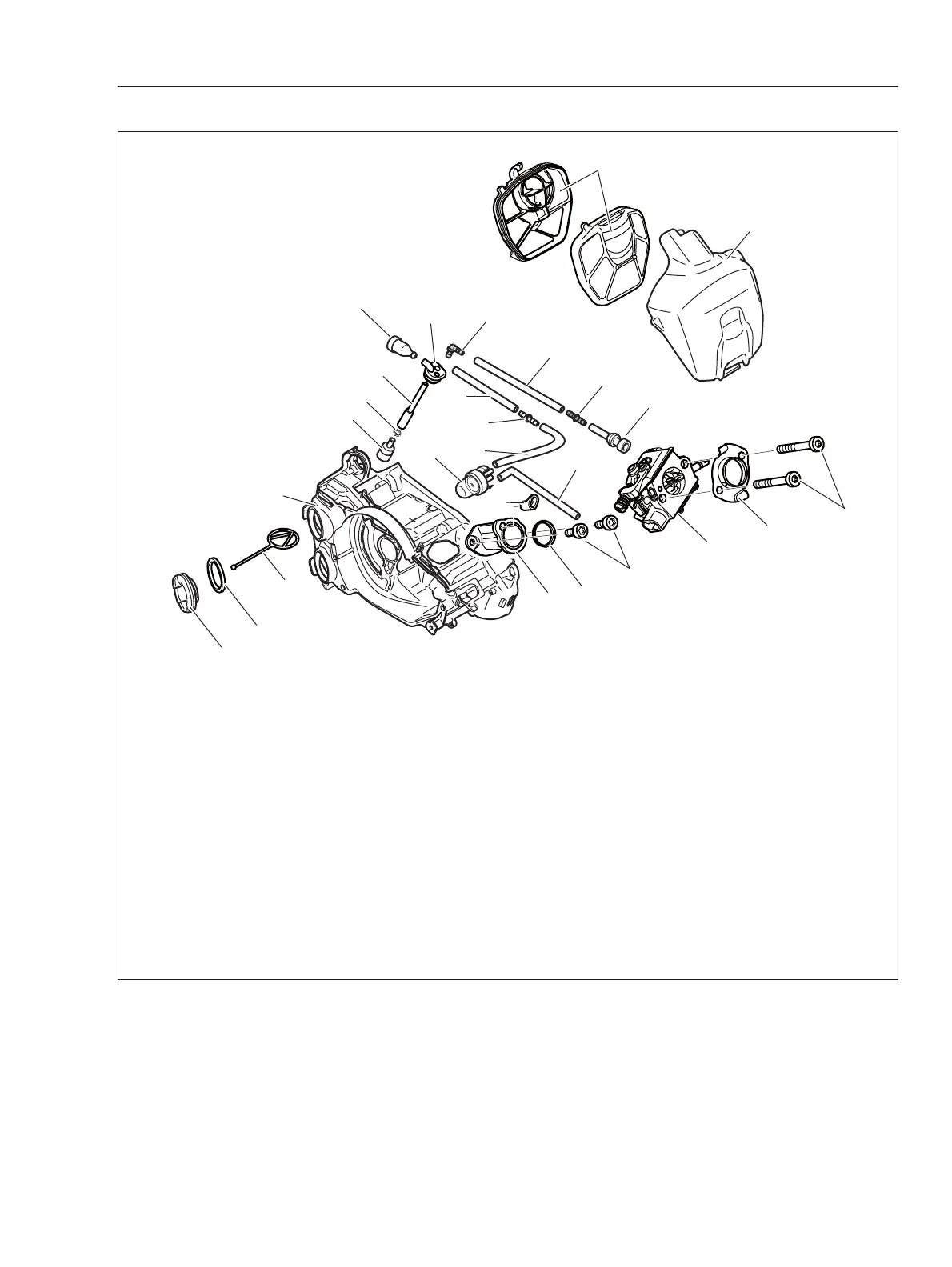

4 FUEL SYSTEM
(D)
(E)
(M)
(H)
(K1)
(W)
(C)
(B)
(L)
(A)
(J)
(G)
(K2)
(N)
(K3)
(R2)
(S)
(R1)
(Q)
(P)
(F)
(T)
(U)
(X)
(Y)
(Z)
(V)
(A) Air cleaner cover
(B) Air fi lter
(C) Fuel cap
(D) Gasket
(E) Connector
(F) Fuel tank
(G) Fuel tank vent
(H) Fuel strainer
(J) Clip
(K1)Fuel line (in fuel tank)
(K2)Fuel line (3x5x95mm)
(K3)Fuel line
(L) Grommet
(M) Joint (L-shaped, black)
(N) Joint (black)
(P) Purge line (L-shaped)
(Q) Purge bulb
(R1)Fuel return line (3x5x58mm)
(R2)Fuel return line (3x5x115mm)
(S) Joint (white)
(T) Intake bellows
(U) Collar
(V) Collar
(W) Bolt (M4)
(X) Carburetor
(Y) Carburetor elbow
(Z) Bolt (M5)
