CLUTCH SYSTEM
CS-2510TES
250Ts, 250TCs
41

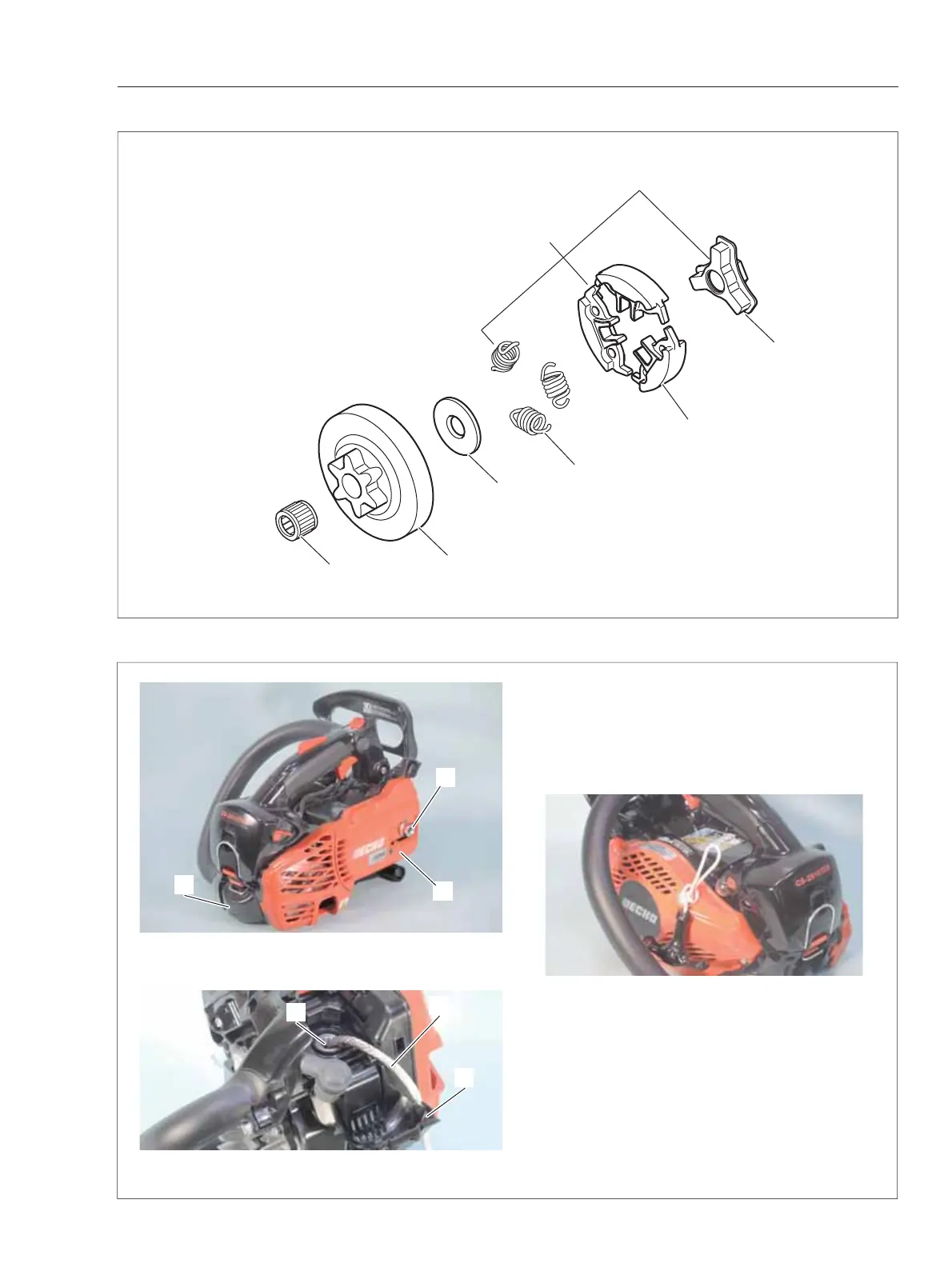

5 CLUTCH SYSTEM
(B)
(A) Clutch assembly
(B) Clutch hub
(C) Clutch shoe
(D) Spring
(E) Clutch plate
(F) Clutch drum
(G) Needle bearing
(C)
(D)
(E)
(F)
(G)
(A)
5-1 Inspecting clutch parts
1. Loosen nut (A) and remove sprocket guard (B).
NOTE:
If starter assembly is installed, pull starter
rope out about 20 cm (8 in), and make a tempo-
rary knot to prevent starter damage when installing
clutch assembly.
2. Open cap cover (C). Disconnect spark plug cap
and remove spark plug.
3. Install clean rope (D) in spark plug hole (E) to
stop crankshaft rotation.
NOTE:
Do not use piston stopper to avoid piston
damage.
A
B
D
C
E
C
