Echo CS-2510TES - 9 Handle and Control System

HANDLE AND CONTROL SYSTEM
CS-2510TES
250Ts, 250TCs
68

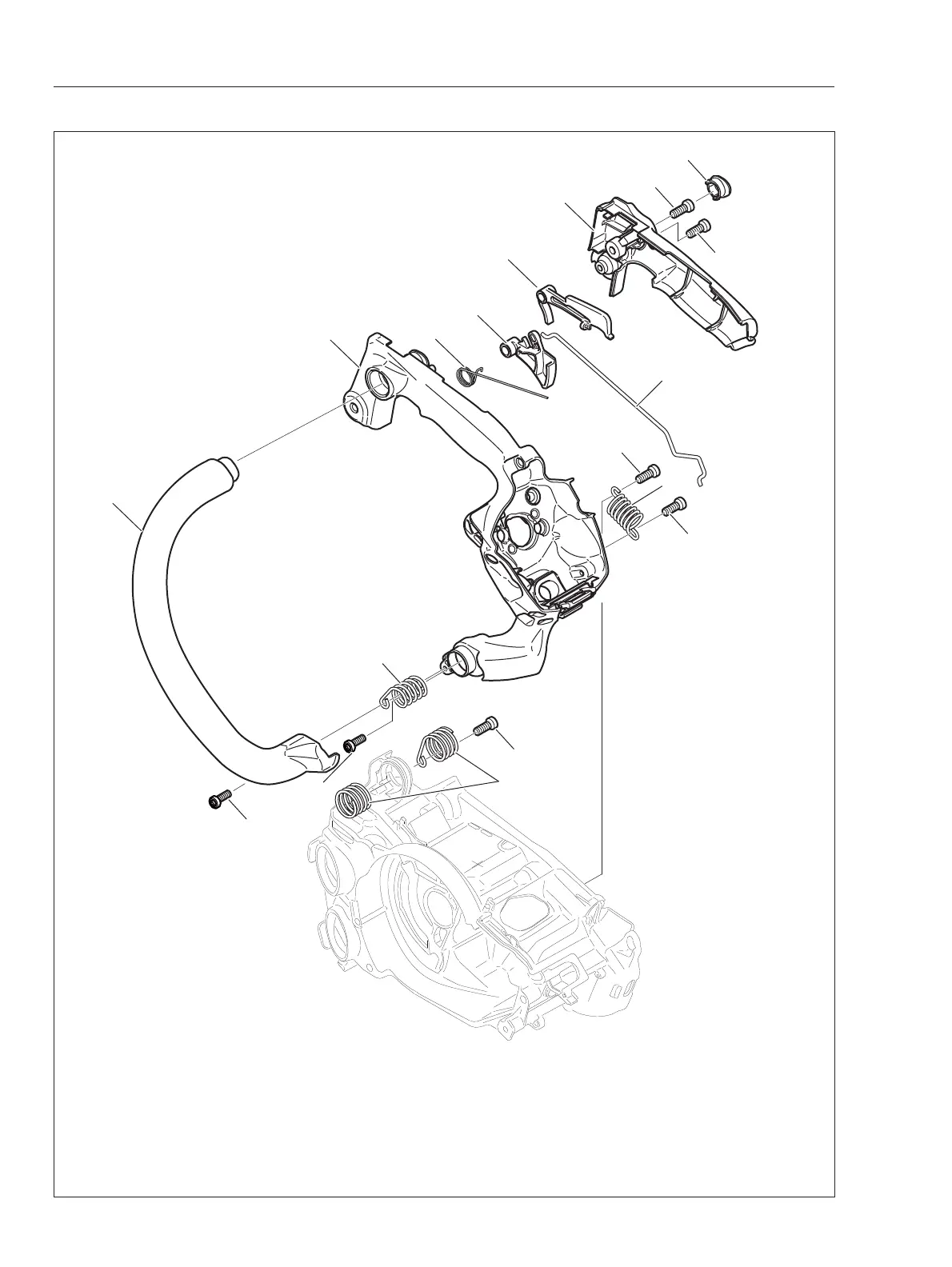

9 HANDLE AND CONTROL SYSTEM
(B)
(A) Front handle
(B) Rear handle
(C) Rear handle lid
(D) Torsion spring
(E) Throttle trigger
(F) Throttle lockout
(G) Throttle rod
(H) Plug
(J) Bolt (M5)
(K) Bolt (M4)
(L) Spring
(M) Bolt (M4)
(N) Bolt (M4)
(P) Spring
(C)
(D)
(E)
(F)
(A)
(G)
(H)
(J)
(K)
(M)
(L)
(N)
(P)
(Q)
(R)
(S)
(T)
(Q) Bolt (M4)
(R) Spring
(S) Bolt (M4)
(T) Bolt (M4)
