FUEL SYSTEM
CS-2510TES
250Ts, 250TCs
31
4-5 Replacing purge bulb
{Removing}
1. Remove air cleaner cover and air fi lter (Refer to
“4-1 Inspecting air fi lter” ).
2. Remove carburetor elbow and carburetor (Refer
to “4-8 Testing carburetor” ).

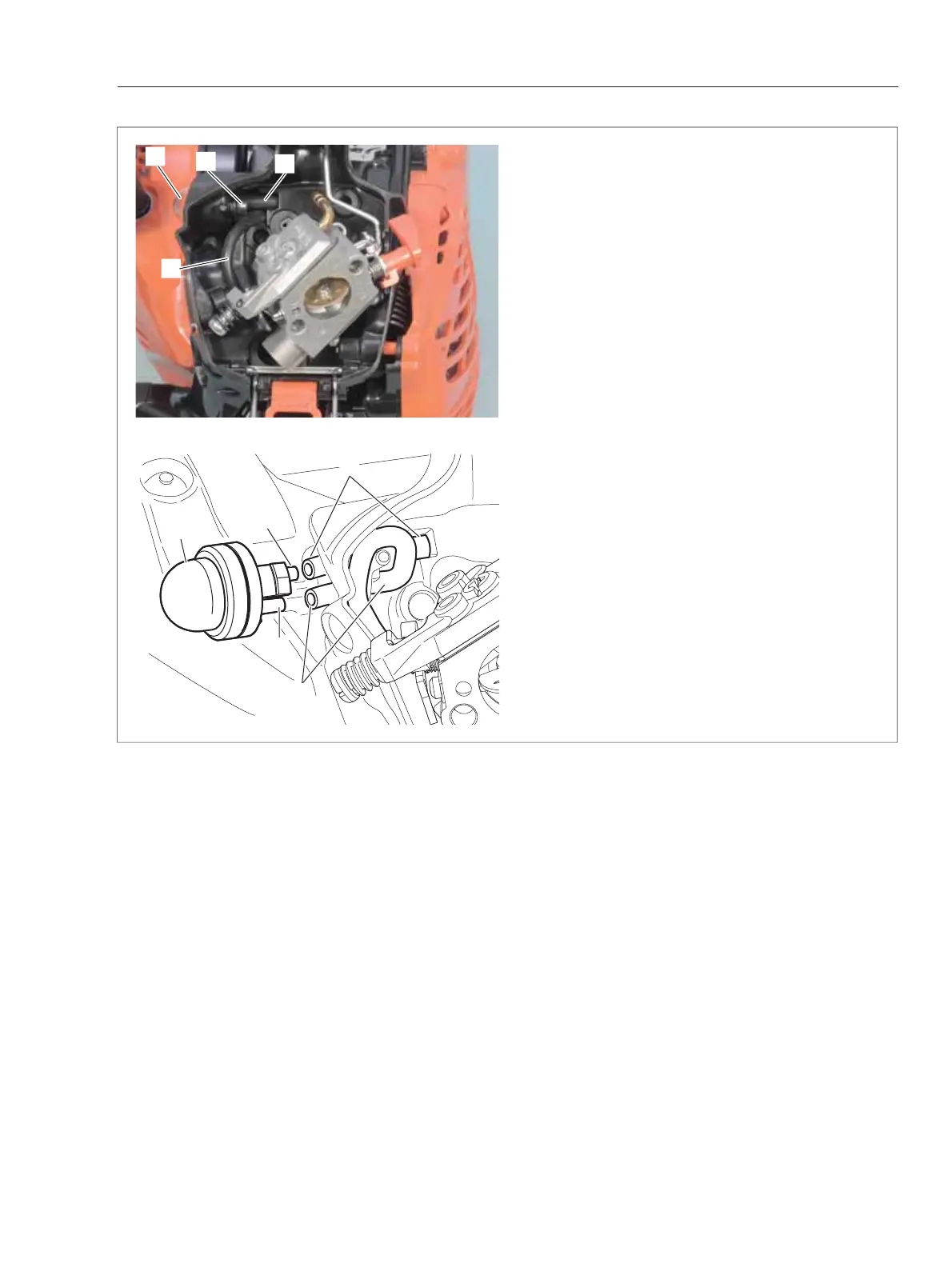

3. Press leg (a1) of purge bulb (A) with screwdriver
to remove purge bulb (A) from rear handle.
4. Disconnect parge line (B) and fuel return line (C)
from purge bulb (A).
{Installing}
5. Connect fuel return line (C) to longer fi tting (a2)
of purge bulb (A). Connect purge line (B) to shorter
fi tting (a3) of purge bulb (A).
6. Push purge bulb (A) into rear handle.
7. Reassemble removed parts (Refer to “4-14 In-
stalling carburetor”).
A
a1
A
C
B
C
a2
a3
B
