FUEL SYSTEM
CS-2510TES
250Ts, 250TCs
26

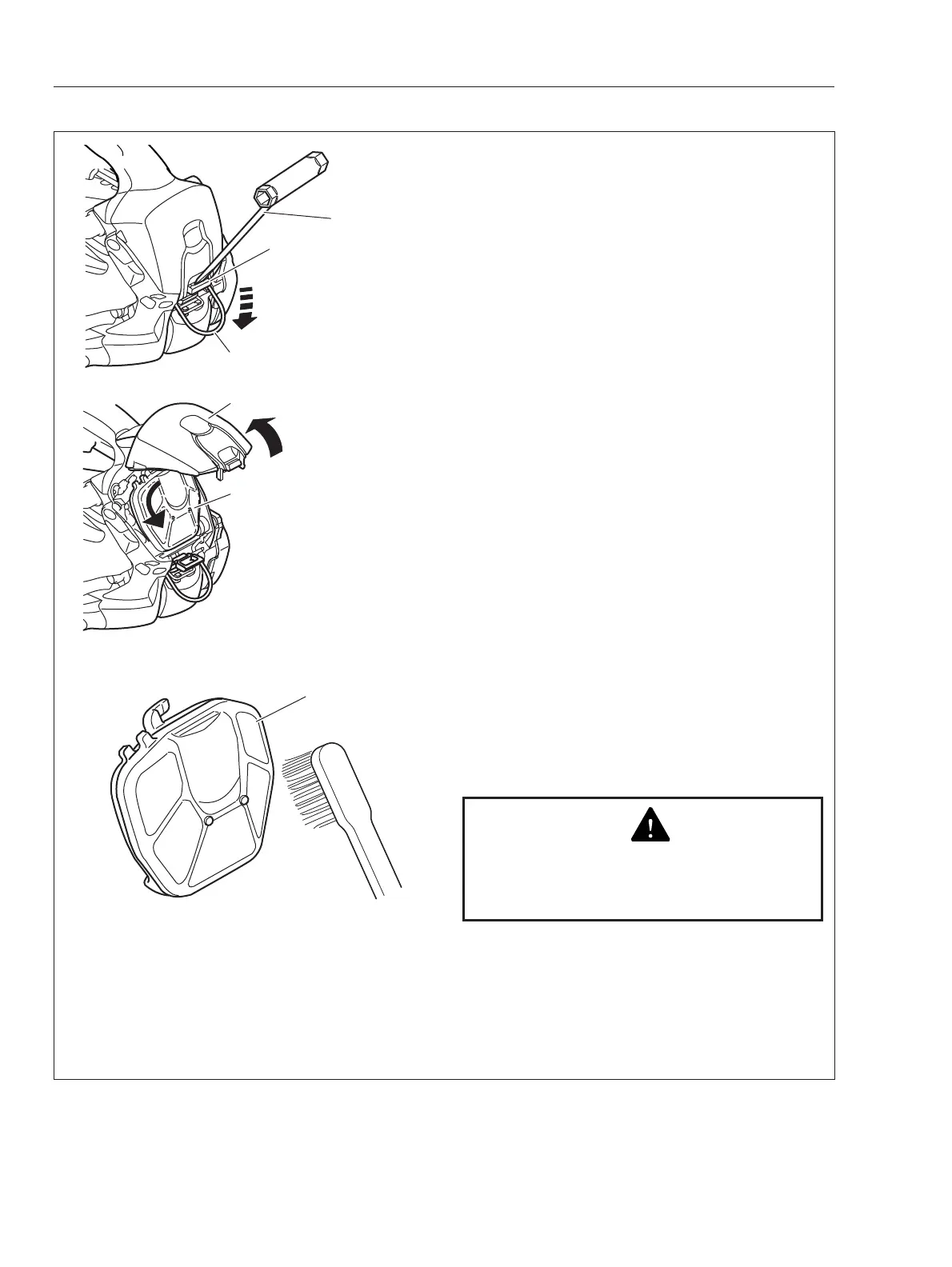

4-1 Inspecting air fi lter
1. Close choke shutter.
2. Turn lifting hook (A) down to the end.
3. Unlatch air cleaner cover latch (B) with screw
driver (C) or equivalent.
4. Turn up and remove air cleaner cover (D).
5. Turn air fi lter (E) counterclockwise and remove
it.
6. Inspect air fi lter (E). If blocked with dirt or dust,
remove the obstruction with using brush.
7. If heavily blocked with dirt or dust, clean air fi lter
with compressed air or wash it in non-infl ammable
solvent.
WARNING DANGER
Wear eye protection when working with
compressed air. Eye damage can occur from
fl ying particles.
8. If heavily blocked with dirt or dust, or if heavily
soiled or damaged, replace with new one.
9. Dry air fi lter (E) completely before installation.
10. Reinstall air fi lter (E) and reassemble air clean-
er cover (D).
