STARTER SYSTEM
CS-2510TES
250Ts, 250TCs
9

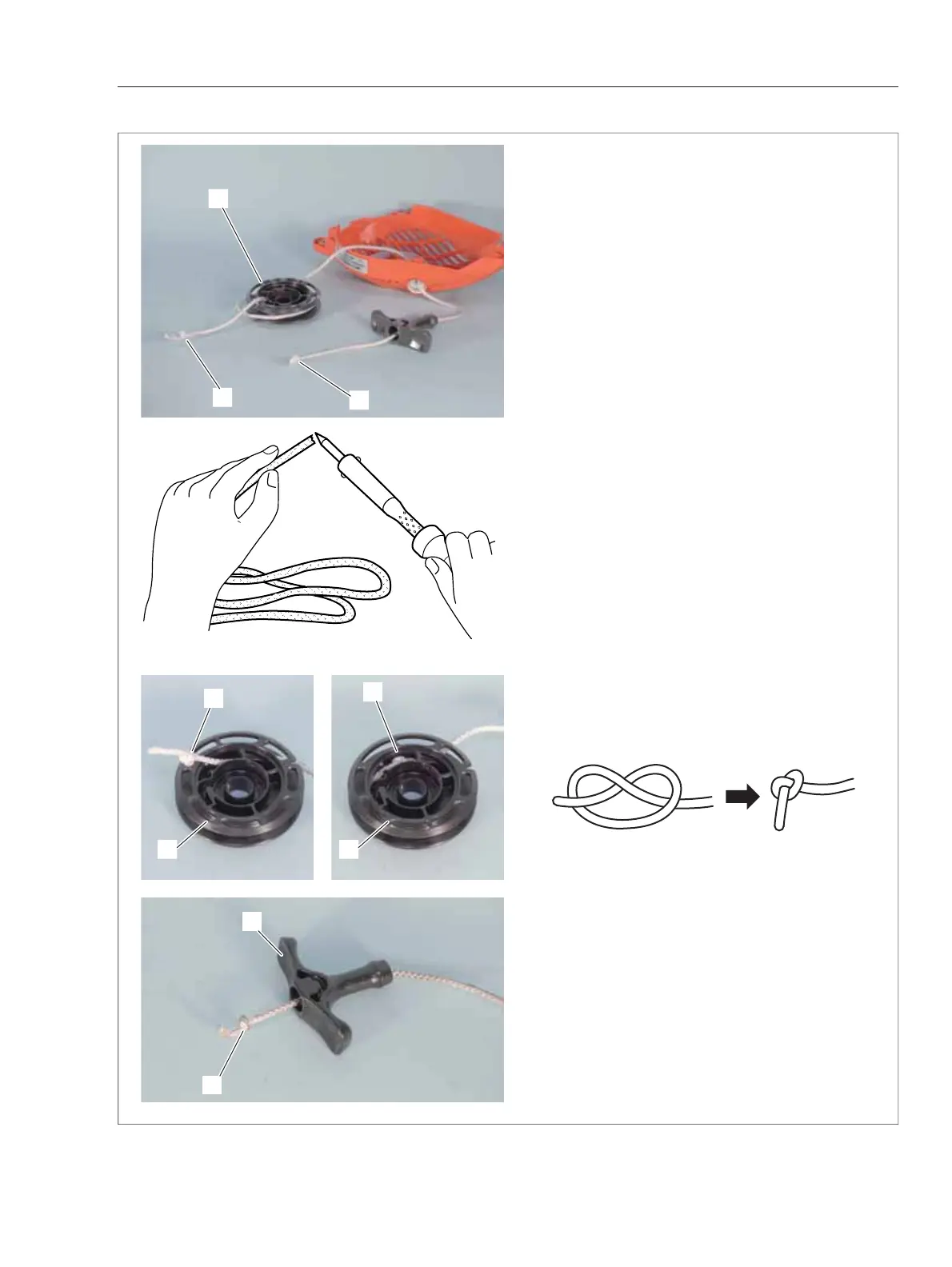

2-2 Replacing starter rope
1. Pull out and untie knot (A).
2. Pull knot (B) to remove rope from rope reel (C).
4. Make a knot (D) at end of starter rope and pass
the rope through hole of rope reel (C), then press
the knot (D) into recess as shown.
3. When installing a new starter rope, singe both
ends of the rope to prevent fraying.
5. Pass the other end of starter rope through start-
er case, from inside to outside.
6. Pass starter rope through starter grip (E). Make
a knot as shown.
7. Tighten knot (F). Push the knot (F) into recess of
starter grip (E).
4K287
A
B
C
D
D
F
C C
E
