CHAIN BRAKE SYSTEM
CS-2510TES
250Ts, 250TCs
46

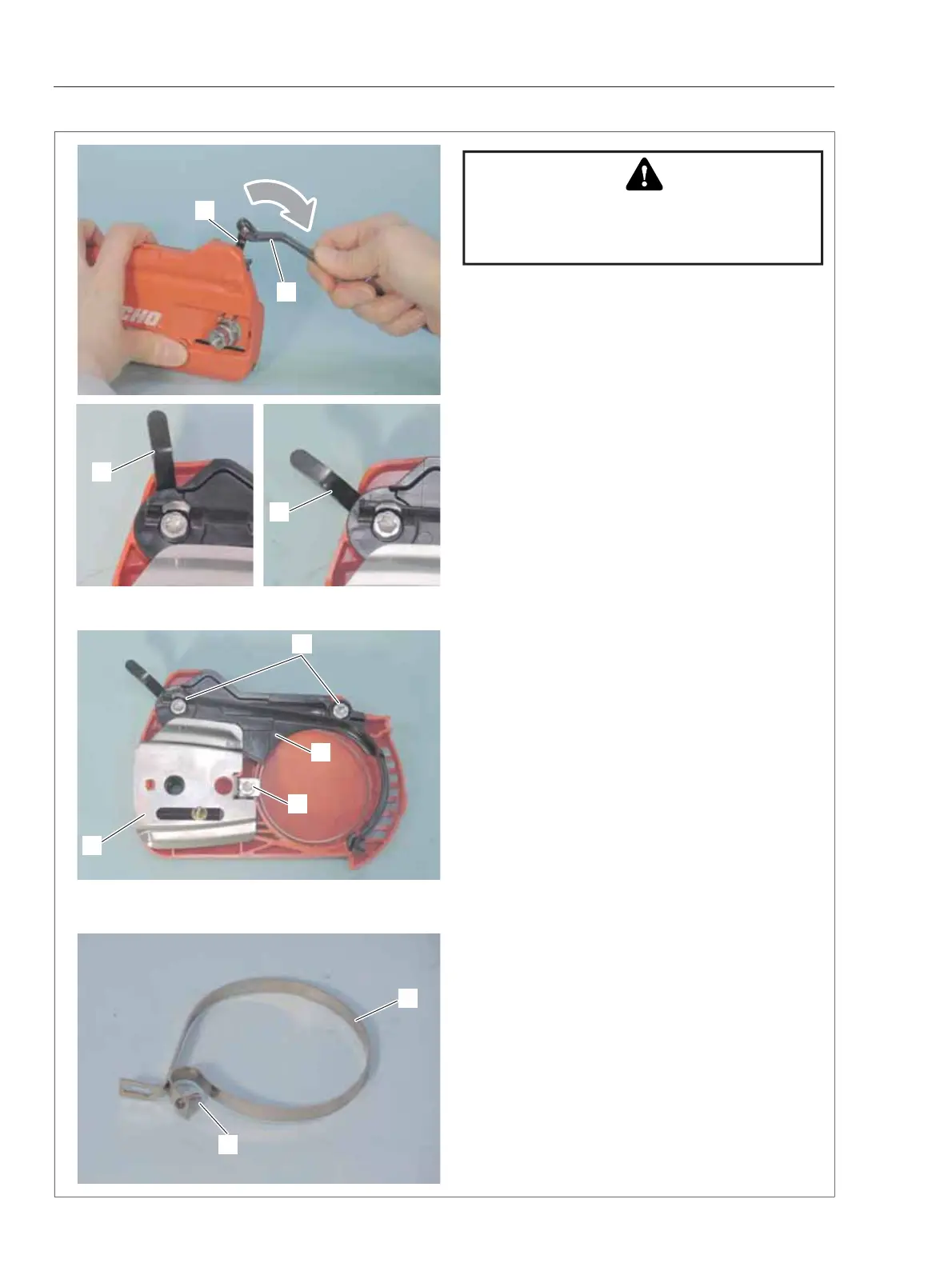

6-2 Inspecting chain brake parts
WARNING DANGER
Wear eye protection and safety gloves when
disassembling or assembling chain brake to
protect eye and hand from injury.
{Disassembling}
1. Remove sprocket guard.
2. Move brake connector (A) with ring wrench (B)
or other suitable tool as shown. And make brake
connector engaging position.
NOTE
: Make sure that brake connector (A) is in
engaging position before removing brake cover (C),
otherwise compression spring may jump out.
3. Remove bolt (D) and sprocket guard plate (E).
4.Loosen two bolts (F) securing brake cover (C)
and remove brake cover (C).
5. If blocked with dirt or dust, clean around brake
parts. And inspect all the brake parts for damage.
Replace with new part(s) as required.
{Assembling}
6. Install pin (G) through hole of brake band (H).
A
B
A
A
Released position Engaging position
D
E
F
C
G
H
To Next Page
