Echo CS-2510TES Service Manual

SERVICE INFORMATION
CS-2510TES
250Ts, 250TCs
6
Key Part Number Description Reference
1 G310-000050 Tachometer PET-304 Measuring engine speed
2 Y089-000094 Carb. tool KIT Adjusting carburetor
3 X645-000031 D-shaped tool (L) Adjusting D
-shaped L / H mixture needle
4 X603-000050 Driver(2.5mm) Adjusting throttlle adjust screw
5 X602-000340 Torx wrench (T27) Removing and installing Torx bolt
6 897800-79931 Spark tester Checking ignition system
7 Y089-000111 Puller Removing magneto rotor and crankcase
8 91004 Module air gap gauge Adjusting pole shoe air gaps
9 897803-30133 Pressure tester Testing carburetor and crankcase leakage
10 897563-19830 Metering lever gauge Measuring metering lever height on Carburetor
11 500-500 Welch plug tool Removing and installing welch plug tool
12 P021-044870 PTO shaft puller Removing plug from auto-oiler assembly
13 91037 Compression gauge Measuring cylinder compression
14 X681-000000 Adapter (M10) Measuring cylinder compression(for 10mm dia. spark plug)
15 897826-16131 Pressure rubber plug Plugging intake port to test crankcase / cylinder leakages
16 897827-16131 Pressure plate Plugging intake port to test crankcase / cylinder leakages
17 91041 Pressure rubber plug Plugging intake port to test crankcase / cylinder leakages
18 A131-000160 Pressure connector(M10) Checking crankcase and cylinder leakages
19 91139 Pressure tester Testing tank vent and crankcase leakages
20 897726-09130 Oil seal tool Installing oil seals
21 897701-14732 Bearing tool Removing and installing crankcase ball bearings
22 897702-30131 Piston pin tool Removing and installing piston pin

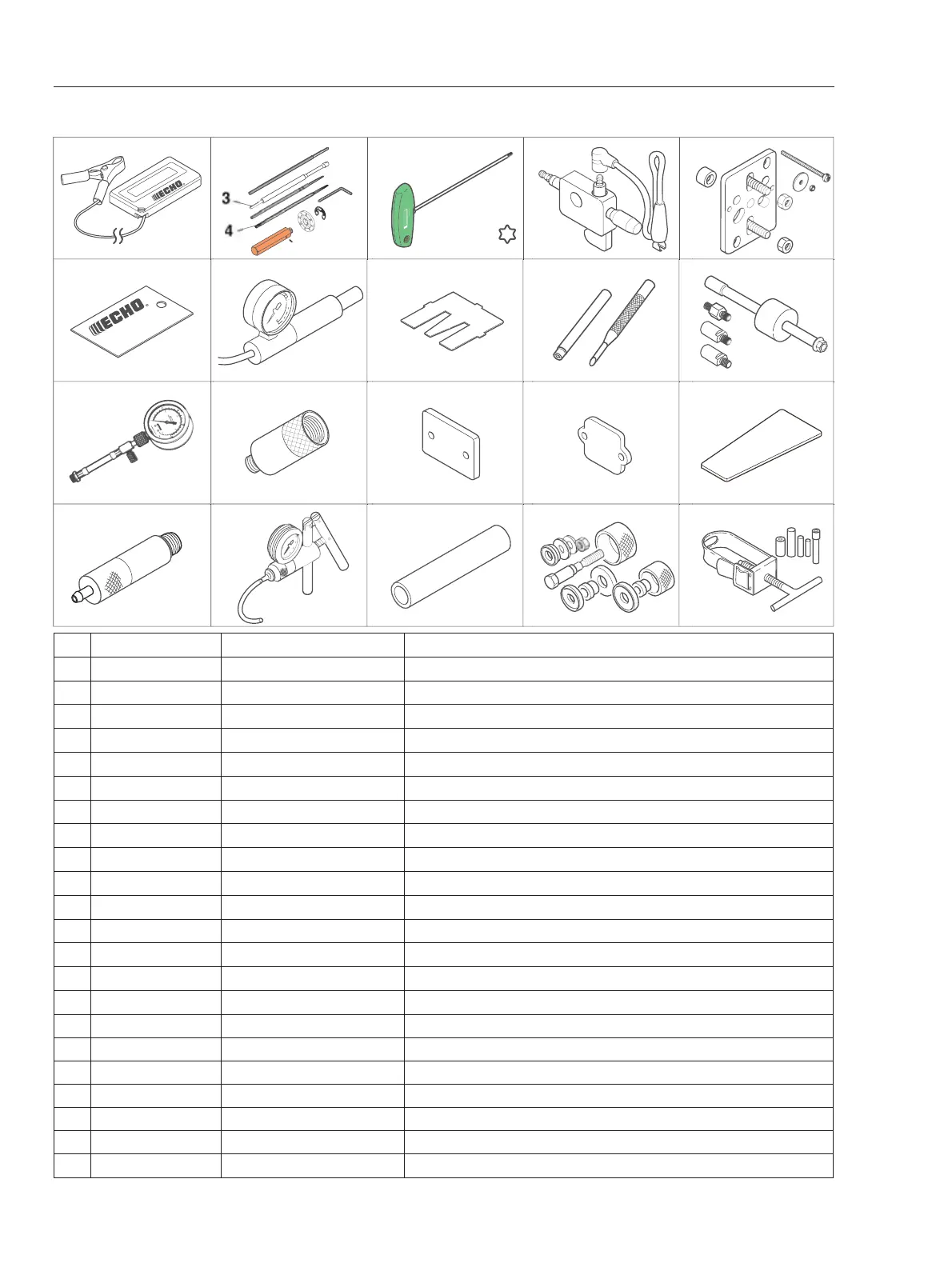

1-6 Special tools
Ignition
Air Gap Gauge
#.014 = .35mm
P/N 91004
1.35
0.4
1.65
1.5
PET-304
Made in Germany
T27x200
4 0 1 0 5 5 7 8 6 9 7 4 5
4 010557 869745
4
0
1
0
5
5
5
7
7
7
8
8
8
6
69
9
7
5
1 25
4
3
6 7
8 9 11 1210
13 14 15 16
18
20 2119
17
22
