Echo CS-2510TES Service Manual

HANDLE AND CONTROL SYSTEM
CS-2510TES
250Ts, 250TCs
71

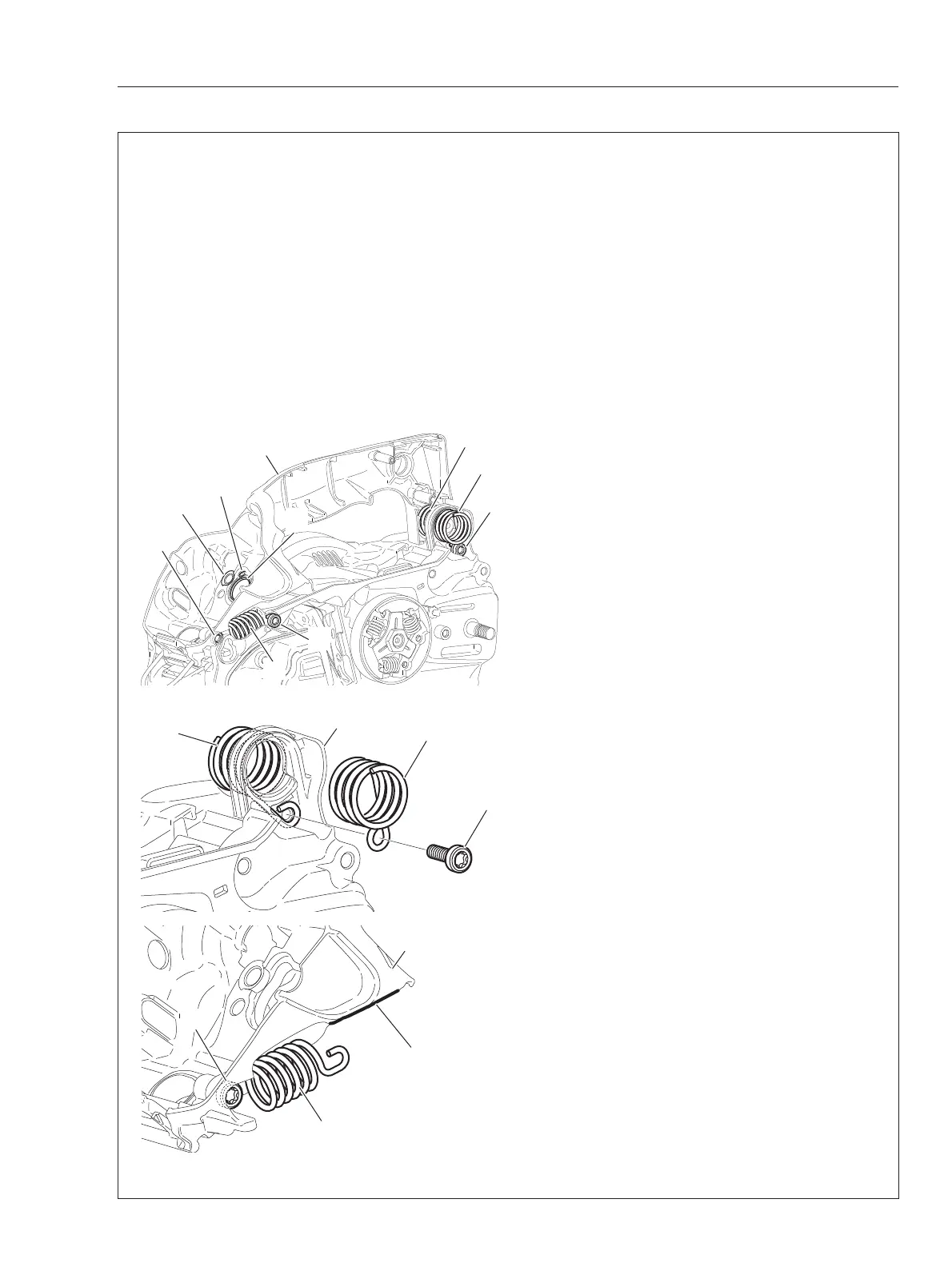

9-3 Replacing rear handle and springs
{Disassembling}
1. Remove starter assembly, sprocket guard, muffler cover, chain catcher, sprocket guard plate, and
brake lever (Refer to “6-1 Replacing brake lever and torsion spring“)
2. Remove rear handle lid and throttle control parts (Refer to “9-1 Replacing throttle control parts”).
3. Remove front handle and spring (Refer to “9-2 Replacing front handle and spring”).
4. Remove air cleaner cover and air fi lter(Refer to “4-1 Inspecting air fi lter” ).
5. Remove carburetor (Refer to “4-8 Testing carburetor”), two plugs (A), collor (B) and (C) inserted intake
bellows.
6. Remove purge bulb and fuel line assembled rear handle (Refer to “4-5 Replacing purge bulb” and “4-6
Replacing fuel line and fuel return line”).
7. Remove bolt (D) and spring (E1).
8. Remove bolt (F)
9. Remove rear handle (G) and spring (E2) from
unit.
10. Remove bolt (H) and spring (J) from rear han-
dle (G)
11. Check rear handle and springs and replace de-
fective part(s) with new one as required.
{Assembling}
12. Install spring (E2) to engine cover (K) as
shown.
13. Install spring (E1) as shown and tighten bolt (D).
NOTE :
Spring (E1) and (E2) are the same.
14. Install spring (J) to rear handle (G) and lightly
tighten bolt (H).
NOTE :
Make sure spring (J) is installed parallel to
line (g1) of rear handle (G).
A
D
E1
E2
F
G
H
J
D
E1
E2
K
C
B
J
H
g1
G
